131

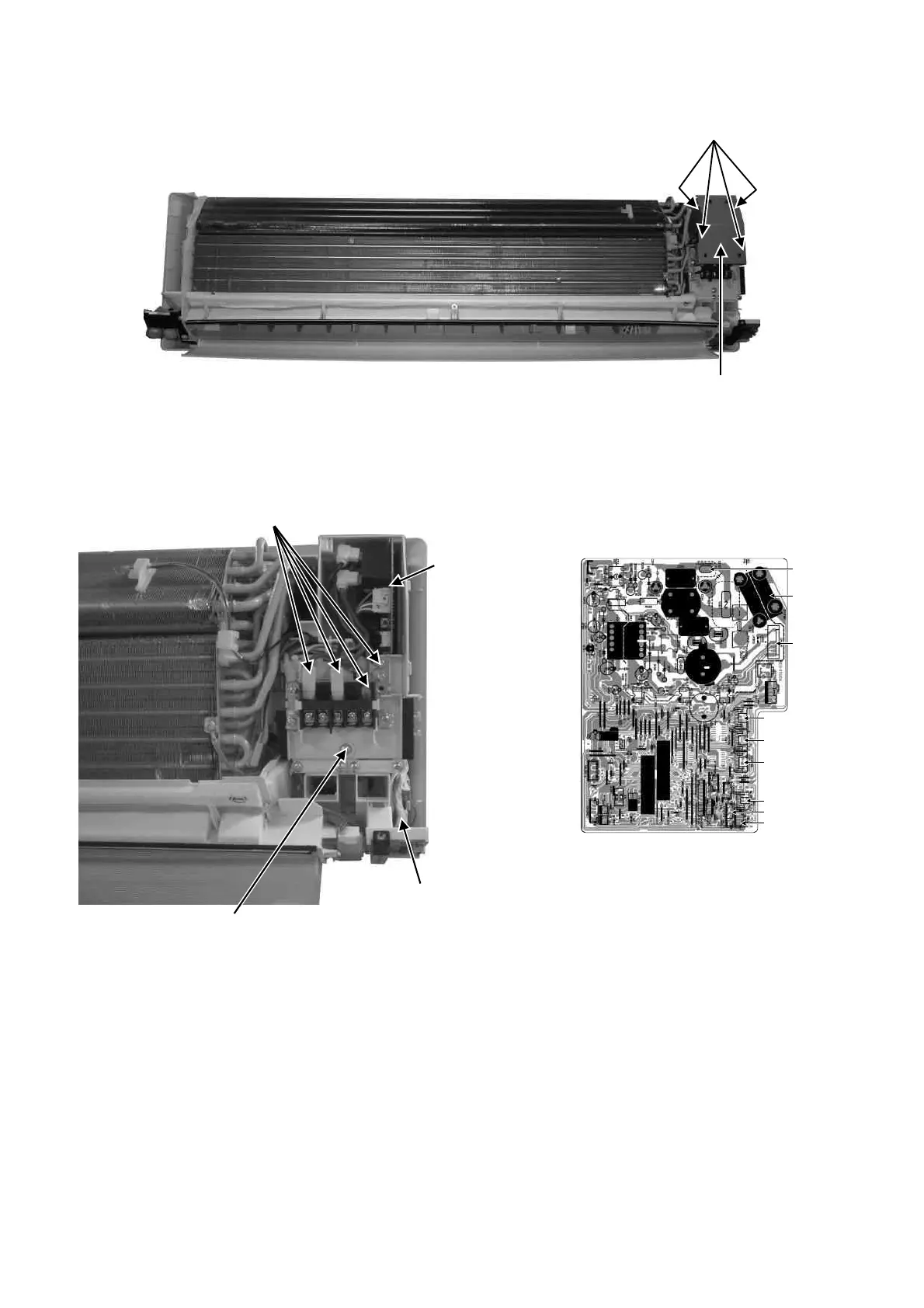

16.2.1.3 To Remove Electronic Controller
Figure 2
For CS-S18/24TKV
Figure 3 Figure 4
4. Remove control board
cover by releasing 4 hooks.
4 Hooks (Left and
right hand side)
CN-FM
RY-PWR
Connector
(Black and Brown)
AC303
(WHT)
CN-STM1
CN-STM2
CN-STM3
CN-CLN
CN-TH
CN-MSENS
9. Detach all connectors as labelled from the
electronic controller. Then pull out the
electronic controller gently.
6. Detach CN-DISP and CN-RCV
connectors from indicator complete.
5. Detach the ter
inal wire (Brown), ter
inal wire (Black),
terminal wire (Red) and earth wire screw.
7. Remove screw to remove
terminal board complete.
8. Pull out the
electronic
controller halfway.
To Next Page
