For CS-S28TKV

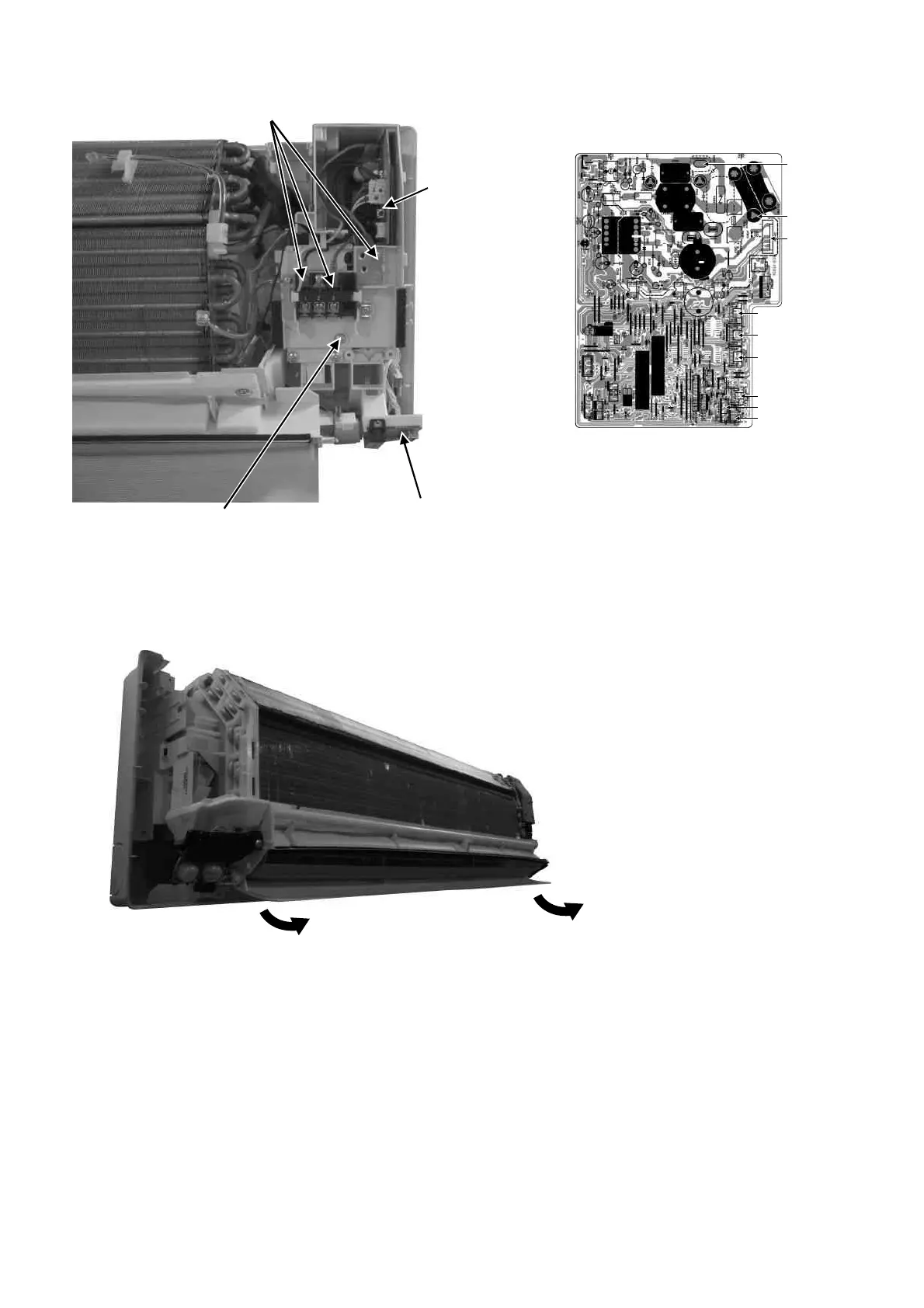

Figure 3a Figure 4a
16.2.1.4 To Remove Discharge Grille
Figure 5
CN-FM
AC306
(BLK)
AC303
(WHT)
CN-STM1
CN-STM2
CN-STM3
CN-CLN
CN-TH
CN-MSENS
9a. Detach all connectors as labelled from the
electronic controller. Then pull out the
electronic controller gently.
6a. Detach CN-DISP and CN-RCV
connector from receiver and indicator
complete.
5a. Detach the ter
m
inal wire (Black), ter
m
inal wire (Red) and
earth wire screw.
7a. Remove screw to remove
terminal complete.
8a. Pull out the
electronic
controller halfway.
11. Then pull the discharge grille
downward gently to dismantle it.
10. Pull out and remove the drain hose
from the discharge grille.
