73

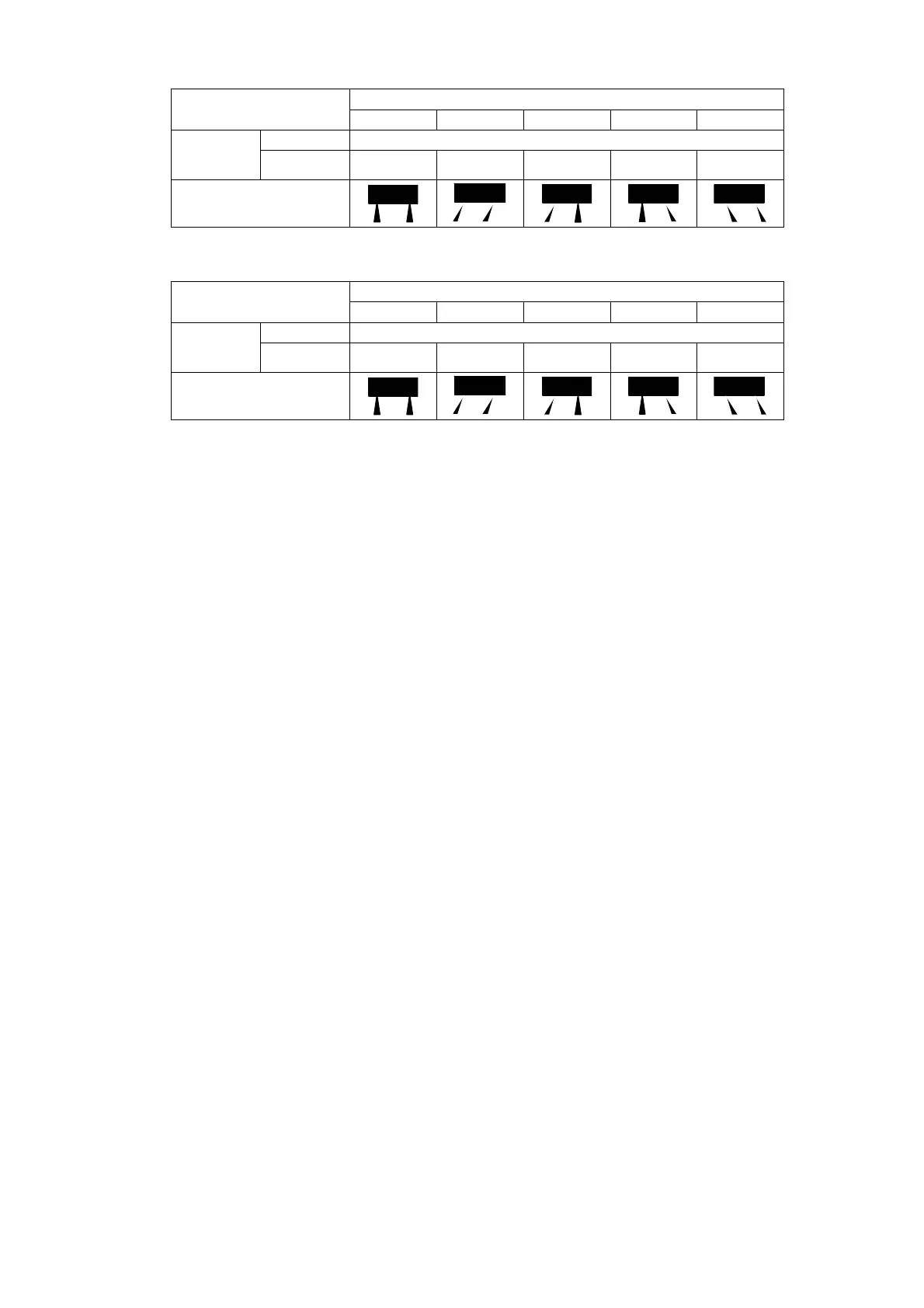

CS-S9/12TKV
Operation
Left and Right Vane
1 2 3 4 5
Cooling, Dry
Automatic (Wind direction 2 to 5)
Manual
operation
90° 65° 77.5° 102.5° 115°
Wind direction position image
CS-S18/24/28TKV
Operation
Left and Right Vane
1 2 3 4 5
Cooling, Dry
Automatic (Wind direction 2 to 5)
Manual
operation
90° 70° 80° 100° 110°
Wind direction position image
* The vertical vane angle tolerance is within +/- 5 degree.
12.5 Quiet Operation (Cooling Mode/Cooling Area of Dry Mode)
 Purpose
o To provide quiet cooling operation compare to normal operation.
 Control condition
o Quiet operation start condition
 When Quiet button at remote control is pressed.
o Quiet operation stop condition
 When one of the following conditions is satisfied, quiet operation stops:
 ECONAVI button is pressed.
 iAUTO-X button is pressed.
 Sleep mode timer delay OFF.
 Stop by OFF/ON button.
 OFF Timer activates.
 Quiet button is pressed again.
 When quiet operation is stopped, operation is shifted to normal operation with previous setting.
 When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.
 When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.
 During quiet operation, if ON timer activates, quiet operation maintains.
 After off, when on back, quiet operation is not memorized.
 Control content
o Fan speed is changed from normal setting to quiet setting of respective fan speed.
o Fan speed for quiet operation is reduced from setting fan speed.
