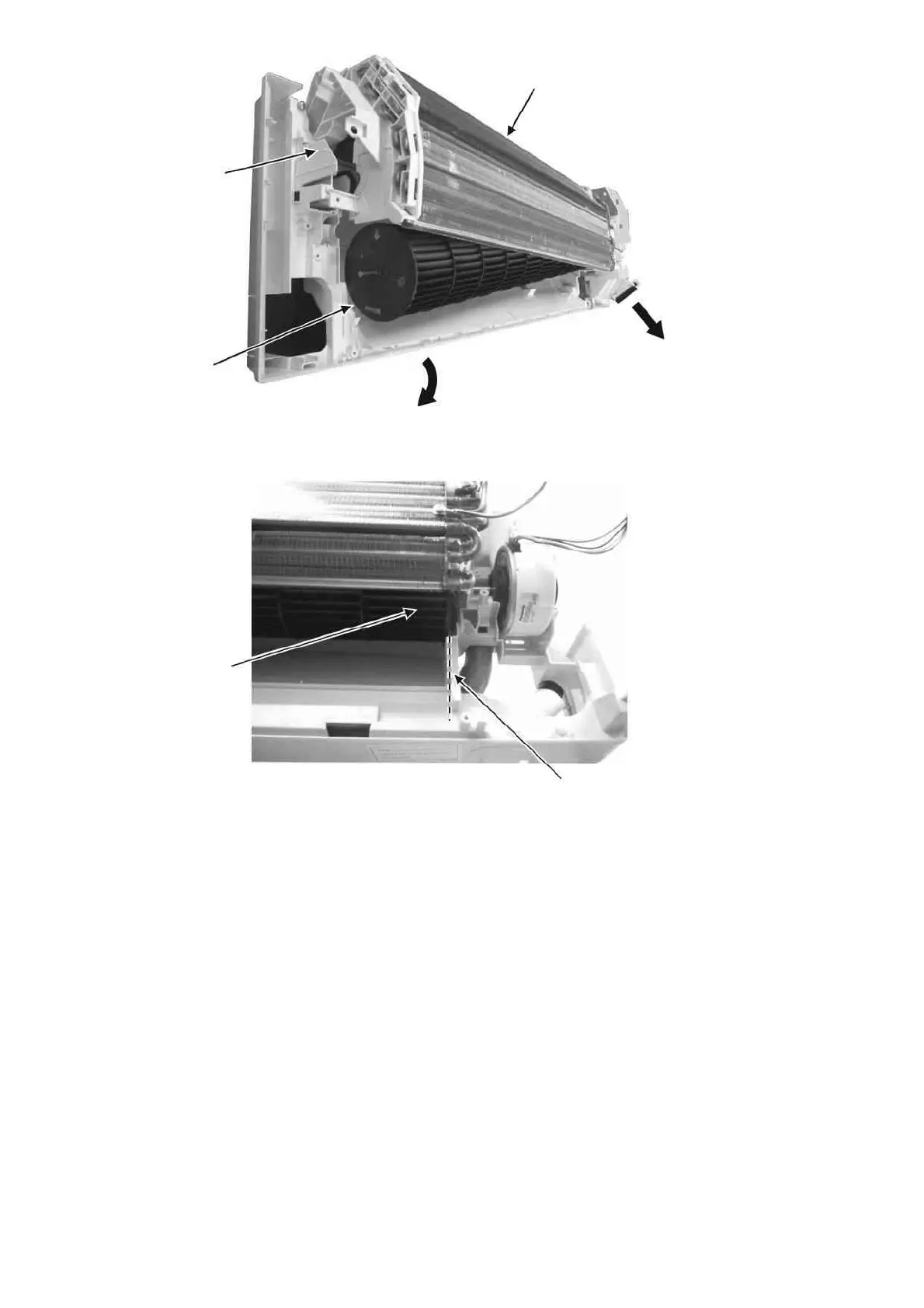

Figure 9
Figure 10
Evaporator
16. Push the holdfast to
the left and lift up the
evaporator.
17. Remove the cross flow fan from the
unit by pulling it to the left and downward.
Cross flow fan
18. Fan motor can be removed after
the removal of the cross flow fan.
Reminder: To reinstall the fan motor, adjust
the fan motor connector to 90° towards you
before fixing control board.
Cross Flow Fan
Reminder: To reinstall the cross flow
fan, ensure cross flow fan is in line as
shown in figure 10.
