Panasonic CS-S18TKV Service Manual

139

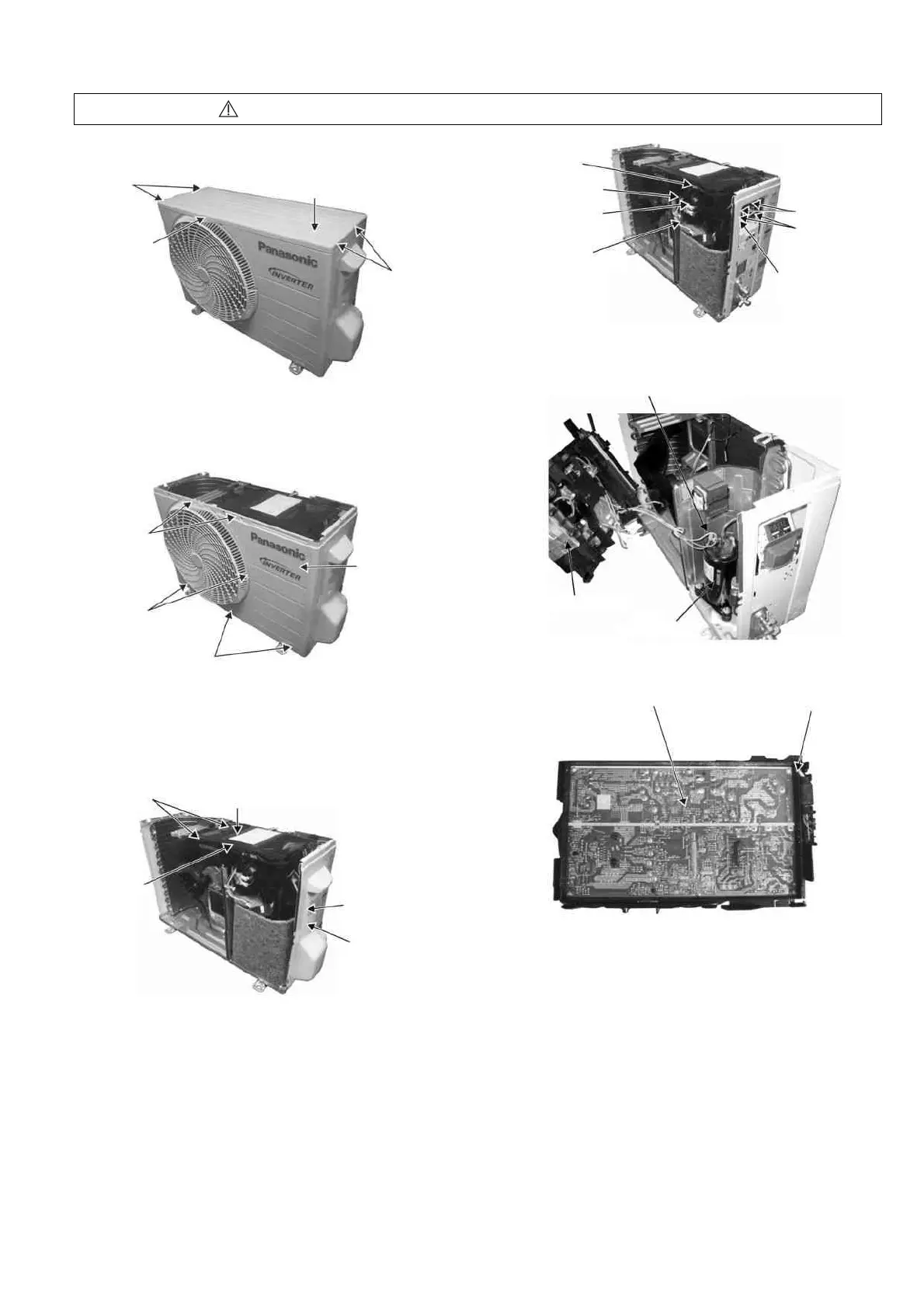

16.3.2 CU-S12TKV
Caution! When handling electronic controller, be careful of electrostatic discharge.
1. Remove 5 screws of the Top Panel.
Fig.1
2. Remove the 6 screws of the Front Panel.
Fig.2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 2
hooks.
Fig.3
Fig.4
Fig.5
Fig.6
Screw
s
Screws
Screw
Top Panel
Screws
Screws
Screws
Front Panel
Hooks
Control Board
Terminal Board Cove
r
Top Cover
Screw
Remove 2 screws
Remove
3 earth wire
Remove earth wire
Remove
2 connectors
from reactor
Remove
1screw
Remove 4 connectors
from electronic
controller
Remove 7 connectors
from terminal board
Remove the Terminal Cover
and 3 Terminal Compressor
Control Board
Compressor
Electronic Controller
Control Board
