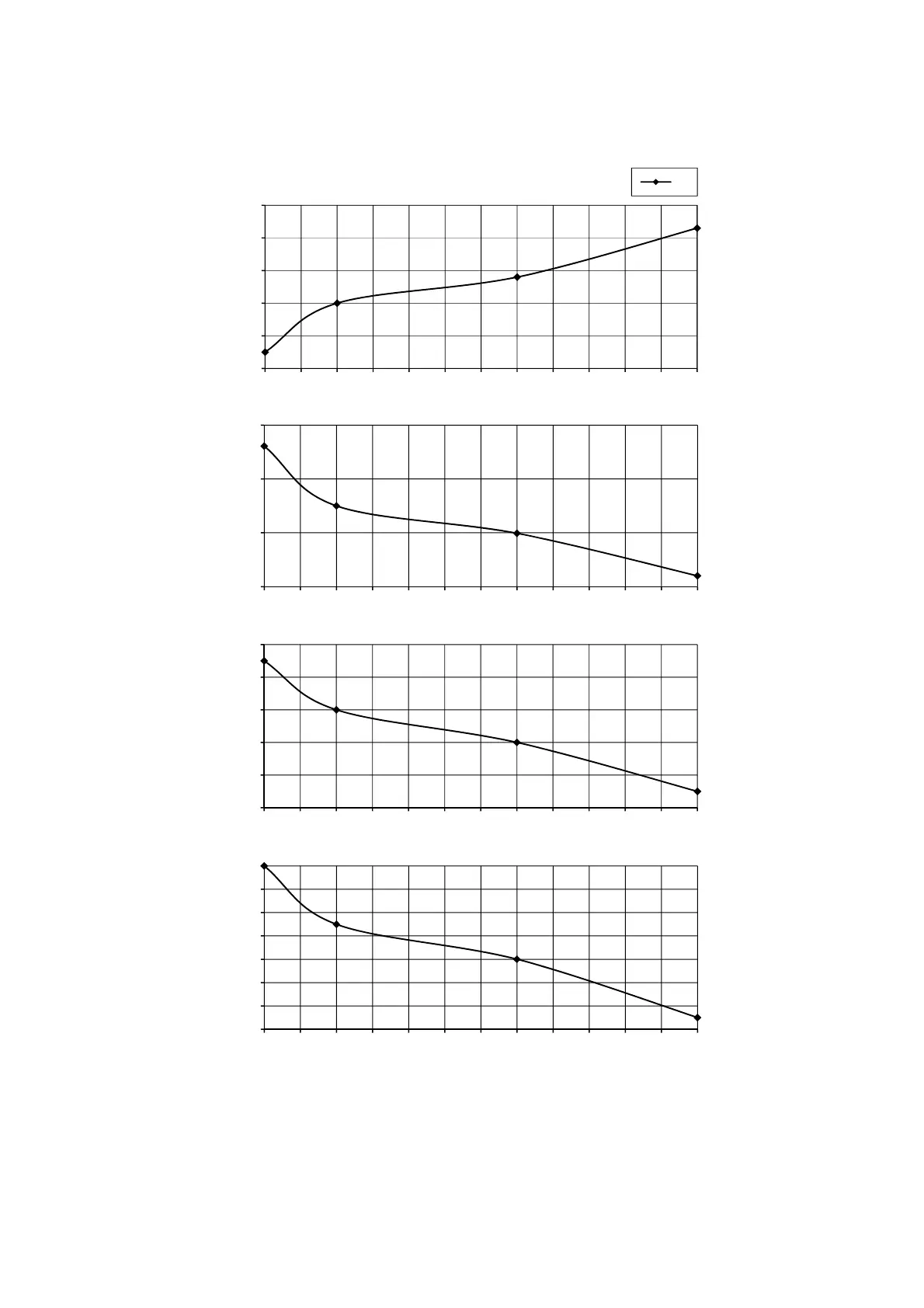

 Piping Length Characteristic
o Room temperature: 27°C (DBT), 19°C (WBT)
o Outdoor temperature: 35°C (DBT), 24°C (WBT)
o Operation condition: High fan speed
o Compressor Frequency = Fc
14.400
14.500
14.600
14.700
14.800
14.900
3 4 5 6 7 8 9 10 11 12 13 14 15
Indoor Discharge
Air Temperature (°C)
Piping Length (m)
220
2.500
2.600
2.700
2.800
3 4 5 6 7 8 9 101112131415
Cooling
Capacity (kW)
Piping Length (m)
3.340
3.360
3.380
3.400
3.420
3.440
3456789101112131415
Current
(A)
Piping Length (m)
1.020
1.022
1.024
1.026
1.028
1.030
1.032
1.034
3 4 5 6 7 8 9 101112131415
Gas Side Piping
Pressure (MPa)
Piping Length (m)
