Panasonic CS-S18TKV Service Manual

150

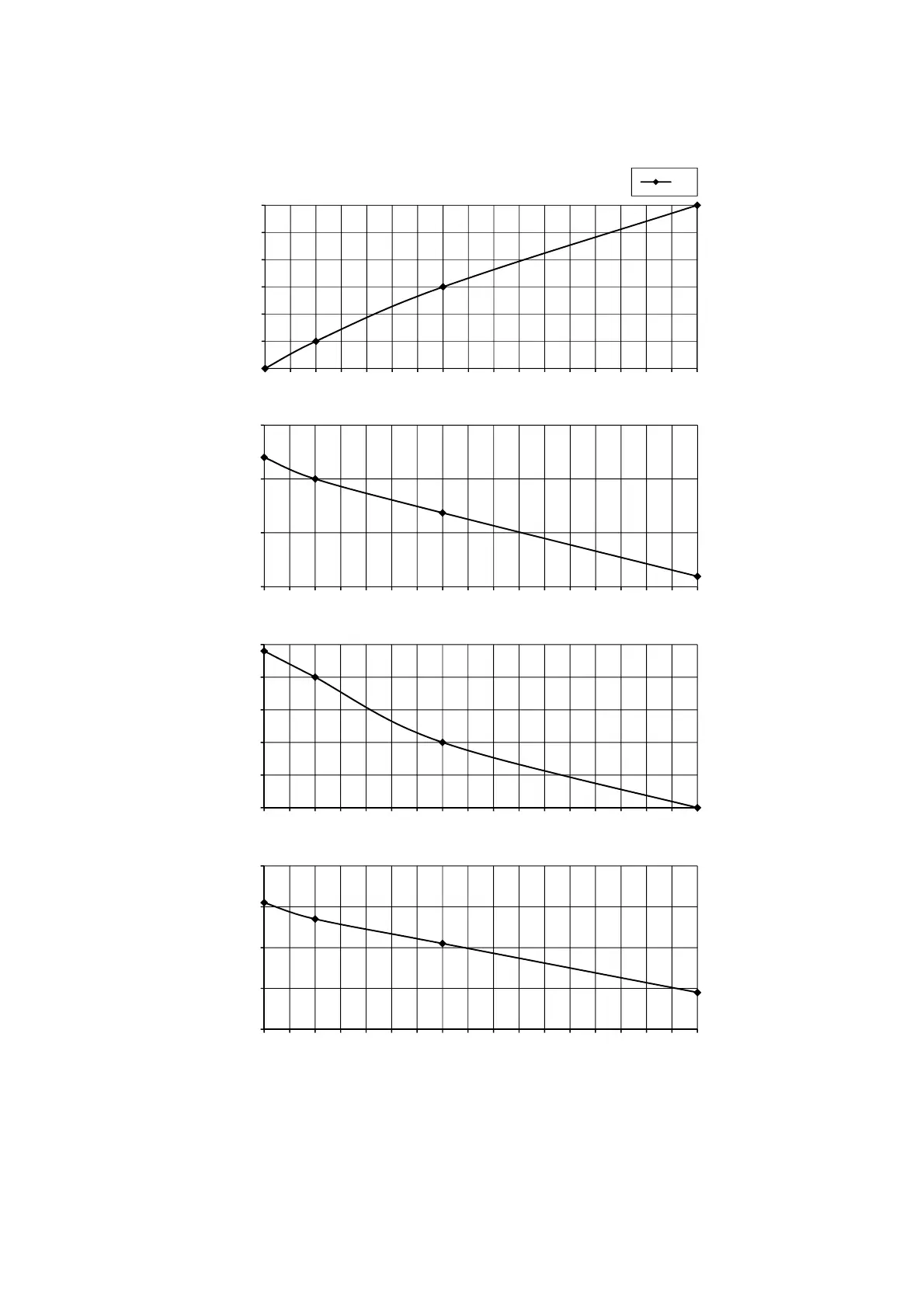

 Piping Length Characteristic
o Room temperature: 27°C (DBT), 19°C (WBT)
o Outdoor temperature: 35°C (DBT), 24°C (WBT)
o Operation condition: High fan speed
o Compressor Frequency = Fc
14.700
14.800
14.900
15.000
15.100
15.200
15.300
34567891011121314151617181920
Indoor Discharge
Air Temperature (°C)
Piping Length (m)
220
5.800
5.900
6.000
6.100
3 4 5 6 7 8 9 1011121314151617181920
Cooling
Capacity (kW)
Piping Length (m)
7.300
7.400
7.500
7.600
7.700
7.800
3 4 5 6 7 8 9 1011121314151617181920
Current
(A)
Piping Length (m)
0.900
0.910
0.920
0.930
0.940
3 4 5 6 7 8 9 1011121314151617181920
Gas Side Piping
Pressure (MPa)
Piping Length (m)
