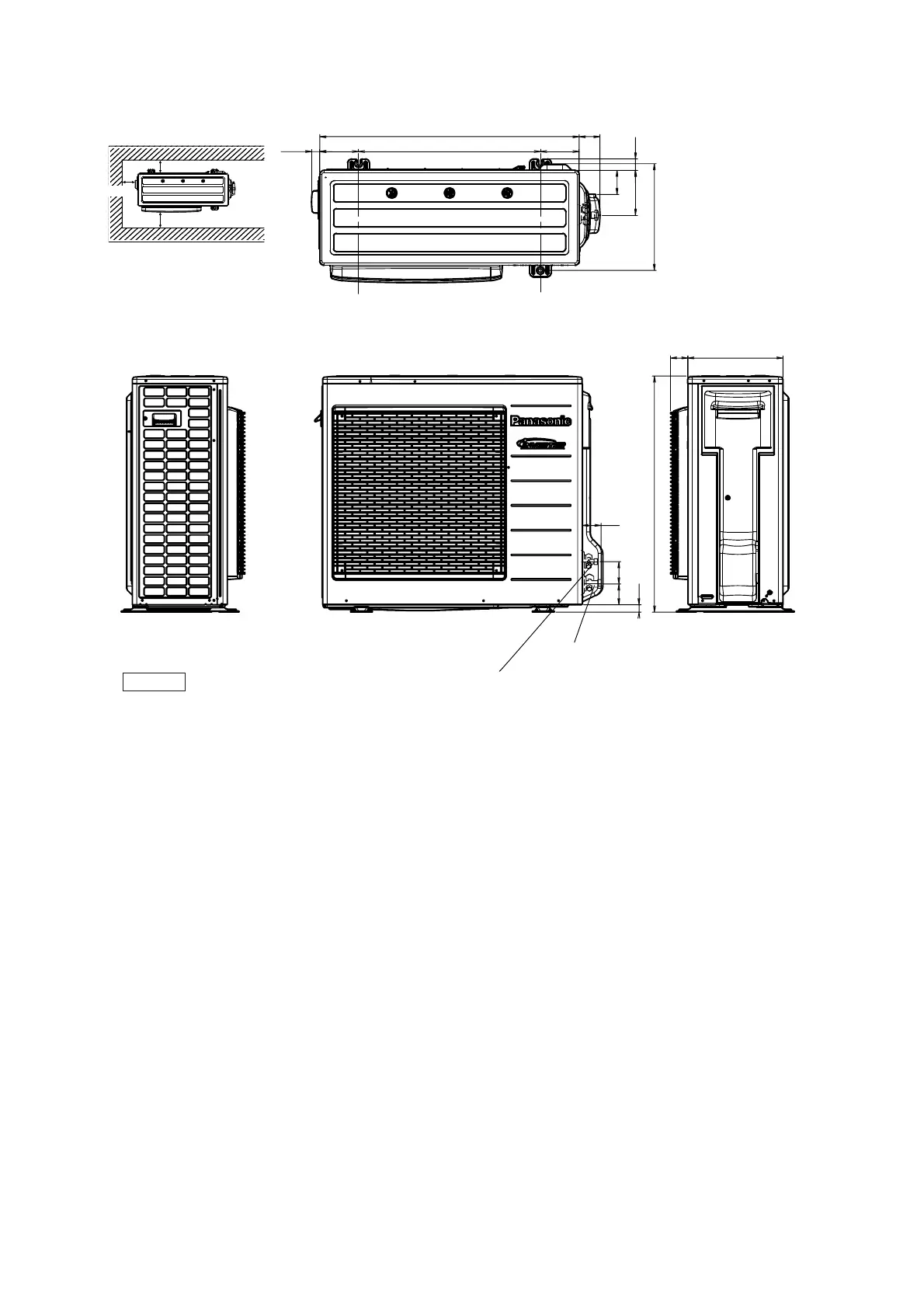

4.2.5 CU-S28TKV
<Top View>
<Front View><Side View>
<Side View>
Unit : mm
Anchor Bolt Pitch
360.5 × 613
Space necessary for
installation
100 mm
100 mm
1000 mm
25
70 75
64
795
32059
875
27.5
38
82
70
360.5
613 131131
152
2-way valve at Liquid side
(High Pressure)
3-way valve at Gas side
(Low Pressure)
