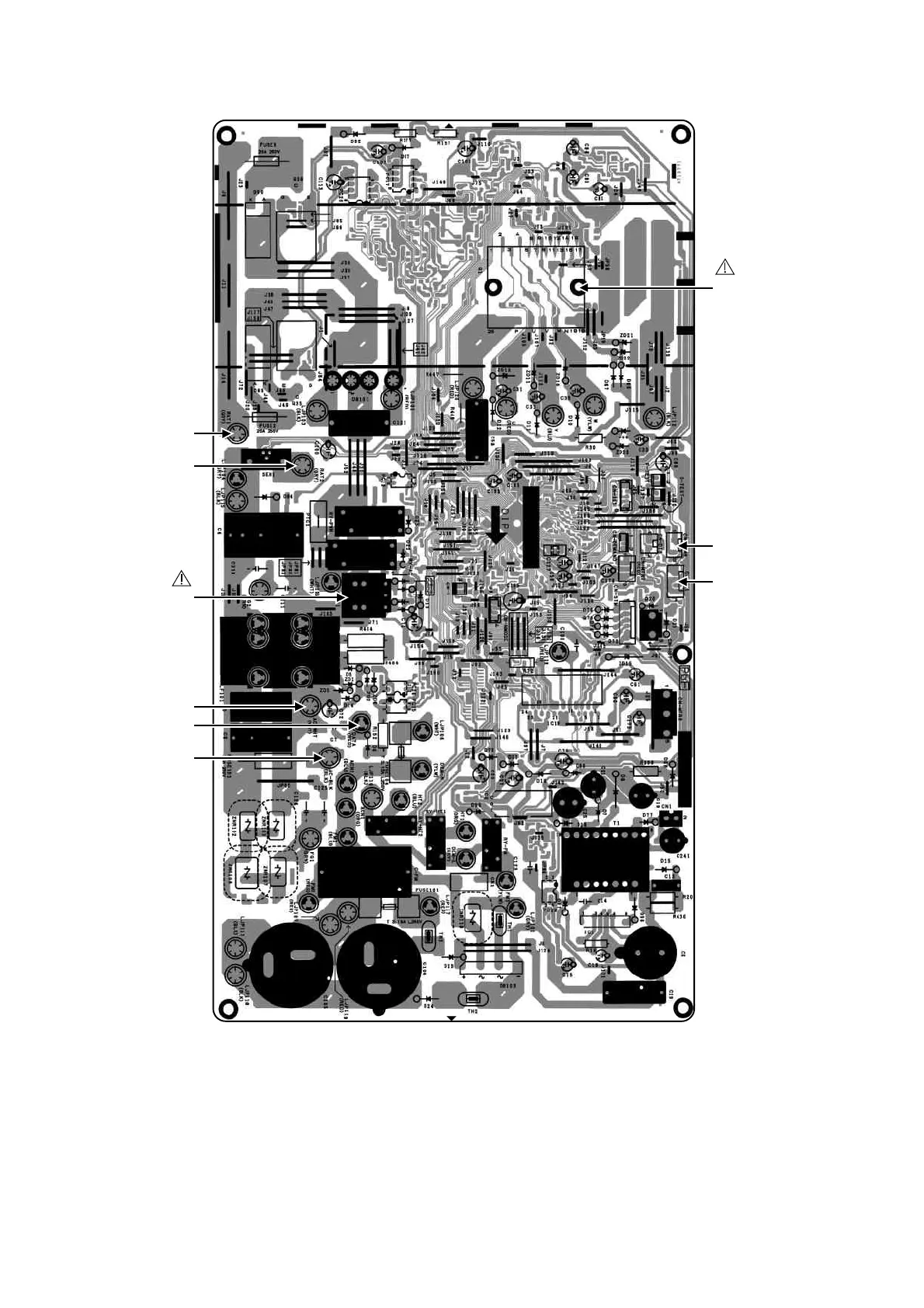

9.2.1.3 CU-S18TKV
POWER
TRANSISTOR
(IPM)
CN-TANK
CN-TH1
CURRENT
TRANSFORMER
(CT)
AC-WHT
RAT2
RAT1
AC-BLK
DATA
