Panasonic CS-S18TKV Service Manual

67

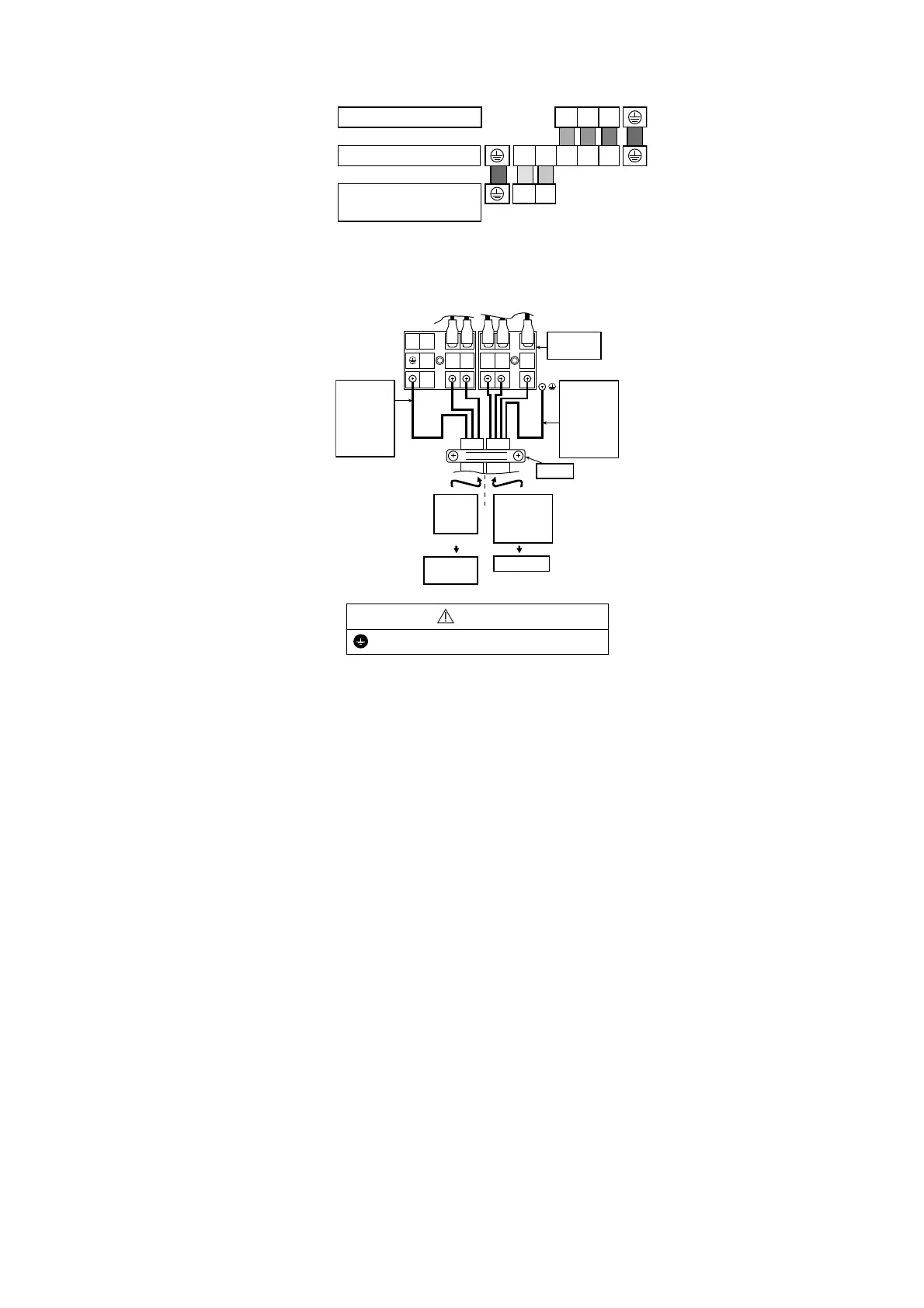

4 Connect the power supply cord and connection cable between indoor unit and outdoor unit according to the
diagram below.
5 Secure the power supply cord and connection cable onto the control board with the holder.
6 Attach the control board cover back to the original position with screw.
7 For wire stripping and connection requirement, refer to instruction 11.2.4.1 of indoor unit.
WARNING
This equipment must be properly earthed.
 Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.
 Earth wire shall be Yellow/Green (Y/G) in colour and longer than the other AC wires for safety reason
11.3.5 Piping Insulation
1 Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation
Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.
2 If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by
using POLY-E FOAM with thickness 6 mm or above.
Terminals on the isolating
devices
(Disconnecting means)
Terminals on the indoor unit
Colour of wires (connection cable)
Terminals on the outdoor unit
(Power supply cord)
(L) (N)
123
LN123
LN 12
3
Indoor unit
Isolating
Devices
Indoor &
outdoor
connection
cable
Te r mi na l
Board
Earth wire
longer than
others
AC wires
for safety
reason
Earth wire
longer than
others
AC wires
for safety
reason
Holder
Power
supply
cord
