144

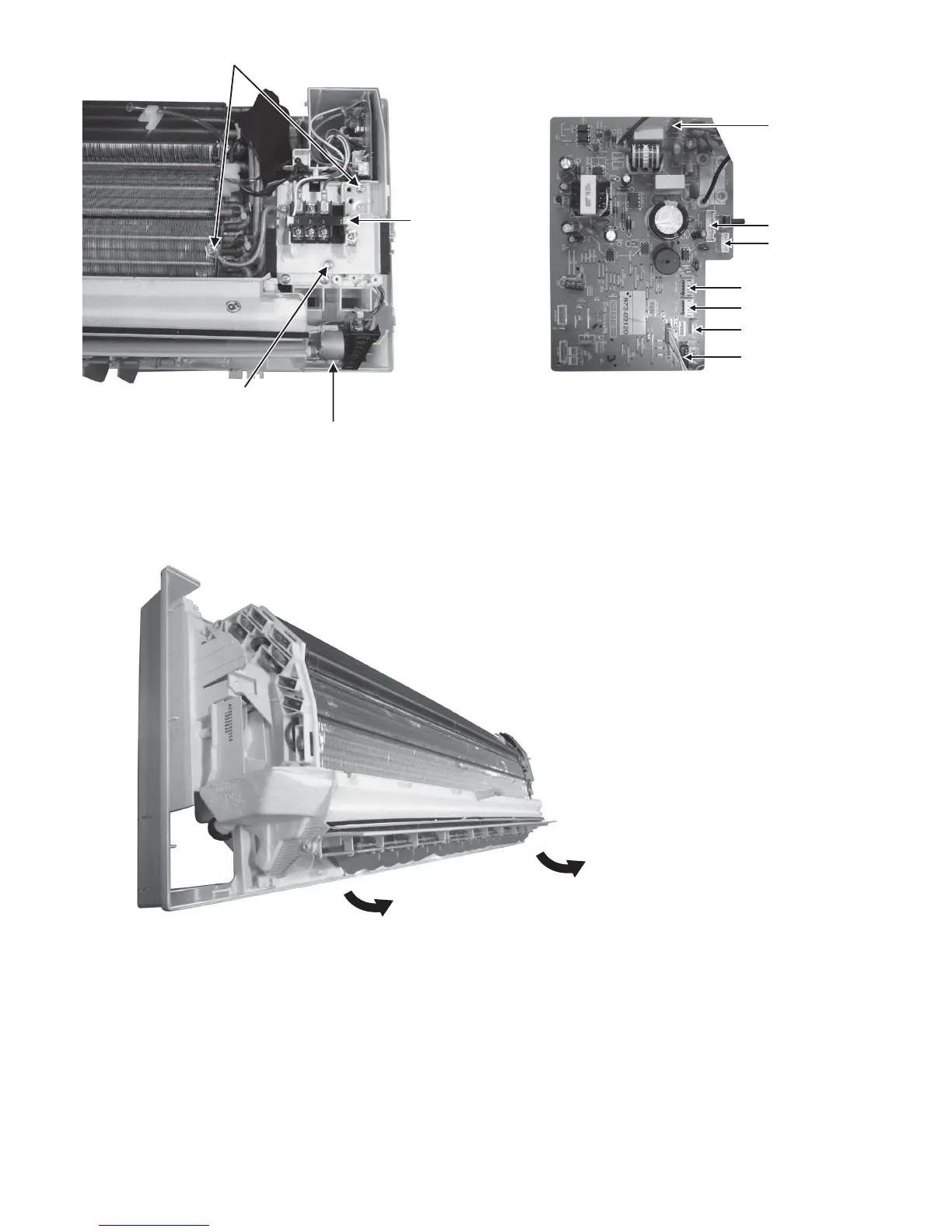

5. Detach lead wires
AC306 (Black),
and AC304 (Red)
from the terminal
board.
9. Detach all connectors as labelled from the
electronic controller. Then pull out the
electronic controller gently.
6. Detach CN-DISP connectors
from indicator complete.
7. Remove earth wires.
8. Remove screw to remove
the terminal board complete.
CN-FM
CN-CNT
AC303 (WHT)
CN-TH
CN-STM1
CN-STM2
CN-RMT
Figure 3 Figure 4
19.2.1.3 To Remove Discharge Grille
11. Then pull the discharge grille
downward gently to dismantle it.
10. Pull out and remove the drain hose
from the discharge grille.
Figure 5
To Next Page
