Panasonic CS-TZ9SKEW Service Manual

37

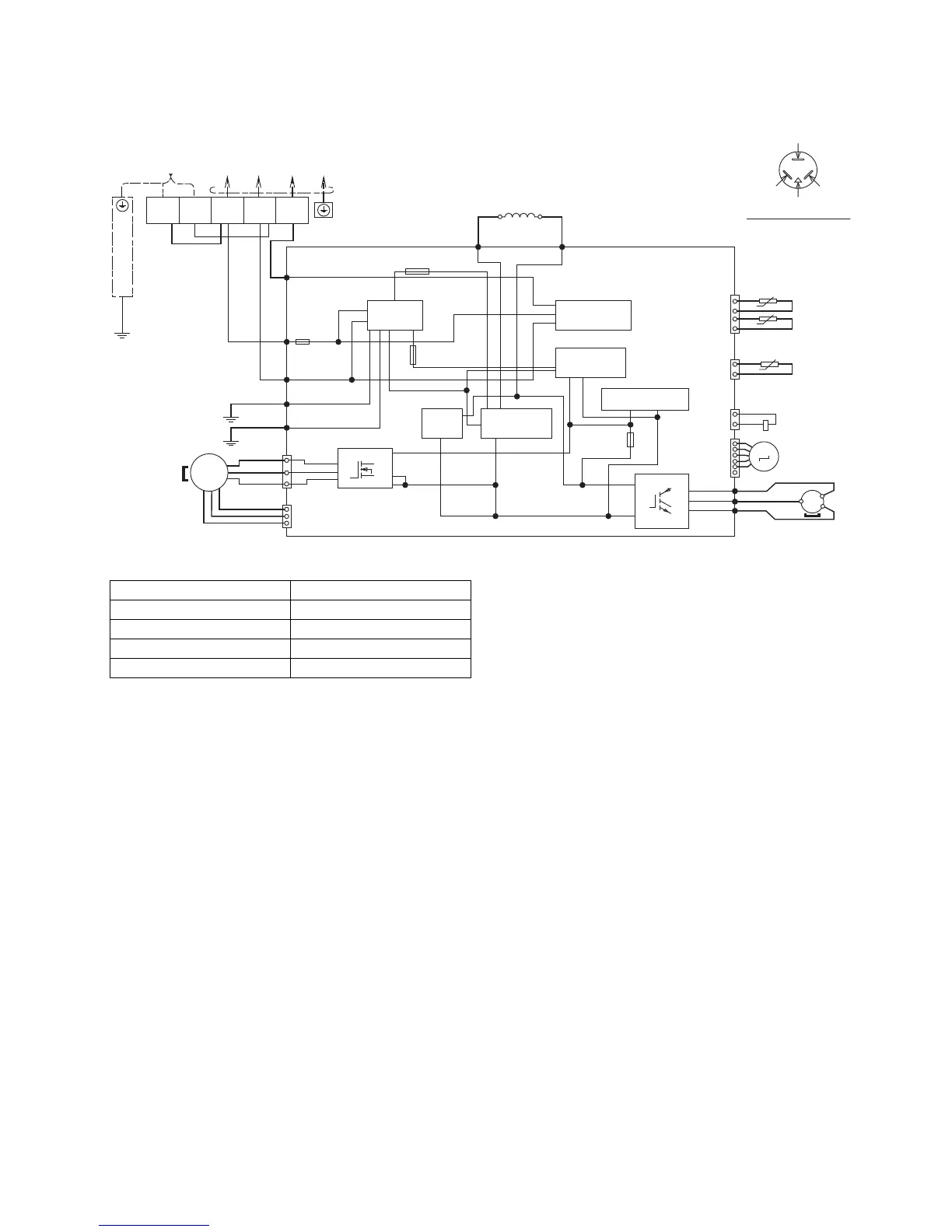

9.2 Outdoor Unit
9.2.1 CU-TZ9SKE
MS
3 ~
U
V
W
P
N
Q1
M
REACTOR
W
U
V
MS
3 ~
t°
t°
t°
TO INDOOR UNITSINGLE PHASE
POWER SUPPLY
(WHT)
(WHT)
(WHT)
(BLK) (RED)
(RED)
LN
(BLK)
1
23
GRN
GRN
BLK
BLK
YLW/GRN
WHT
WHT
RED
AC-WHT
AC-BLK
(BLK)
DATA
(RED)
GROUNDING TERMINAL
FUSE101
(20A 250V)
FG 1
(GRN)
FG 2
(GRN)
CN-MTR1
(RED)
CN-MTR2
(WHT)
FAN MOTOR
NOISE
FILTER
CIRCUIT
3
5
1
1
10
14
16
3
IC19
ELECTRONIC CONTROLLER
FUSE102
T3.15A L250V
FUSE104
(15A 250V)
PFC
CIRCUIT
RECTIFICATION
CIRCUIT
SWITCHING POWER
SUPPLY CIRCUIT
COMMUNICATION
CIRCUIT
RECTIFICATION
CIRCUIT
FUSE103
T3.15A L250V
GRY
RAT2
(GRY)
RAT1
(GRY)
GRY
TERMINAL
BOARD
OUTDOOR AIR TEMP.
SENSOR (THERMISTOR)
1
4
CN-TH
(WHT)
PIPING TEMP. SENSOR
(THERMISTOR)
1
3
CN-TANK
(WHT)
COMP. TEMPERATURE
SENSOR (THERMISTOR)
YLW
YLW
1
3
CN-HOT
(WHT)
ELECTRO-MAGNETIC
COIL (4-WAYS VALVE)
ELECTRO-MAGNETIC
COIL
(EXPANSION VALVE)
CN-STM
(WHT)
1
6
RED
BLU
YLW
U (RED)
V (BLU)
W (YLW)
COMPRESSOR
REMARKS
BLACK; (BLK)
WHITE; (WHT)
YELLOW; (YLW)
ORANGE; (ORG)
YELLOW/GREEN; (YLW/GRN)
BLUE; (BLU)
RED; (RED)
BROWN; (BRW)
GREEN; (GRN)
GRAY; (GRY)
COMPRESSOR TERMINAL
THE PARENTHESIZED LETTERS IS
INDICATED ON TERMINAL COVER.
RED (RED)
(TRADEMARK)
BLUE (BLU)
YELLOW (YEL)
Resistance of Compressor Windings
MODEL CU-TZ9SKE
CONNECTION 9SS072XAC21 (Ω)
U-V 3.034
U-W 3.021
V-W 3.009
Note: Resistance at 20°C of ambient temperature.
