143
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
19.2 CS-TZ24SKEW
19.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

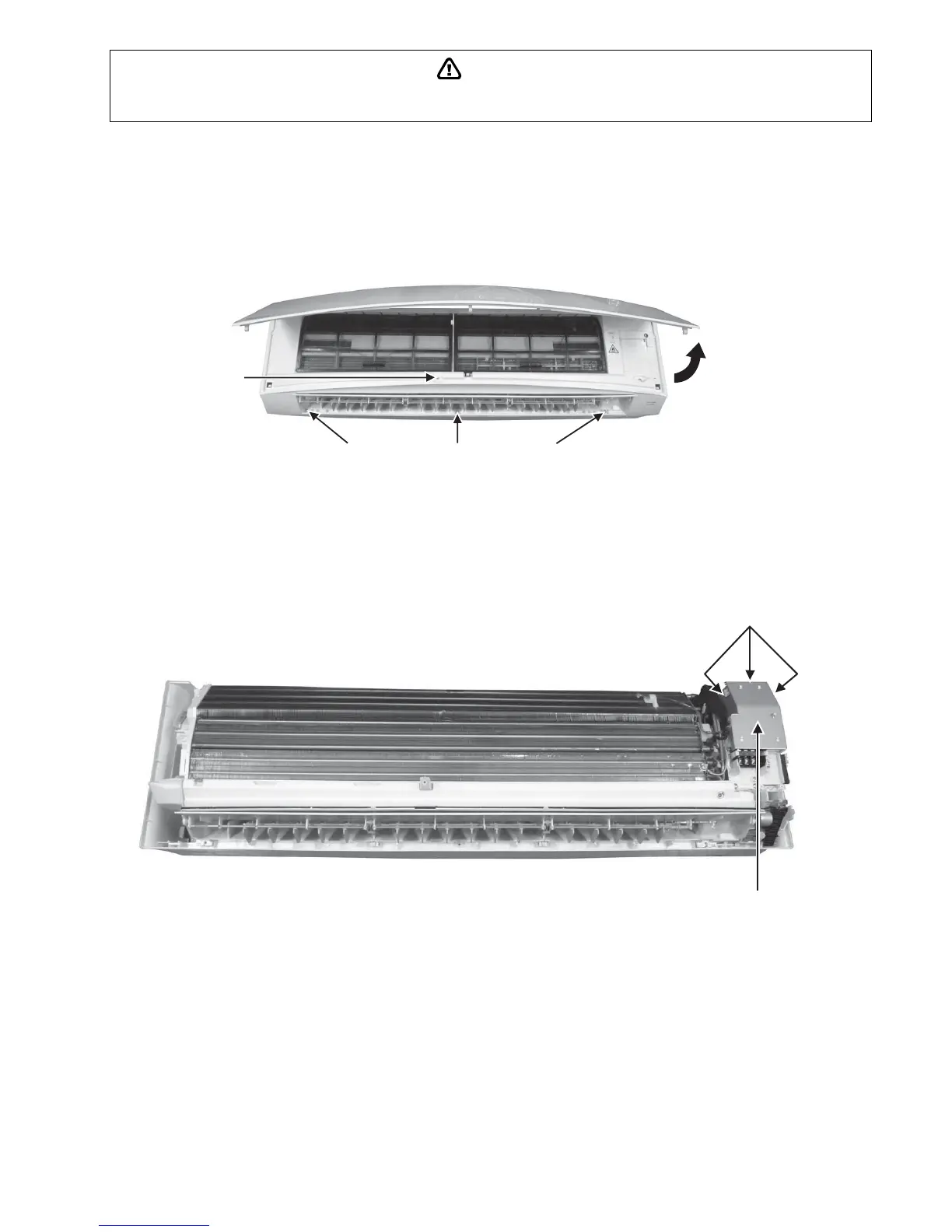

19.2.1.1 To Remove Front Grille
3. Remove 3 caps and 3 screws at the
bottom of front grille.
2. Remove 1 screw at the
middle of front grille.
1. Hold both sides of the front grille
and gently remove it by pulling up
and toward yourself.
Figure 1
19.2.1.2 To Remove Electronic Controller
4. Remove control board
cover by releasing 3 hooks.
3 Hooks (Top, left
and right hand side)
Figure 2
To Next Page
