146
17. Remove the cross flow fan from the unit by
pulling it to the left and downward.
18. Fan motor can be removed after the
removal of cross flow fan.
Reminder: To reinstall the fan motor, adjust
the fan motor connector to 45° towards you
before fixing control board.

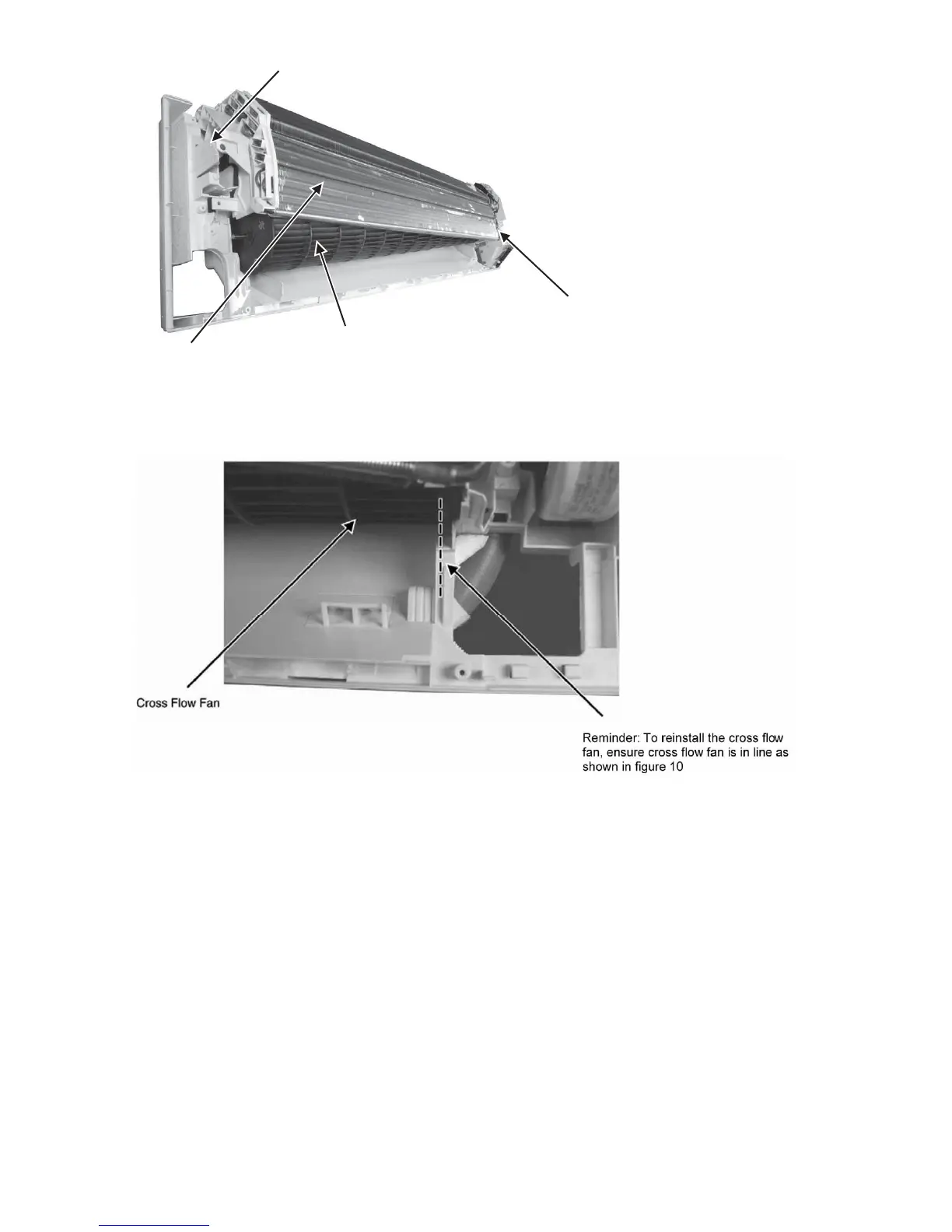

16. Push the holdfast to the left and lift up the evaporator.
Evaporator
Figure 9
Figure 10
