Panasonic CS-TZ9SKEW Service Manual

24
6.1.2 CS-TZ24SKEW

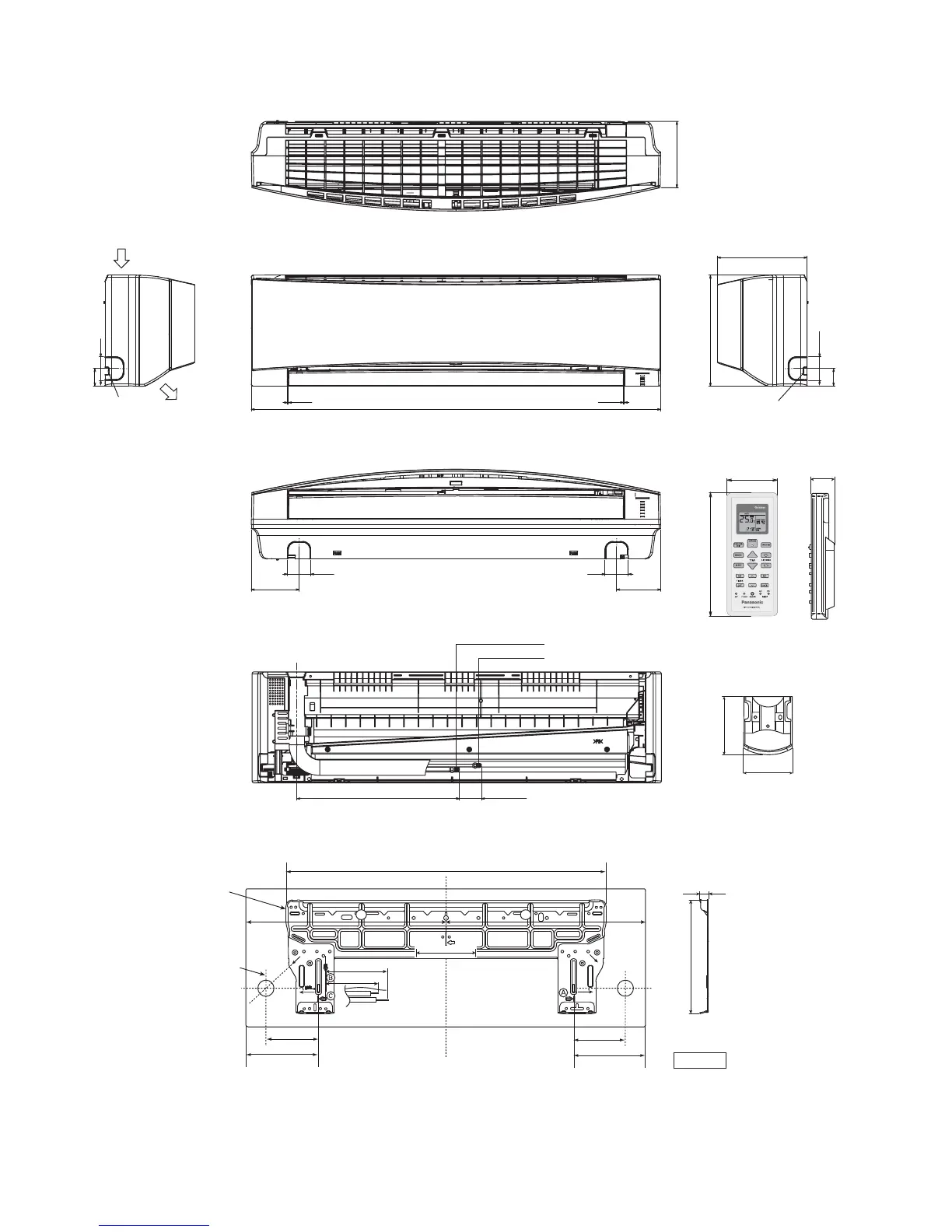

Relative position between the indoor unit and the installation plate <Front View>
Unit : mm
10.5
264.2
Right
piping
hole
Left
piping
hole
748
532539
219
169
Installation
plate
Indoor unit
external
dimensions
line
128
241.5
128
241.5
3 4
128 mm
<Top View>
<Front View>
<Bottom View>
<Rear View>
<Side View> <Side View>
Air outlet
direction
Air intake
direction
Left piping
hole
1070
1~21~2
173.5
115
61
125
61
Gas side
Liquid side
410
(41~61)
45
61.5
Left piping
hole
61.5
45
290
235
62
51
22
<Remote Control Holder>
<Remote Control>
134
47
