62

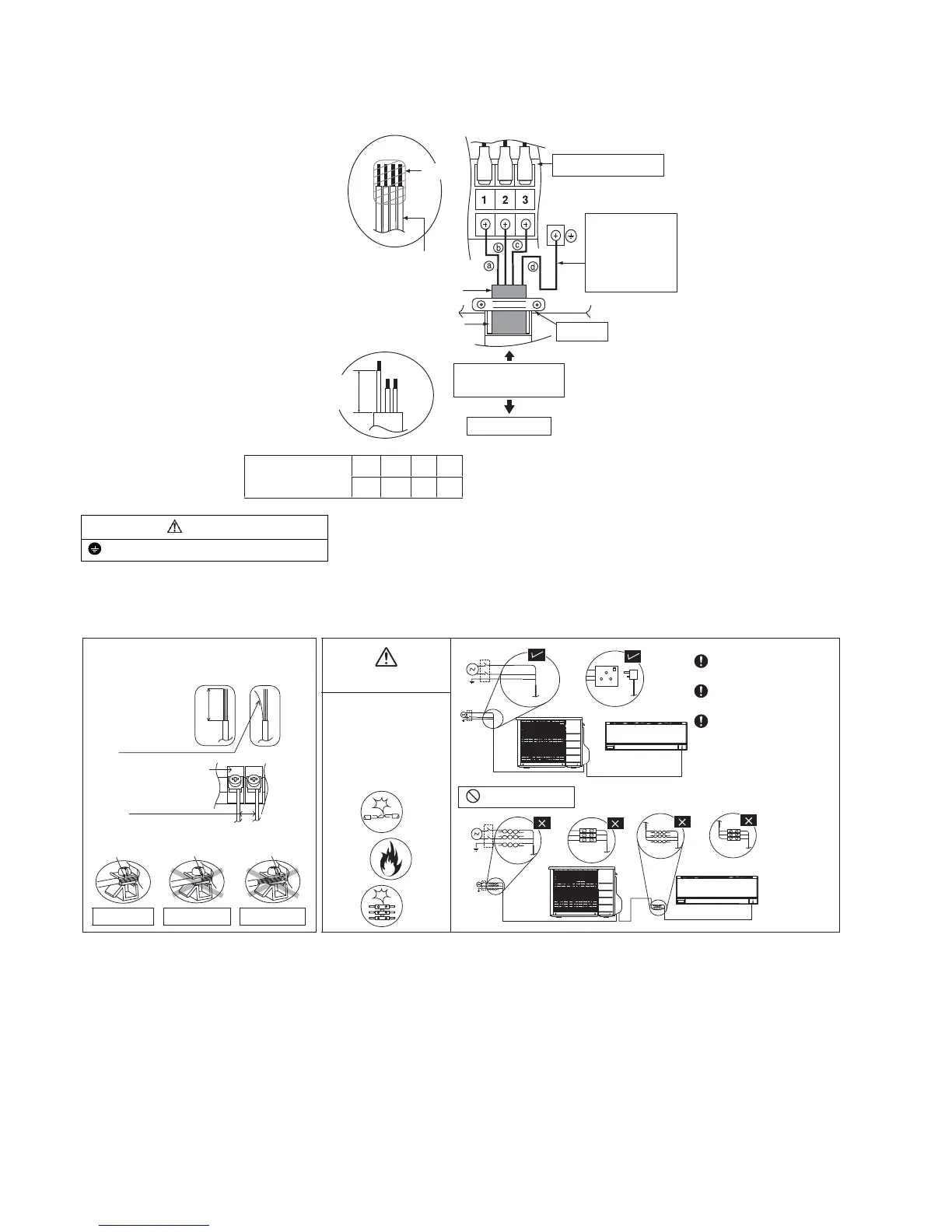

5 Secure the connection cable onto the control board with the holder.
o Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s
respectively.
o Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.
Connection cable
Indoor & outdoor
connection cable
Escapement
Terminal Board
Recommended
length (mm)
Earth Wire
longer than
others AC
wires for
safety reason
Holder
Indoor & outdoor
connection cable
Outdoor unit
Tape
Recommended
length (mm)
abcd
35 35 35 55
WARNING
This equipment must be properly earthed.
12.2.4.1 Wire Stripping Connecting and Requirement
WARNING
OR
Use complete wire
without joining.
Use approved socket
and plug with earth pin.
Wire connection in this
area must follow to
national wiring rules.
Wire stripping
No loose strand
when inserted
10 ± 1 mm
RISK OF FIRE
JOINING OF WIRES
MAY CAUSE
OVERHEATING AND
FIRE.
5 mm or more
(gap between wires)
Indoor/outdoor
connection
terminal board
Do not joint wires
OR
OR
Conductor
fully inserted
Conductor over
inserted
Conductor not
fully inserted
ACCEPT PROHIBITED PROHIBITED
To Next Page
