Panasonic CS-VU18SKQ Service Manual

122

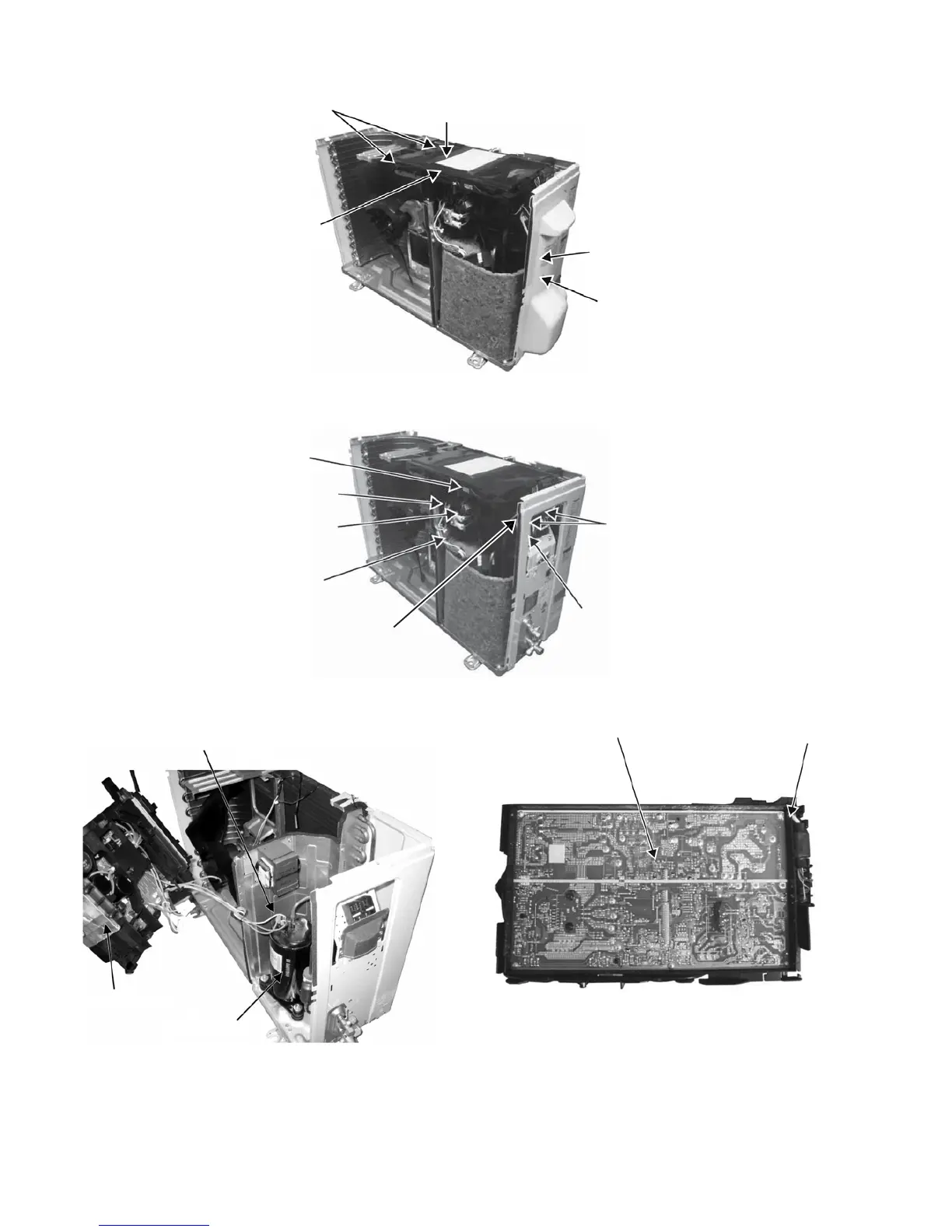

3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 2 hooks.
Top Cover
Hooks
Control Board
Screw
Terminal Board Cove
r
Fig.3
Remove 2 screws
Remove 7 connectors
from terminal board
Remove earth wire
Remove 2 earth wire
Remove 2 connectors
from reactor
Remove 1 screw
Remove fan motor
connector & 4
connectors from
electronic controller
Fig.4
Remove the Terminal Cover
and 3 Terminal Compressor
Control Board
Compressor
Fig.5
Electronic Controller
Control Board
Fig.6
