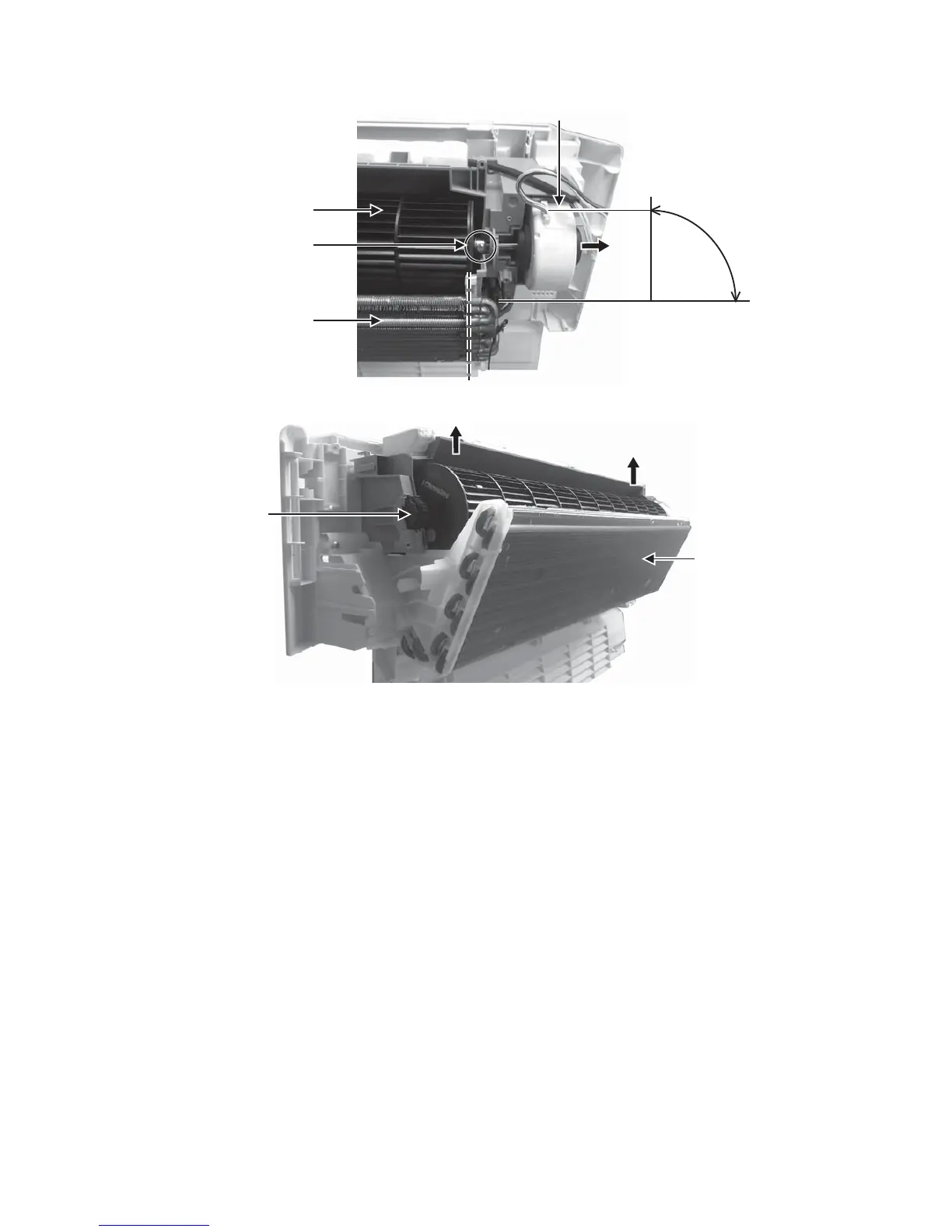

Pull
70°
Cross Flow Fan
Evaporator
Screw
In line
Fan Motor
Pull
1. Loosen the mounting screw (1 screw) which fixes the cross flow fan to indoor motor.
2. Pull the cross flow fan out by lifting up.
3. Fan motor can be removed after the removal of cross flow fan.
4. Detach the connector from fan motor. Pull the motor out to remove it.
Reminder:
To reinstall the fan motor, adjust the fan motor connector to 70° towards you before fixing control board.
To reinstall the cross flow fan, ensure cross flow fan is in line as shown.
