Panasonic CS-VU18SKQ Service Manual

Name: Panasonic CS-VU18SKQ
Brand: Panasonic
Rating: 5 (1 reviews)

136 pages

To Next Page

To Previous Page

118

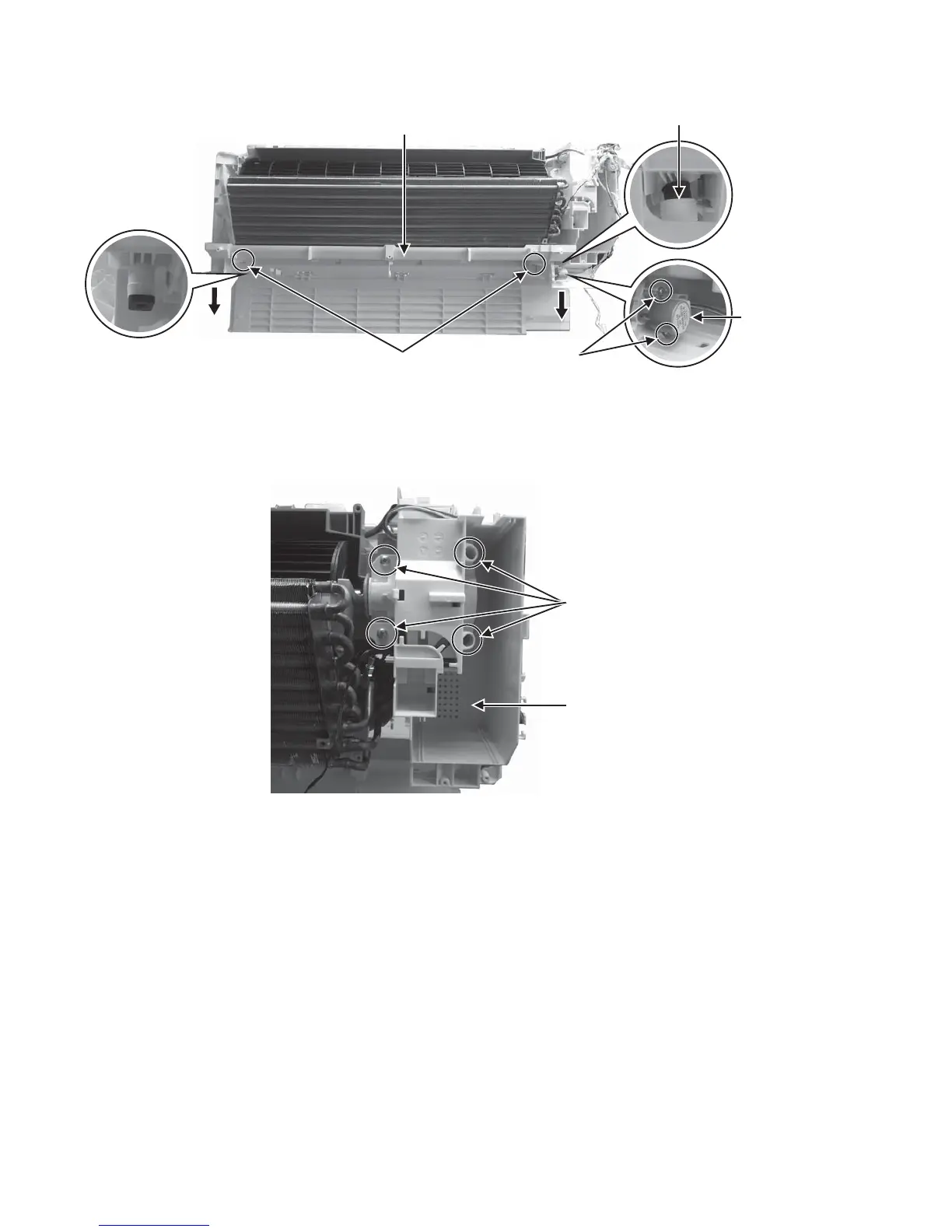

17.1.13 To Remove Drain Pan

Pull

Drain Pan

Drain Hose

Screw Screw

Stepping Motor

1. Unscrew the 4 mounting screws from the drain pan (2 screws) and stepping motor (2 screws). Pull the drain

pan downward and dismantle gently.

17.1.14 To Remove Control Board

Control Board

Screw

1. Unscrew 4 mounting screws from control board. Pull the control board out.

Default Chapter2
- Table of Contents2
1 Safety Precautions3
2 Precaution for Using R32 Refrigerant6
3 Specification10
4 Location of Controls and Components16
- Indoor Unit16
- Outdoor Unit16
- Remote Control16
5 Dimensions17
- Indoor Unit17
- Outdoor Unit18
6 Refrigeration Cycle Diagram19
- Cs-Vu9Skq Cu-Vu9Skq Cs-Vu12Skq Cu-Vu12Skq19
- Cs-Vu18Skq Cu-Vu18Skq20
7 Block Diagram21
- Cs-Vu9Skq Cu-Vu9Skq Cs-Vu12Skq Cu-Vu12Skq21
- Cs-Vu18Skq Cu-Vu18Skq22
8 Wiring Connection Diagram23
- Indoor Unit23
- Outdoor Unit24
9 Electronic Circuit Diagram26
- Indoor Unit26
- Outdoor Unit27
10 Printed Circuit Board29
- Indoor Unit29
- Outdoor Unit32
11 Installation Instruction34
- Select the Best Location34
- Indoor Unit35
- Outdoor Unit40
12 Installation and Servicing Air Conditioner Using R3244
- About R32 Refrigerant44
- Characteristics of R32 Refrigerant44
- Refrigerant Piping Installation • Tools Used in Services46
- Required Tools46
- New Installation, Relocation, Repairing of Refrigerant Cycle System the Procedures50
- Piping Installation of R3251
- Installation, Relocation, and Service52
- Vacuum Pump52
- Repairing of Refrigerant Cycle / Brazing Point56
- Reference> Analysis Method for no Error Code, no Cooling / no Warming62
13 Operation Control64
- Basic Function64
- Indoor Fan Motor Operation65
- Outdoor Fan Motor Operation65
- Airflow Direction66
- Shower / Direct Operation68
- Timer Control69
- Sleep Mode Operation69
- Random Auto Restart Control70
- Indication Panel70
- Nanoe-G Operation70
- In-Filter Deactivation Operation73
- Dust Sensor Operation74
14 Protection Control75
- Restart Control (Time Delay Safety Control)75
- Seconds Forced Operation75
- Total Running Current Control75
- IPM (Power Transistor) Prevention Control7575
- Compressor Overheating Prevention Control76
- Low Pressure Prevention Control (Gas Leakage Detection)76
- Low Frequency Protection Control 176
- Low Frequency Protection Control 276
- Outdoor Air Temperature Control77
- Cooling Overload Control77
- Freeze Prevention Control 177
- Freeze Prevention Control 277
- Dew Prevention Control77
- Odor Cut Control78
15 Servicing Mode79
- Auto Off/On Button79
- Remote Control Button80
16 Troubleshooting Guide83
- Refrigeration Cycle System83
- Breakdown Self Diagnosis Function85
- Error Code Table86
- Troubleshooting Flowchart87
17 Disassembly and Assembly Instructions111
- Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal Procedures111
- To Remove Cross Flow Fan and Indoor Fan Motor119
- Outdoor Electronic Controller Removal Procedure121
18 Technical Data124
- Operation Characteristics124
19 Exploded View and Replacement Parts List130
- Indoor Unit130
- Outdoor Unit133
