117
CAUTION

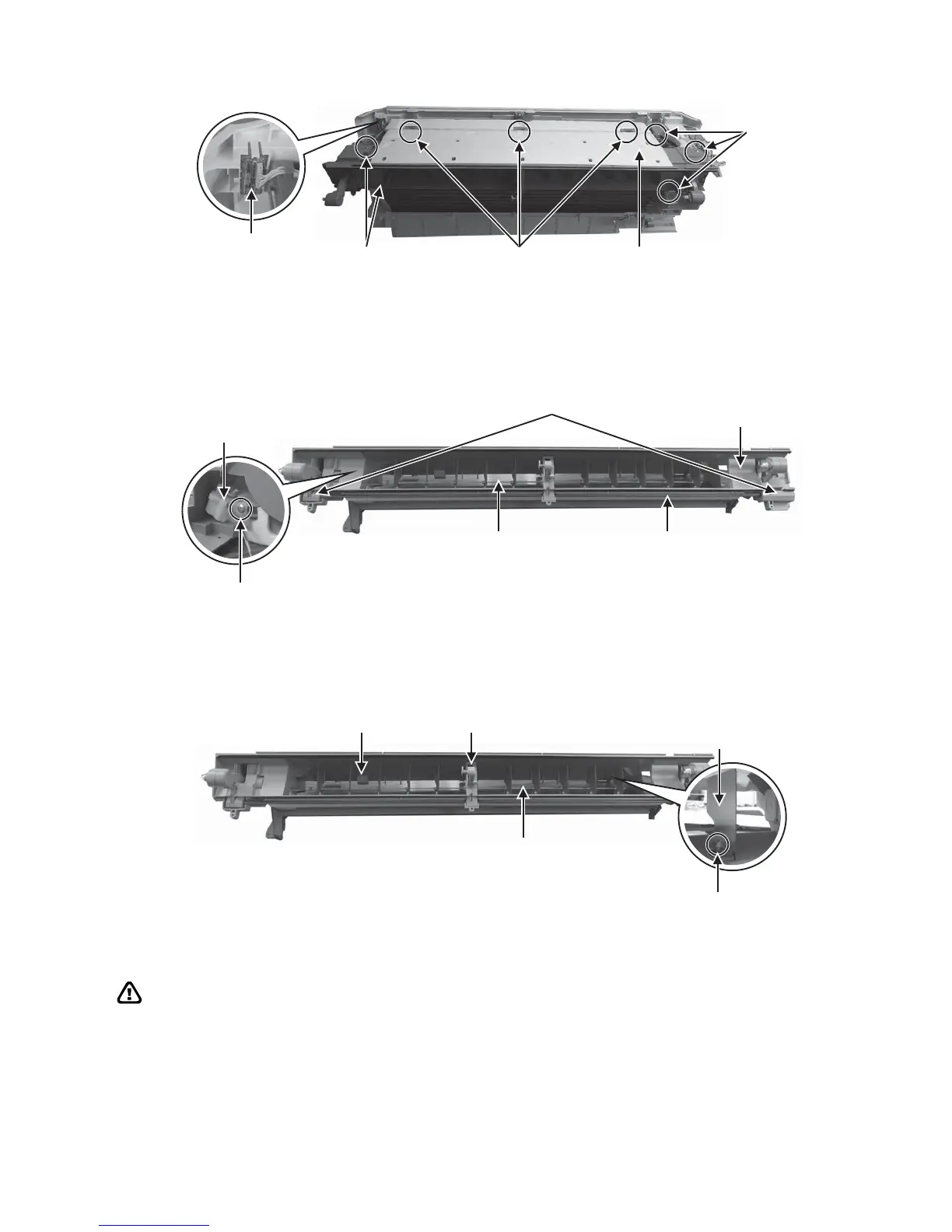

17.1.10 To Remove Discharge Grille and Electronic Controller (Connector)
Tab Discharge GrilleScrew
Screw
Electronic Controller
1. Detach connectors from lead wire complete (CN-STM601). 3 connectors from electric controller (Connector).
2. Remove the discharge grille by releasing the 3 tabs.
3. Unscrew the 4 mounting screws to remove discharge grille.
17.1.11 To Remove Gear Complete
ShaftConnecting Bar
Gear Complete
ir Swing Motor
Discharge Grille
Screw
1. Remove the shaft from discharge grille complete to remove the gear complete.
2. Unscrew the mounting screw from air swing motor (vertical flap) and push to remove from the connecting bar.
17.1.12 To Remove Vertical Flap and Fulcrum
Connecting Bar
Vertical Flap
Discharge Grille Fulcrum
Hook
1. Remove the vertical flap from hook and connecting bar.
2. Unhook the fulcrum and remove from discharge grille.
Beware of sharp edge of vertical flap
To Next Page
