116

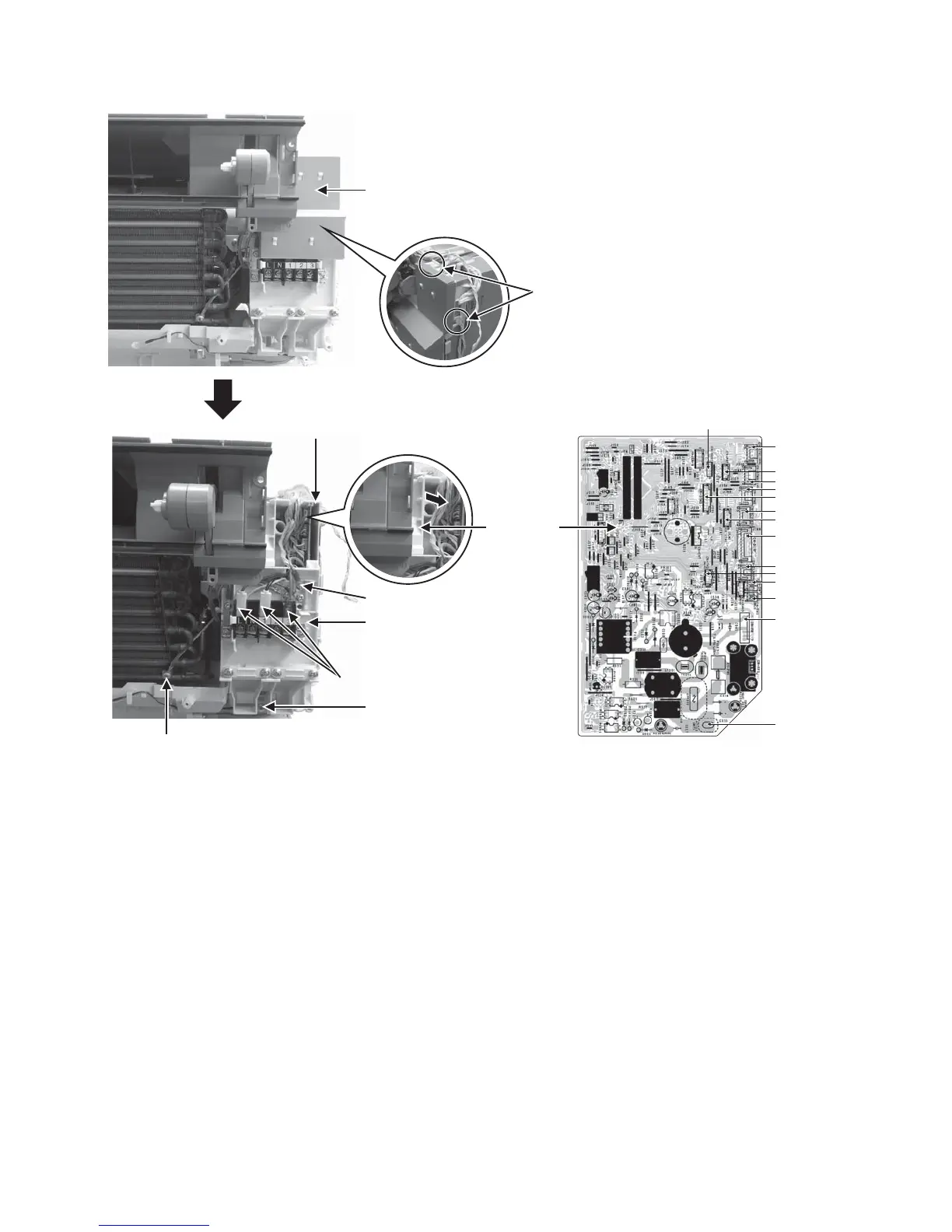

17.1.9 To Remove Electronic Controller (Main)
Control Board Cover
Terminal Wire
Control Board Casing
Screw
Earth Wire Screw
Tab
Power Supply Line
Control Board Casing
Electronic
Controller
Pull
CN-DUST
CN-STM1
CN-STM4
CN-RMT
CN-STM6
CN-DISP
CN-SW
CN-TH1
CN-FM
CN-CLN
CN-RCV
CN-STM3
CN-TH2
AC303
CN-STM5
1. Remove the control board cover by releasing the tabs.
2. Release the tab and remove.
3. Detach the terminal wire (Brown), terminal wire (Black), terminal wire (Red), power supply line and earth wire
screw.
4. Unscrew the mounting screw to remove terminal board complete.
5. Pull the main electronic controller out partially.
6. Detach all connectors as labeled from the electronic controller. Pull the main electronic controller gently out
from control cover casing.
To Next Page
