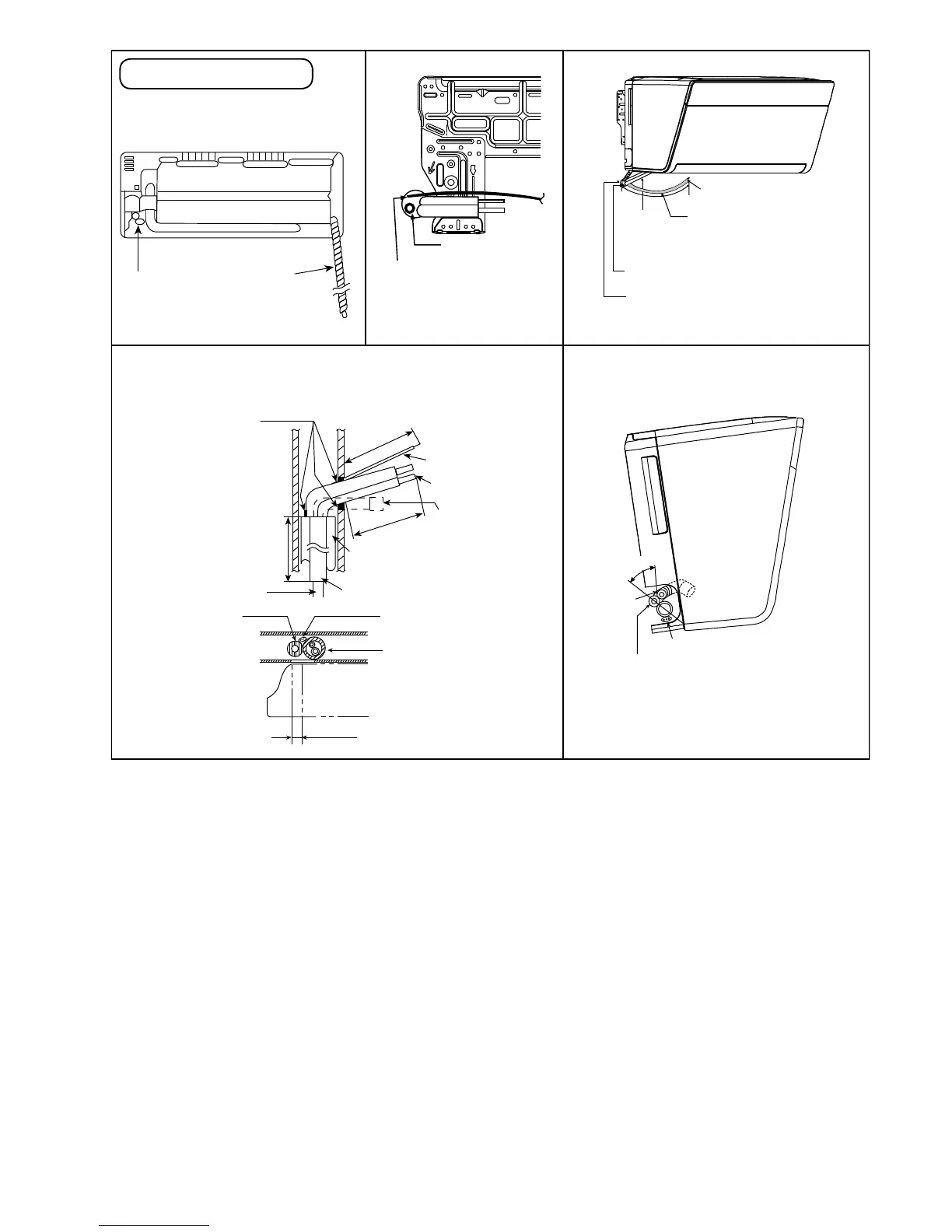

Rear view for left piping installation
Drain cap
Drain hose
Adjust the piping
slightly downwards
•
How to pull the piping and drain hose out, in case
of the embedded piping.
PVC tube
for drain
hose
Indoor unit
100 mm (1.0 ~ 1.5HP)
or 72 mm (2.0HP)
Piping
Cable
Apply putty or
caulking material
to seal the wall
opening
Connection cable
Piping
M
o
r
e
t
h
a
n
4
7
0
m
m
M
o
r
e
t
h
a
n
1
0
5
0
m
m
(
1
.0
~
2
.0
H
P
)
PVC tube (VP-65) for piping
and connection cable
PVC tube for drain hose (VP-30)
PVC tube for
drain hose (VP-20)
More than 700 mm
•
In case of left piping how to insert
the connection cable and drain hose.
Drain hose
from main unit
(For the right piping, follow the
same procedure)
Replace the drain hose
Drain hose
Piping
Connection cable
More than 1050 mm
(1.0 ~ 2.0HP)
Sleeve for piping hole
Drain hose
Connection
cable
80mm TO
HOLE CENTER
PIPE
HOLE
CENTER
Cable
4
5
°
Drain
hose
Piping
