– 37 –
MAC9611041C2
CS-MC90KE
Servicing Information

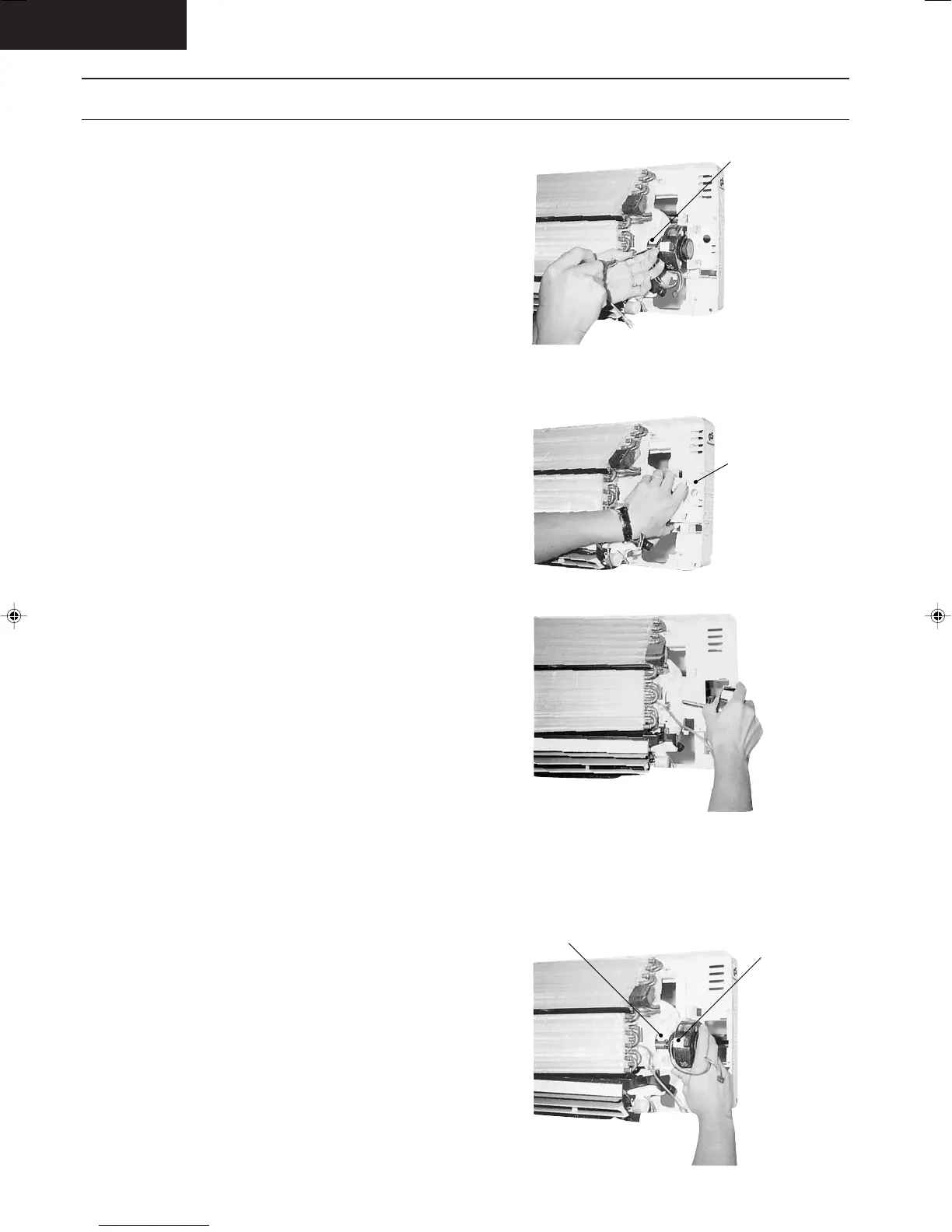

3. Remove the Fan Motor
Loosen the Fan Motor securing screw at the junction
with Cross Flow Fan. (Fig. 5)
Remove the particular piece and the Fan Motor can
be taken off as shown in Fig. 6 and 7.
4. To fix the Indoor Fan Motor, ensure that the Fan
Motor securing screw is positioned at the rear end
and the Fan Motor lead wire is positioned parallel
to the Fan Motor. (Fig. 8)
Fan Motor securing screw
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fan Motor securing screw is
positioned at the rear end
Fan motor lead wire
is positioned parallel
to the Fan Motor
Remove the Indoor Fan Motor
Particular piece
