Panasonic Diga DMR-EZ47 User Manual

55
RQT8853
Connection and Setting
Basic Connection
Note: The terminals on the rear of your TV may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.

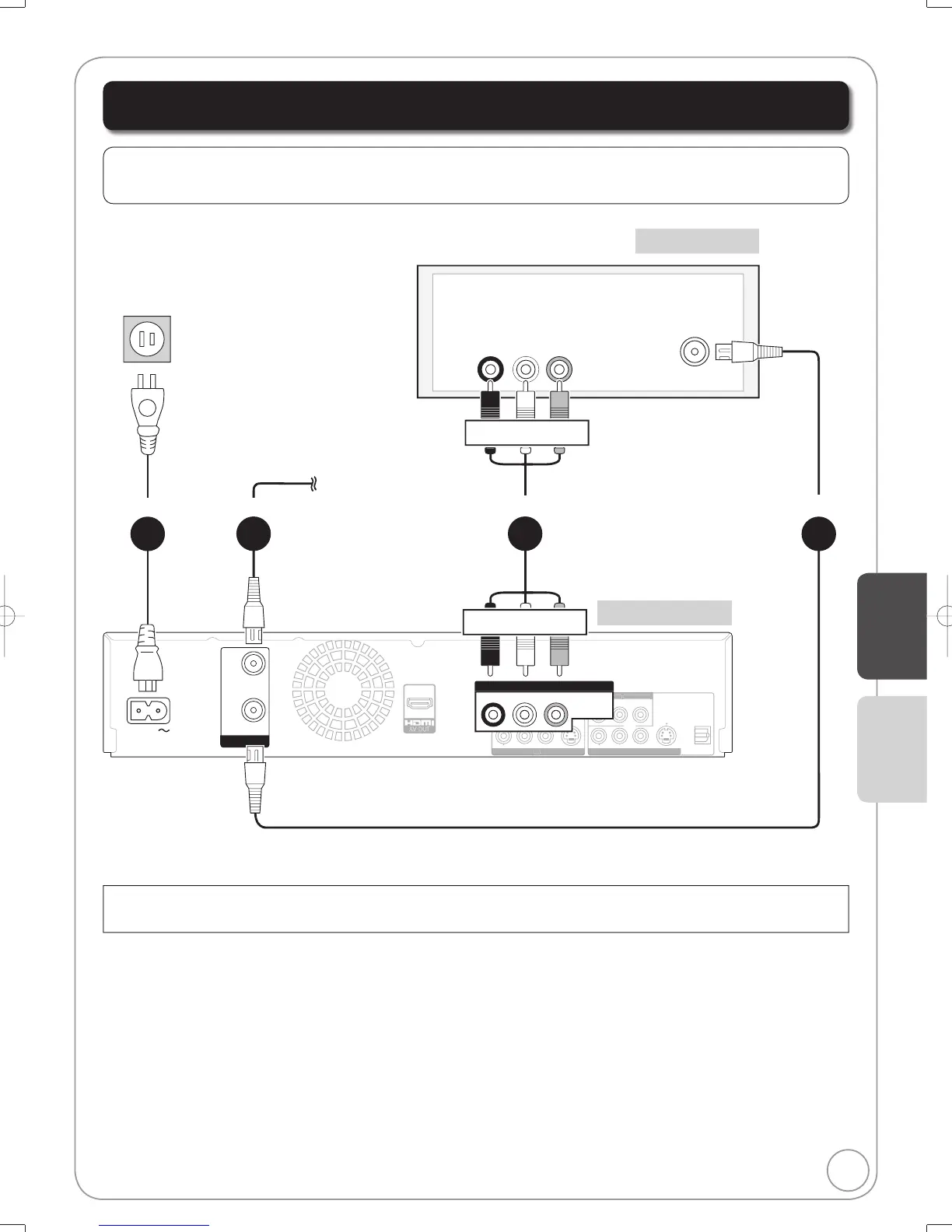

Connecting to a Television with Direct Cable or Antenna (No Cable Box or Satellite
Receiver)
 75  coaxial cable from the wall or antenna signal to the “RF IN” on the unit.
 75  coaxial cable (included) from the “RF OUT” on the unit to the “VHF/UHF RF IN” on the
TV.
 Audio/video cable (included) from the “DVD/VHS COMMON OUT” on the unit to the “AV IN”
on the TV.
 AC power supply cord (included) from the “AC IN” on the unit to a household AC outlet.
If your television does not have Audio/Video IN terminals, step may be disregarded, although the use of
AV connections is recommended for improved picture quality.
RF
OUT
RF
IN
VHF / UHF
AC IN
OPTICAL
VIDEO
R-AUDIO-L
P
R
Y
P
B
DIGITAL AUDIO OUT
(
PC
M
/
BITSTREAM
)
S VIDEO
R-AUDIO
VIDEO
VIDEO
R-AUDIO-L
-L
S VIDEO
O
(
)
COMPONENT
VIDEO OUT
DVD/VHS COMMON OUT
DVD PRIORITY OUT
IN1
DVD/VHS COMMON OUT
VIDEO
R-AUDIO-L
4
VHF/UHF
RF IN
AUDIO IN VIDEO
IN
RL
2
1
3
Cable from the wall
or antenna signal
Red White Yellow
Rear of TV
To a household AC outlet
(AC 120 V, 60 Hz)
stepstep step step
Rear of this unit
Red White Yellow
Setting Menus
