Panasonic Diga DMR-EZ47 User Manual

57
RQT8853
Connection and Setting

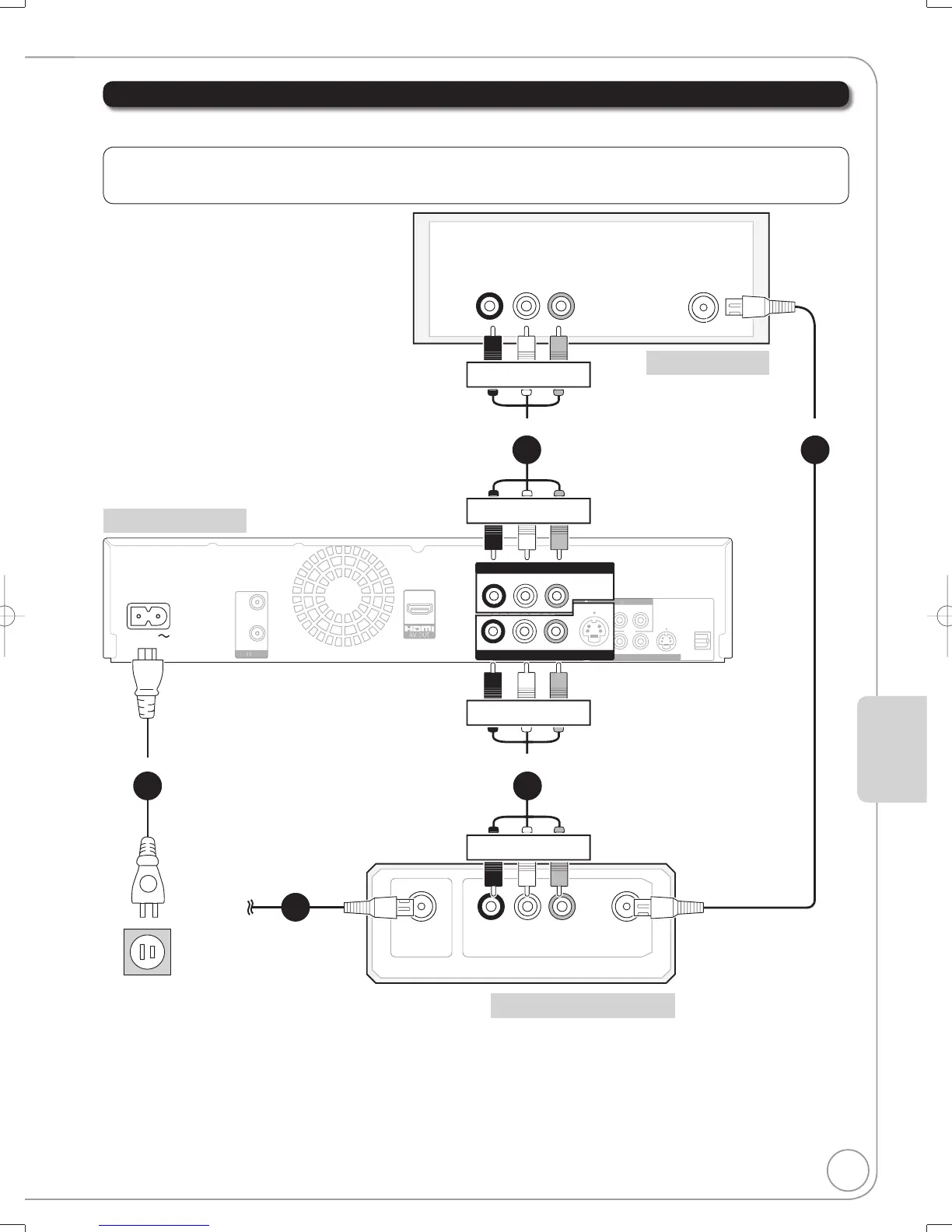

Connecting to a Television and a Satellite Receiver
 75  coaxial cable from the satellite antenna to the “SATELLITE IN” on the satellite receiver.
 75  coaxial cable (included) from the “RF OUT” on the satellite receiver to the
“VHF/UHF RF IN” on the TV.
 Audio/video cable (included) from the “DVD/VHS COMMON OUT” on the unit to the “AV
IN” on the TV.
 Audio/video cable from the “AV OUT” on the satellite receiver to the “IN1” on the unit.
 AC power supply cord (included) from the “AC IN” on the unit to a household AC outlet.
Additional coaxial cable and audio/video (AV) cable are required.
Note: The terminals on the rear of your TV and satellite receiver may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
VHF/UHF
RF IN
AUDIO IN VIDEO
IN
RL
AC IN
OPTICAL
VIDEO
R-AUDIO-L
P
R
P
B
DIGITAL AUDIO OUT
(
PC
M
/
BITSTREAM
)
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO
-L
O
(
)
COMPONENT
VIDEO OUT
DVD/VHS COMMON OUT
DVD PRIORITY OUT
IN1
DVD/VHS COMMON OUT
VIDEO
R-AUDIO-L
VIDEO
R-AUDIO -L
S VIDEO
IN1
AUDIO OUT VIDEO
SATELLITE
IN
RF OUT
OUTR L
RF
OUT
RF
IN
VH
F
/
UHF
2
1
5
3
4
Satellite
antenna
Rear of satellite receiver
Rear of TV
step
step
step
stepstep
Rear of this unit
Red White Yellow
Red White Yellow
Red White Yellow
Red White Yellow
To a household AC outlet
(AC 120 V, 60 Hz)
M5821.indb57M5821.indb57 2007/02/2616:38:212007/02/2616:38:21
