71
RQT8853
Reference
Cassette eject button ....................................(¼ 72)
Disc tray open/close button ............................(¼ 7)
Start recording ................................................(¼ 8)
Stop button .................................................(¼ 7, 8)
Play/1.3 button .............................................(¼ 7)
DVD/VHS POWER on/off button
(/I POWER) .................................................(¼ 6)
Press to switch the unit from on to standby mode or vice versa.
In the standby mode, the unit is still consuming a small amount
of power.
IN2 input terminals (IN2) ..............................(¼ 30)
DVD/VHS drive indicator ................................(¼ 7)
Lights when the DVD or VHS drive is selected.
DRIVE SELECT button...................................(¼ 7)
Drive changes each time you press [DRIVE SELECT].
Channel Select ...............................................(¼ 6)
Connector for a digital video (DV)
camcorder ....................................................(¼ 31)
SD Card Slot ................................................(¼ 73)
Reset button .................................................(¼ 78)
One Touch Copying operation button
From VHS to DVD ............................................(¼ 10)
From DVD to VHS ............................................(¼ 11)
Recording indicator
TV indicator
The indicator lights during the TV mode and it goes out during
the VCR mode. You can switch the mode by using [VCR/TV]
(¼ 6).
Main display section
Tape indicator
Disc indicator
This indicator lights up when a disc that is supported by this unit
is inserted.
Scheduled recording indicator (¼ 9)
On:
When a scheduled recording program is registered and a
recordable disc or tape is inserted.
Flashes:
The scheduled recording indicator fl ashes when the unit cannot
go to scheduled recording standby (e.g. there is no disc or tape,
etc). It does not fl ash if Quick Start is off.
Progressive indicator
This indicator lights up when you select “On” in “Progressive”
(¼ 43).

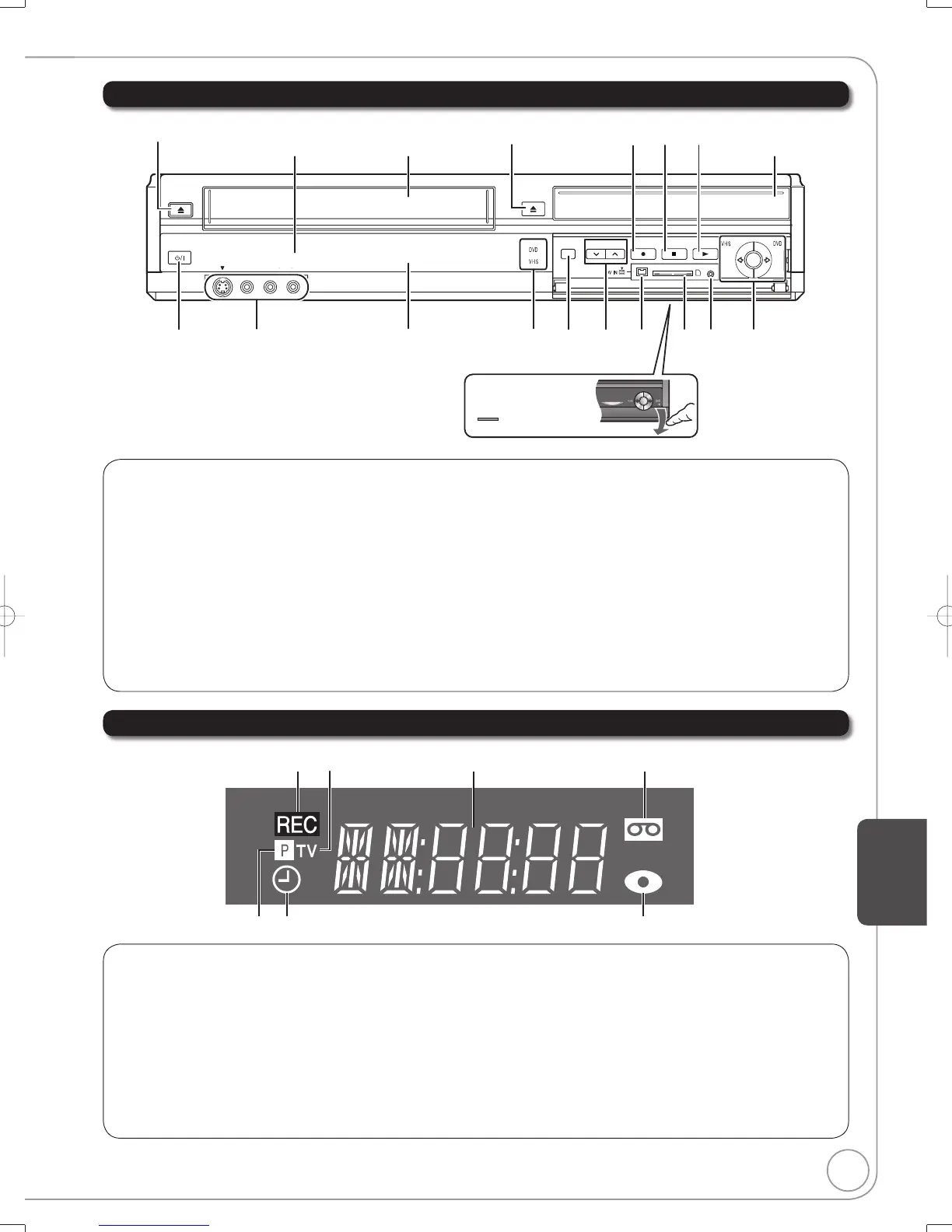

The Unit’s Display
Main Unit
S VIDEO
IN 2
VIDEO
/MONO
AUDIO
R
L
S VIDEO
IN 2
VIDEO
/MONO
AUDIO
R
L
DRIVE SELECT
REC
RESET
CH
CH
OPEN/CLOSE
EJECT
POWER
COPYING
COPYING

COPYINGCOPYING
Cassette
compartment
The unit’s display
Remote Control
signal sensor Disc tray
Opening the front panel
Press down on the
part with your fi nger.
M5821.indb71M5821.indb71 2007/02/2616:38:312007/02/2616:38:31
