Panasonic DMR-EH75VP - Page 227

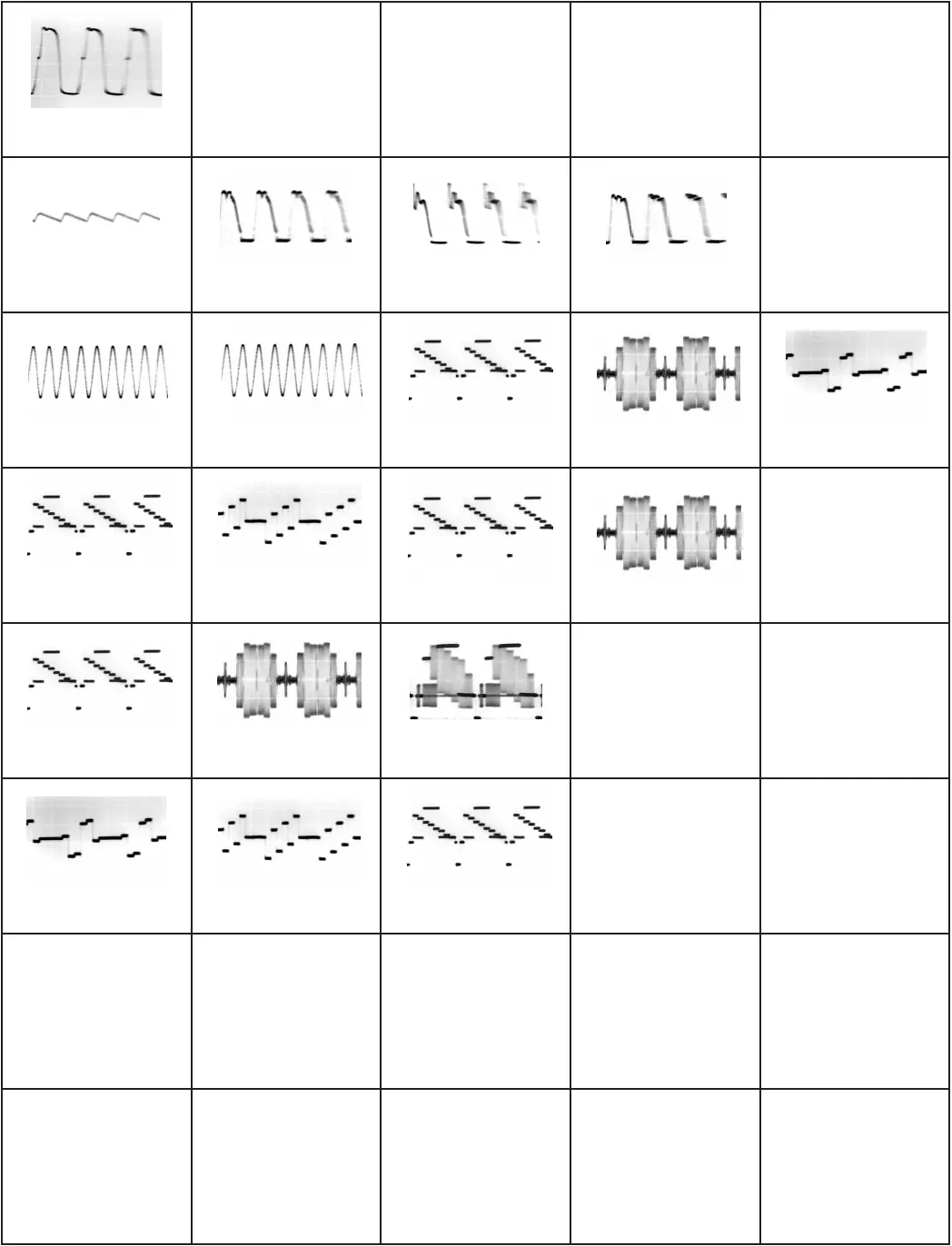

IC11201-9 STOP
280Vp-p (20usec.div)
P59001-75 REC/PLAY
0.8Vp-p (20usec.div)
P59001-59 REC/PLAY
0.6Vp-p (20usec.div)
JK4801-18 REC/PLAY
1.2Vp-p (20usec.div)
JK4801-19 REC/PLAY
1.2Vp-p (20usec.div)
JK4801-20 REC/PLAY
2.0Vp-p (20usec.div)
P59001-39,41 REC/PLAY
1.0Vp-p (1msec.div)
T11301-8 STOP
25Vp-p (50usec.div)
T11301-6 STOP
300Vp-p (0.1msec.div)
T11101-4 STOP
30Vp-p (50usec.div)
P59001-55 REC/PLAY
0.8Vp-p (20usec.div.)
P59001-71 REC/PLAY
1.0Vp-p (20usec.div.)
P59001-63 REC/PLAY
1.0Vp-p (20usec.div.)
P59001-67 REC/PLAY
0.6Vp-p (20usec.div.)
P59001-51 REC/PLAY
1.0Vp-p (20usec.div.)
P59001-29,31 REC/PLAY
0.8Vp-p (1msec.div)
JK3902-3 REC/PLAY
2.0Vp-p (20usec.div)
JK3902-4 REC/PLAY
1.5Vp-p (20usec.div)
JK3902-16 REC/PLAY
2.0Vp-p (20usec.div)
T11101-1 STOP
10Vp-p (50msec.div)
