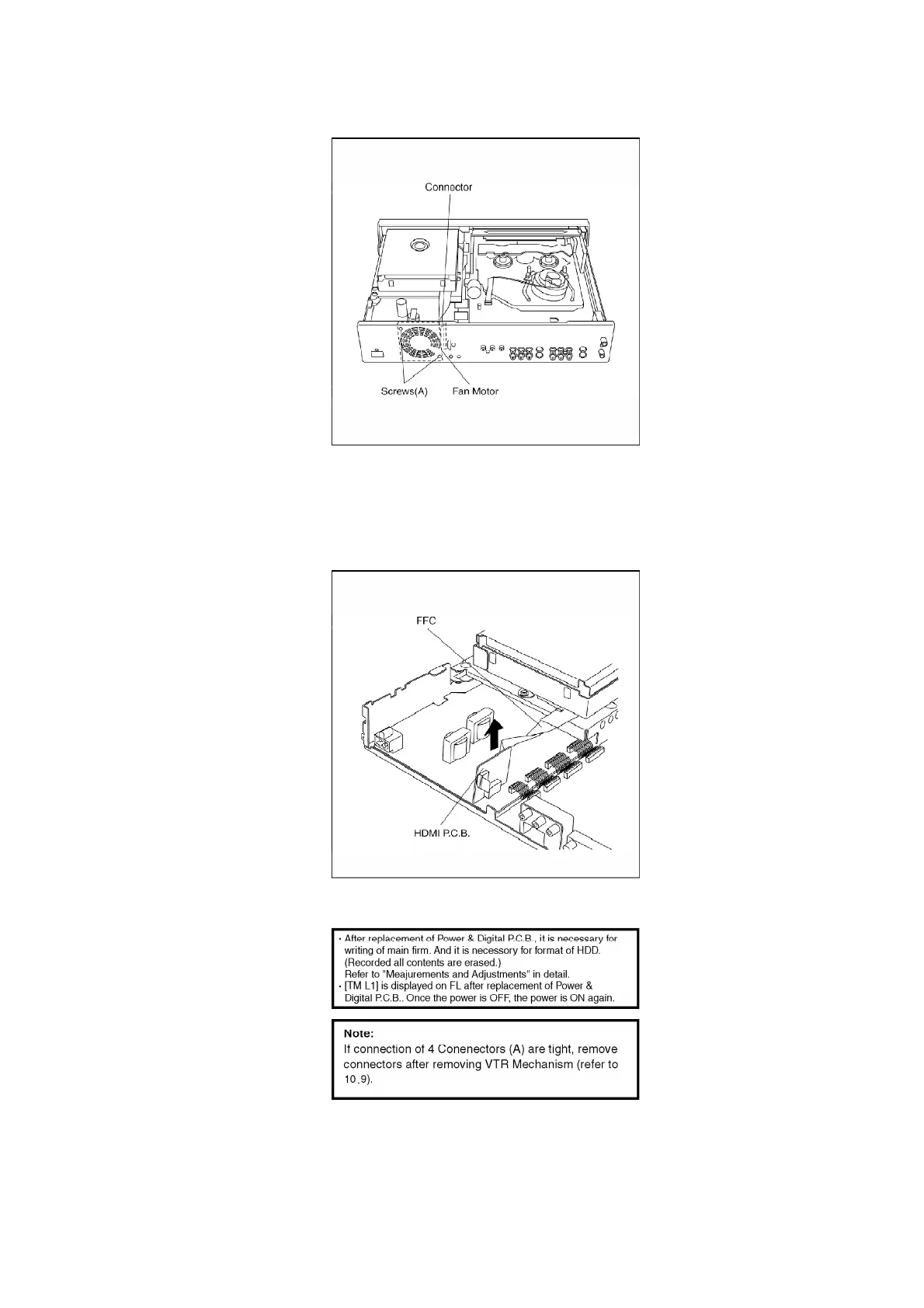

10.12. HDMI P.C.B.

1. Disconnect FFC.

2. Pull up HDMI P.C.B. for the direction of arrow.

10.13. Power & Digital I/F P.C.B.

1. Disconnect 5 Connectors (A).
