(*After "EPG" has been set up, this indication will not appear.)
3. Press [FUNCTIONS].
4. Select "TV GUIDE", and then press [ENTER].
5. Press [ENTER] to advance next stage.
6. Press [ENTER] to advance next stage.
7. Select "USA", and then press [ENTER].
8. Input "0 2 0 3 2", and then press [ENTER].
9. Select "Yes", and then press [ENTER].
10. Select "Yes", and then press [ENTER].
11. Select "Ch3", and then press [ENTER].
12. Press [ENTER].
13. Select "Not Listed", and then press [ENTER].

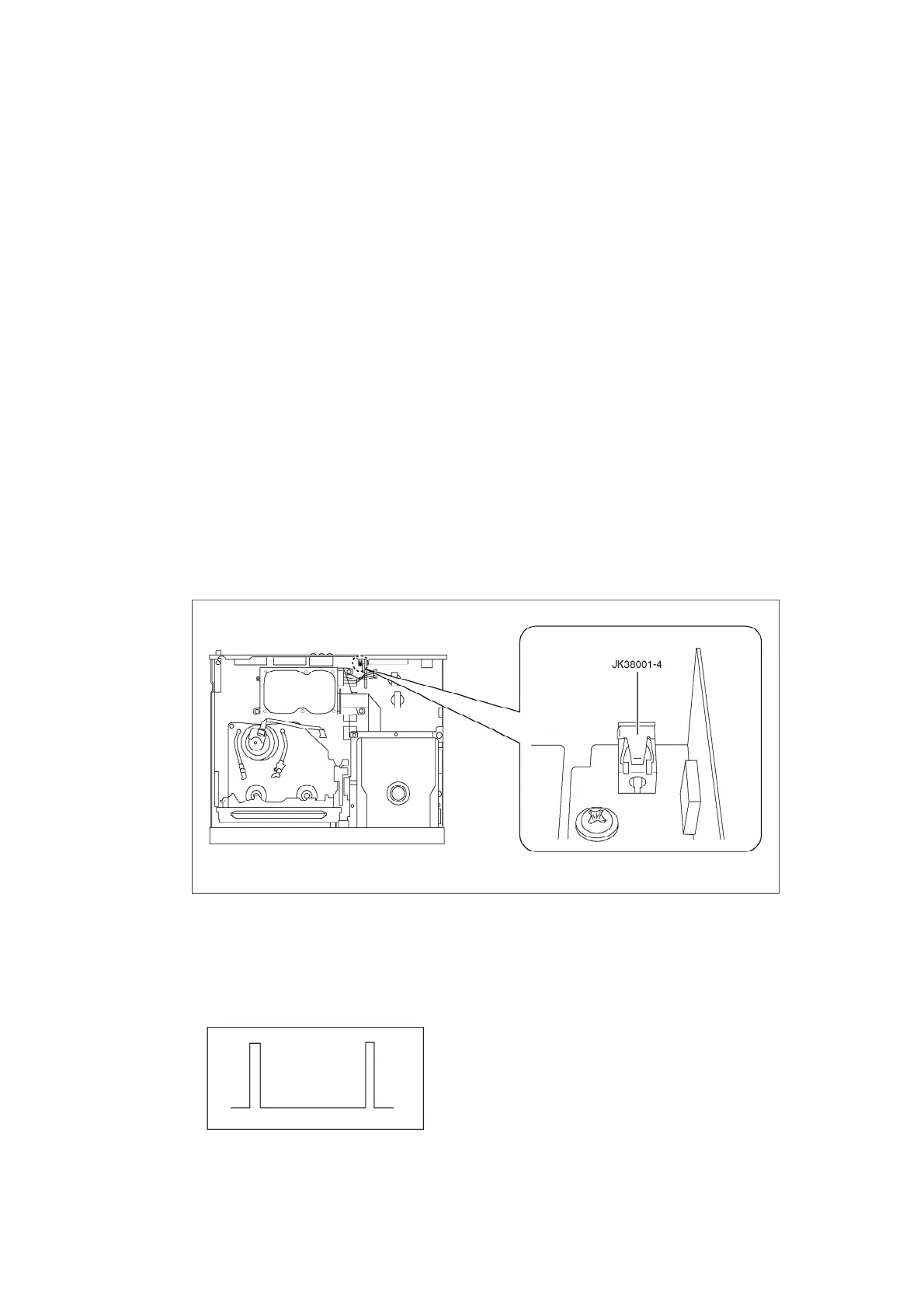

14. Connect scope to JK38001-4
15. Press [ENTER], and then if the P.C.B. is "OK", pulse signals of
approx. 4.5Vp-p are output twice from JK38001-4.
(When you want to check again, select "Test this code again" and
press [ENTER], then Pulse signals are output again.
*Recommended ranges of the Oscilloscope:
