Panasonic DMR-XW380EB

40
9 Disassembly and Assembly Instructions
9.1. Unit
9.1.1. Disassembly Flow Chart

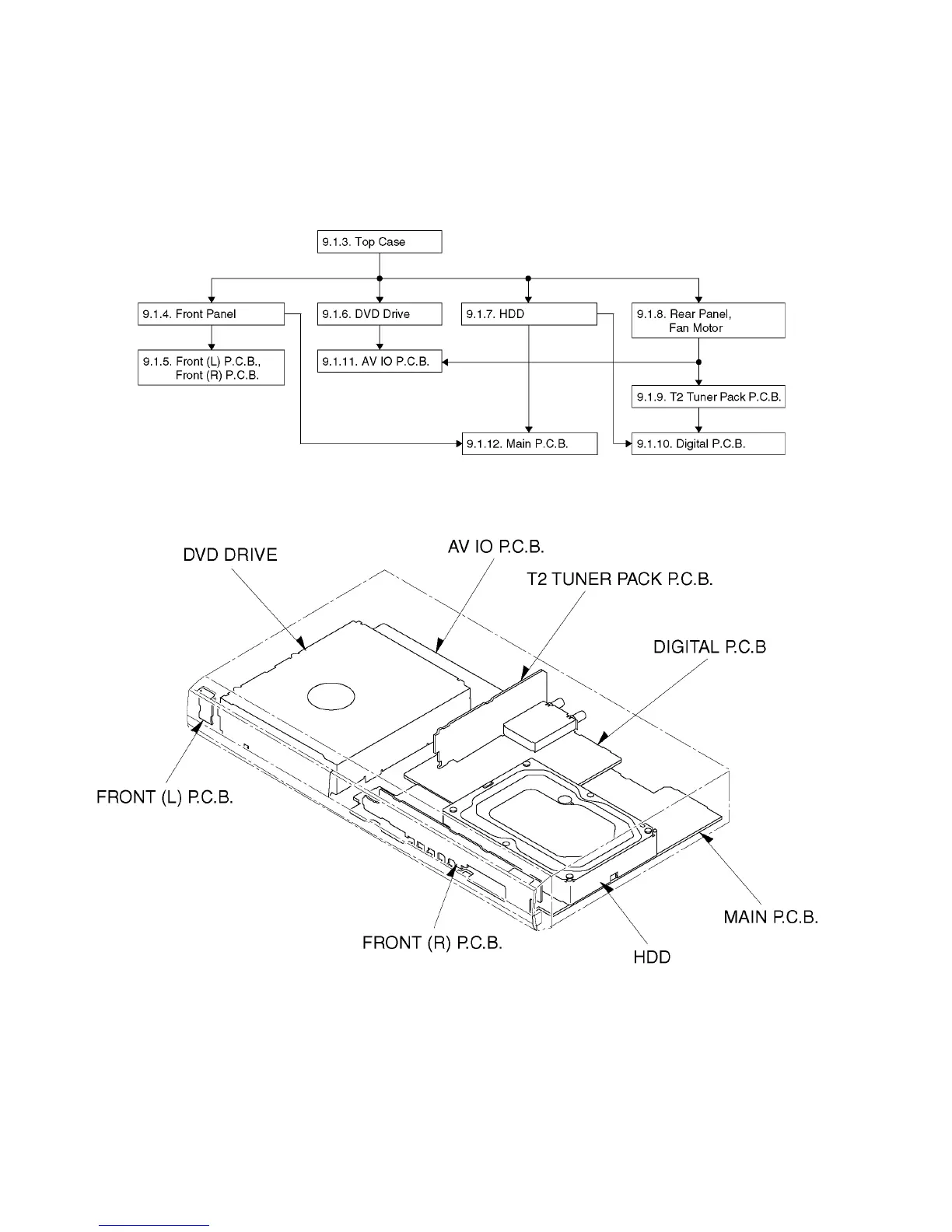

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the ser-
vicing.
To assemble the unit, reverse the steps shown in the chart below.
9.1.2. P.C.B. Positions
