9.2. DVD Drive
9.2.1. Disassembling of Traverse Base
Ass’y, Drive P.C.B. and SW P.C.B.
Though the Traverse Base Ass’y, Drive P.C.B. and SW P.C.B.
are not supplied as Replacement Parts, these are necessary to
disassemble for when other parts are replaced.

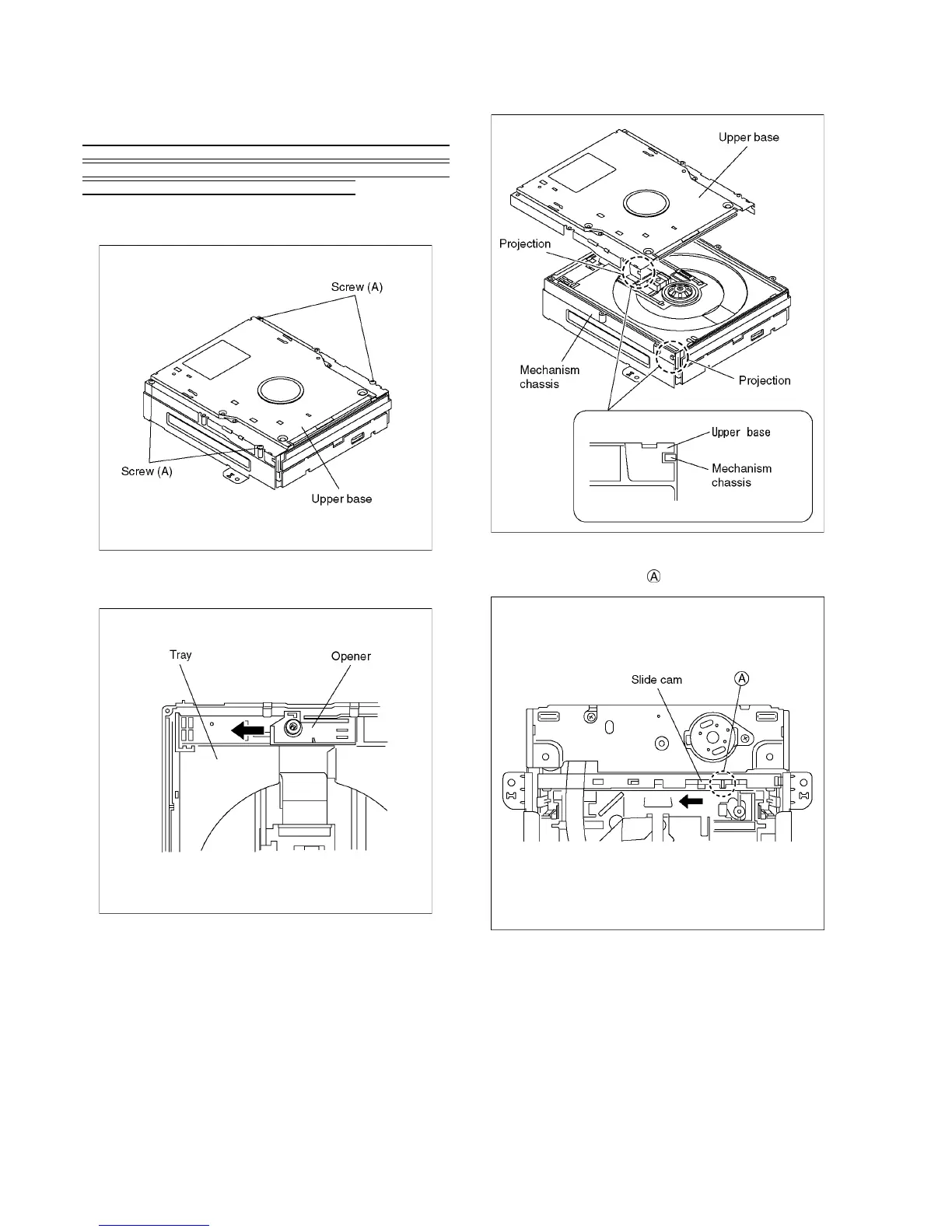

1. The 4 Screws (A) are unscrewed.
2. The Upper base unit lifted and remove it.
Notes for installation of Upper base
a. The Opener of Tray is slide into outside fully.
b. The concave of fore of Upper base is fit into the pro-
jection of Mechanism chassis to install it.
3. The unit is turned upside down and slide in the arrow
direction while pinching .
