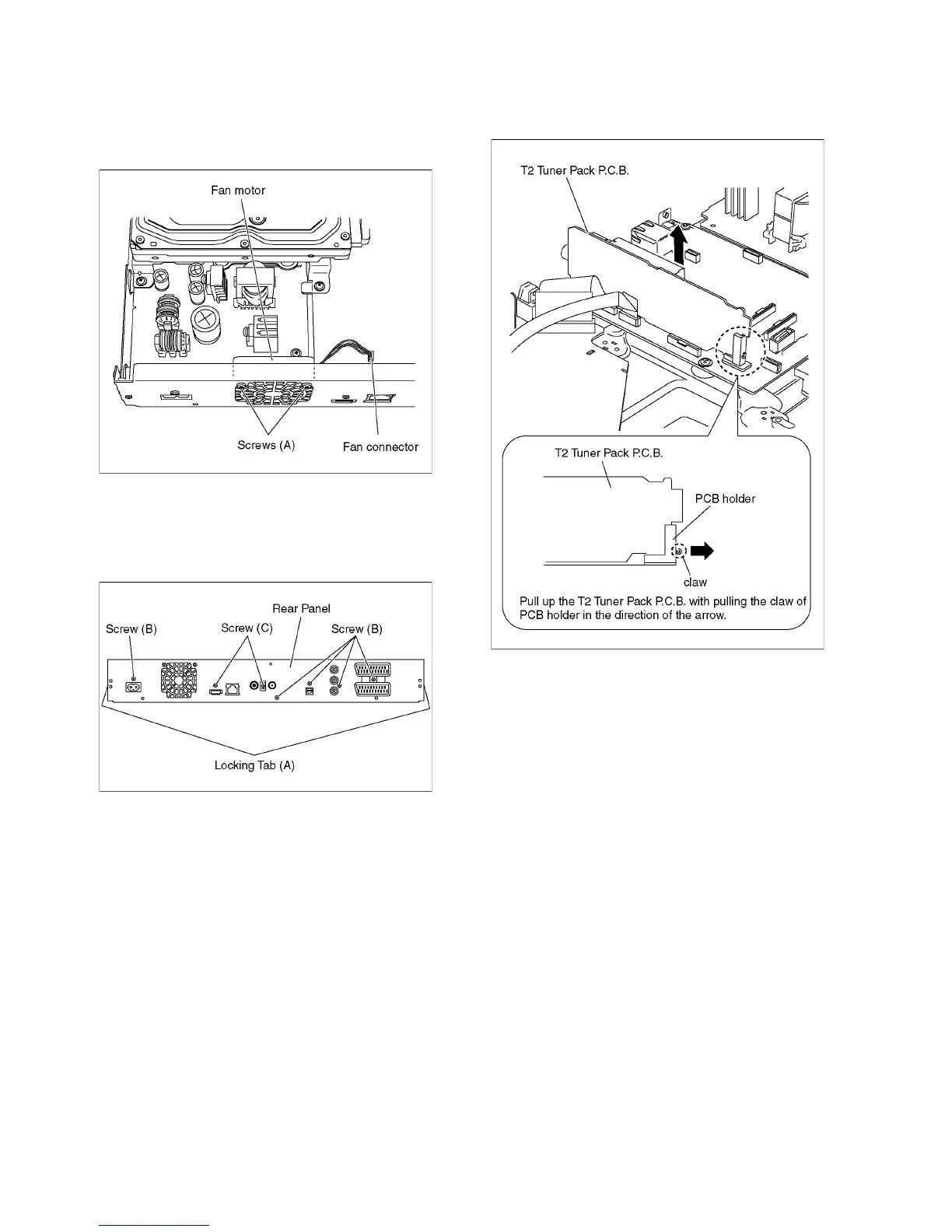

9.1.8. Rear Panel, Fan Motor
9.1.8.1. Only Fan Motor
1. Remove 2 Screws (A) and disconnect the Fan connector.
2. Remove Fan Motor.
9.1.8.2. Rear Panel with Fan Motor
1. Remove 5 Screws (B) and 2 Screws (C).
2. Disconnect the fan connector and unlock 2 locking tabs
(A) to remove Rear Panel.
9.1.9. T2 Tuner Pack P.C.B.
1. Pull out the T2 Tuner Pack P.C.B. in the direction of the
arrow with pulling the claw of PCB holder.
