Panasonic DMR-XW380EB

S-3
S2.2. AV_IO P.C.B.
REF No. PIN No. REC PB EE
IC3001 1 0 0 0
IC3001 2 2.5 2.5 2.5
IC3001 3 0 0 0
IC3001 4 0 0 0
IC3001 5 5 5 5
IC3001 6 0.4 0.4 0.4
IC3001 7 0.4 0.4 0.4
IC3001 8 0.4 0.4 0.4
IC3001 9 5 5 5
IC3001 10 0.4 0.4 0.4
IC3001 11 0 0 0
IC3001 12 1.4 1.4 1.4
IC3001 13 5 5 5
IC3001 14 1.4 1.4 1.4
IC3001 15 0 0 0
IC3001 16 1.8 1.8 1.8
IC3001 17 0 0 0
IC3001 18 0 0 0
IC3001 19 0 0 0
IC3001 20 0 0 0
IC3001 21 0 0 0
IC3001 22 0 0 0
IC3001 23 0.2 0.2 0.2
IC3001 24 5 5 5
IC3001 25 0.8 0.8 0.8
IC3001 26 4.8 4.8 4.8
IC3001 27 2 2 2
IC3001 28 5 5 5
IC3001 29 11.6 11.6 11.6
IC3001 30 5 5 5
IC3001 31 2.5 2.5 2.5
IC3001 32 0.3 0.3 0.3
IC3001 33 2.1 2.1 2.1
IC3001 34 3.2 0 3.2
IC3001 35 1 1 1
IC3001 36 3 3 3
IC3001 37 3 3 3
IC3001 38 0.8 0.8 0.8
IC3001 39 0 0 0
IC3001 40 0.6 0.6 0.6
IC3001 41 0 0 0
IC3001 42 0.3 0.3 0.3
IC3001 43 5 5 5
IC3001 44 0.3 0.3 0.3
IC3001 45 0 0 0
IC3001 46 0.3 0.3 0.3
IC3001 47 1.6 1.6 1.6
IC3001 48 4.5 4.5 4.5
IC3001 49 4.5 3.8 4.5
IC3001 50 0 0 0
IC3001 51 0 0 0
IC3001 52 9 9 9
IC3001 53 0 0 0
IC3001 54 4.5 3.8 4.5
IC3001 55 0 0 0
IC3001 56 0 0 0
IC3001 57 9 9 9
IC3001 58 4.5 4.5 4.5
IC3001 59 4.5 4.5 4.5
IC3001 60 0 0 0
IC3001 61 4.5 4.5 4.5
IC3001 62 4.5 4.5 4.5
IC3001 63 0 0 0
IC3001 64 0 0 0
IC3004 1 5.9 5.9 5.9
IC3004 2 0 0 0
REF No. PIN No. REC PB EE
IC3004 3 4.8 4.8 4.8
IC3004 4 - - -
IC3004 5 5 5 5
IC3005 1 5.9 5.9 5.9
IC3005 2 0 0 0
IC3005 3 3.1 3.1 3.1
IC3005 4 - - -
IC3005 5 5 5 5
IC4901 1 5.9 5.9 5.9
IC4901 2 0 0 0
IC4901 3 3.3 3.3 3.3
IC4901 4 - - -
IC4901 5 5 5 5
P3001 1 -1.1 -1.1 3.3
P3001 2 1.7 1.7 1.7
P3001 3 3.3 3.3 3.3
P3001 4 2.1 2.1 2.1
P3001 5 3.2 0 3.2
P3001 6 1 1 1
P3001 7 0 0 0
P3001 8 3 3 3
P3001 9 3 3 3
P3001 10 0 0 0
P3001 11 0.8 0.8 0.8
P3001 12 0.6 0.6 0.6
P3001 13 0 0 0
P3001 14 0.3 0.3 0.3
P3001 15 0.3 0.3 0.3
P3001 16 0.3 0.3 0.3
P3001 17 0 0 0
P3001 18 0 0 0
P3001 19 0 0 0
P3001 20 0 0 0
P3001 21 5 5 5
P3001 22 0 0 0
P3001 23 3.3 3.3 3.3
P3001 24 3.3 3.3 3.3
P3001 25 0 0 0
P3001 26 0 0 0
P3001 27 0 0 0
P3001 28 0 0 0
P3001 29 0 0 0
P3001 30 0 0 0
P3002 1 5.9 5.9 5.9
P3002 2 12.4 12.4 12.4
P3002 3 12.4 12.4 12.4
P3002 4 0 0 0
P3002 5 12.4 12.4 12.4
P3002 6 3.1 3.1 3.1
P3002 7 0 0 0
P3002 8 0 0 0
P3002 9 0 0 0
P3002 10 0 0 0
P3002 11 4.4 4.4 4.4
Q4001 E 11.7 11.7 11.7
Q4001 C 11.6 11.6 11.6
Q4001 B 11 11 11
QR4001 E 0 0 0
QR4001 C 0 0 0
QR4001 B 4.8 4.8 4.8

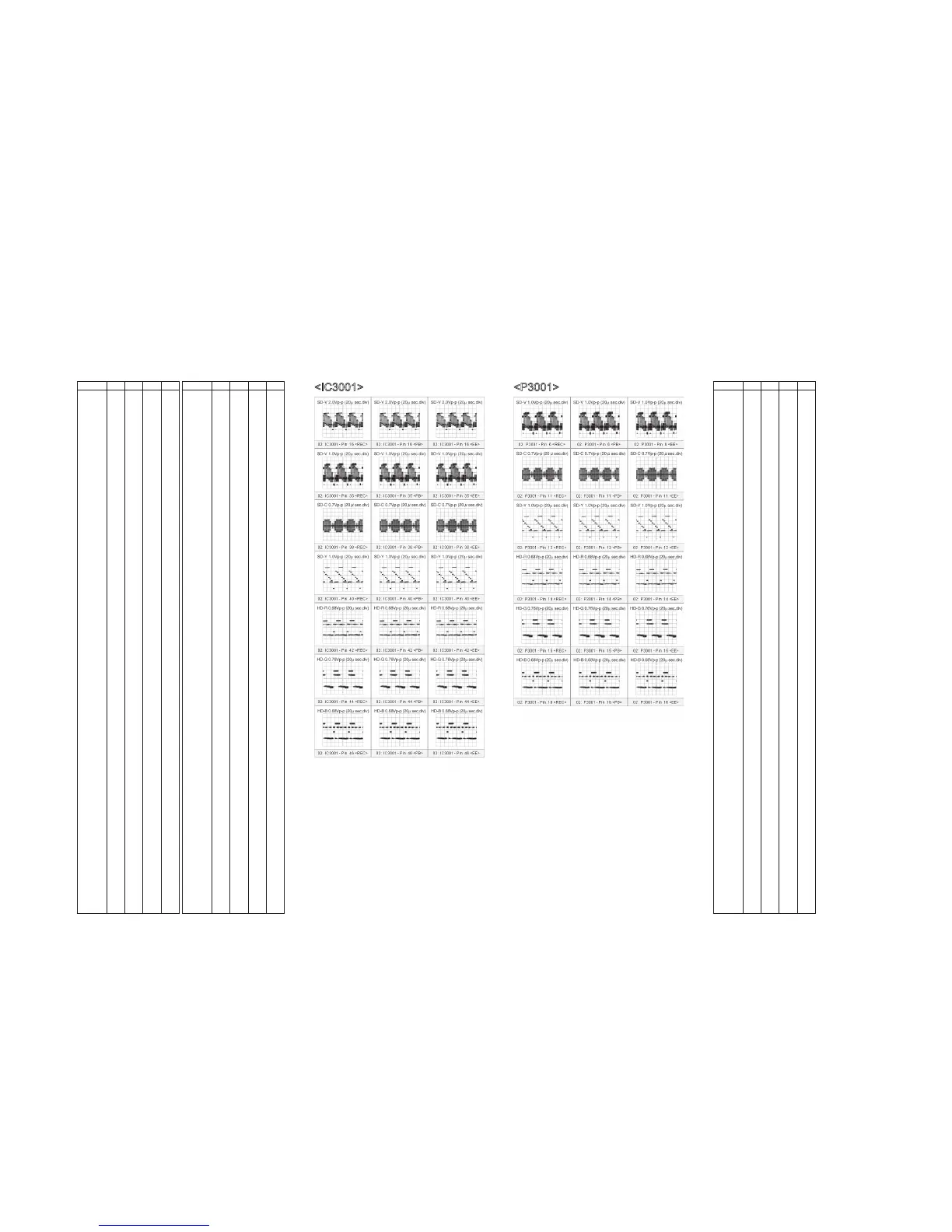

<IC3001> <P3001>
S2.3. Front_R_FL P.C.B.
REF No. PIN No. REC PB EE
IC7201 1 - - -
IC7201 2 3.3 0 0
IC7201 3 3.3 0 0
IC7201 4 - - -
IC7201 5 2.8 2.8 2.8
IC7201 6 0.1 0.1 0.1
IC7201 7 0.1 0.1 0.1
IC7201 8 3.1 3.1 3.1
IC7201 9 2.9 2.9 2.9
IC7201 10 0 0 0
IC7201 11 0 0 0
IC7201 12 0 0 0
IC7201 13 3.3 3.3 3.3
IC7201 14 -17.6 -17.6 -20.5
IC7201 15 -17.6 -17.6 -20.5
IC7201 16 -9.1 -9.1 -20.5
IC7201 17 -17.6 -17.6 -17.5
IC7201 18 -20.5 -20.5 -20.5
IC7201 19 -17.7 -17.7 -20.5
IC7201 20 -6.4 -6.4 -20.5
IC7201 21 -14.8 -14.8 -17.7
IC7201 22 -0.1 -0.1 -15
IC7201 23 -9.2 -9.2 -12
IC7201 24 -9.2 -9.2 -20.5
IC7201 25 -17.7 -17.7 -20.5
IC7201 26 -20.5 -20.5 -20.5
IC7201 27 -20.5 -20.5 -20.5
IC7201 28 -20.5 -20.5 -20.5
IC7201 29 -12 -12 -20.6
IC7201 30 -21.2 -21.2 -21.2
IC7201 31 - - -
IC7201 32 - - -
IC7201 33 - - -
IC7201 34 - - -
IC7201 35 - - -
IC7201 36 -18.2 -18.2 -18.2
IC7201 37 -18 -18 -18
IC7201 38 -18 -18 -18
IC7201 39 -18 -18 -18
IC7201 40 -18 -18 -18
IC7201 41 -18 -18 -18
IC7201 42 -18 -18 -18
IC7201 43 3.3 3.3 3.3
IC7201 44 0 0 0
Q7201 E -18.1 -18.1 -18.1
Q7201 C 3.3 3.3 3.3
Q7201 B -18 -18 -18
QR7201 E 0 0 0
QR7201 C 0 3 3
QR7201 B 3.3 0 0
QR7202 E 0 0 0
QR7202 C 0 3 3
QR7202 B 3.3 0 0
