9.1.3. Top Case

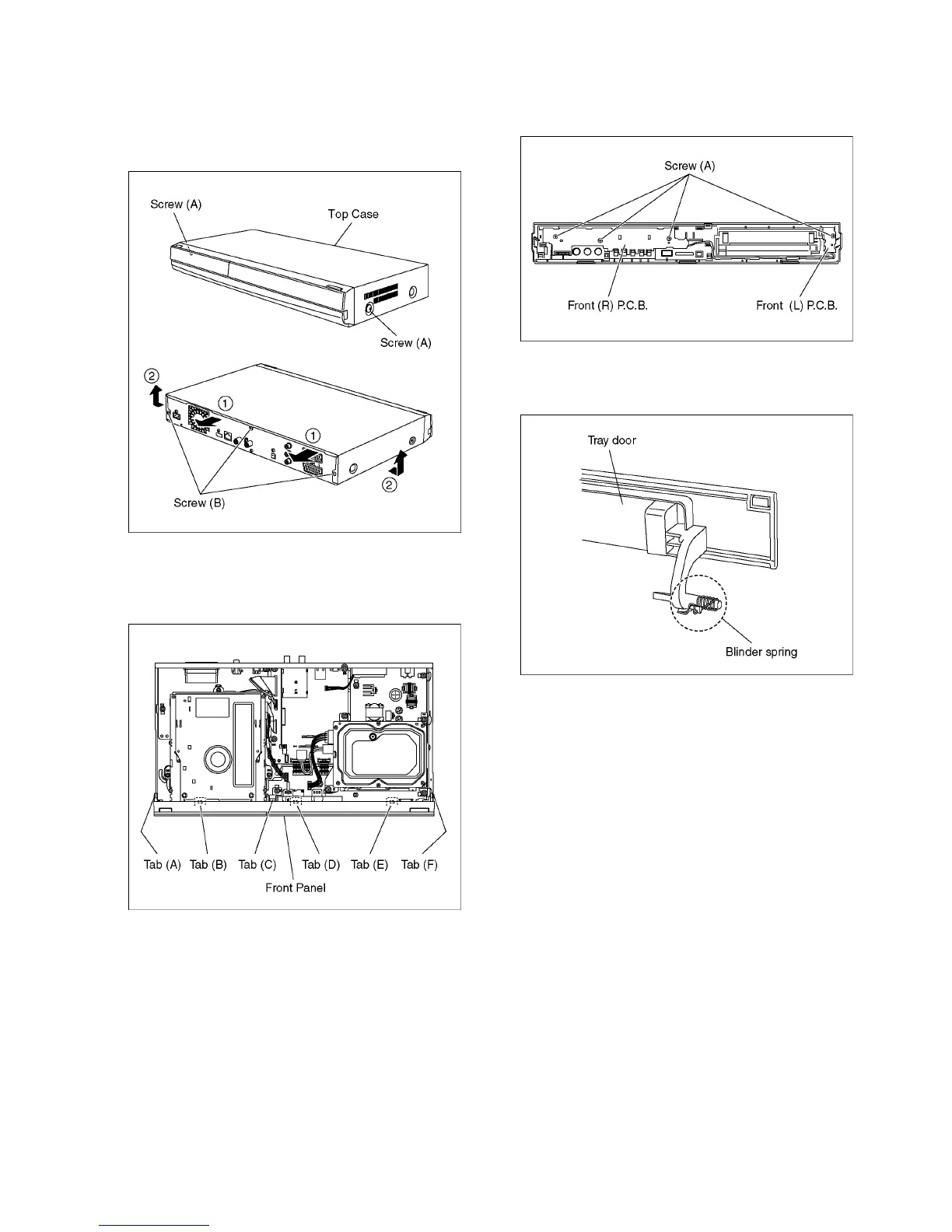

1. Remove 2 Screws (A) and 3 Screws (B).
2. Slide the Top Case rearward and open the both ends at
rear side of the Top Case a little and lift the Top Case in
the direction of the arrows.
9.1.4. Front Panel
1. Unlock 6 tabs (A) - (F).
2. Pull the Front Panel toward the direction of your side.
9.1.5. Front (L) P.C.B., Front (R) P.C.B.
1. Remove 4 Screws (A) to remove the Front (L) and Front
(R) P.C.B.
9.1.5.1. How to assemble Tray door
1. Attach the Blinder spring to Tray door as follows.
