Panasonic DMR-XW380EB

45

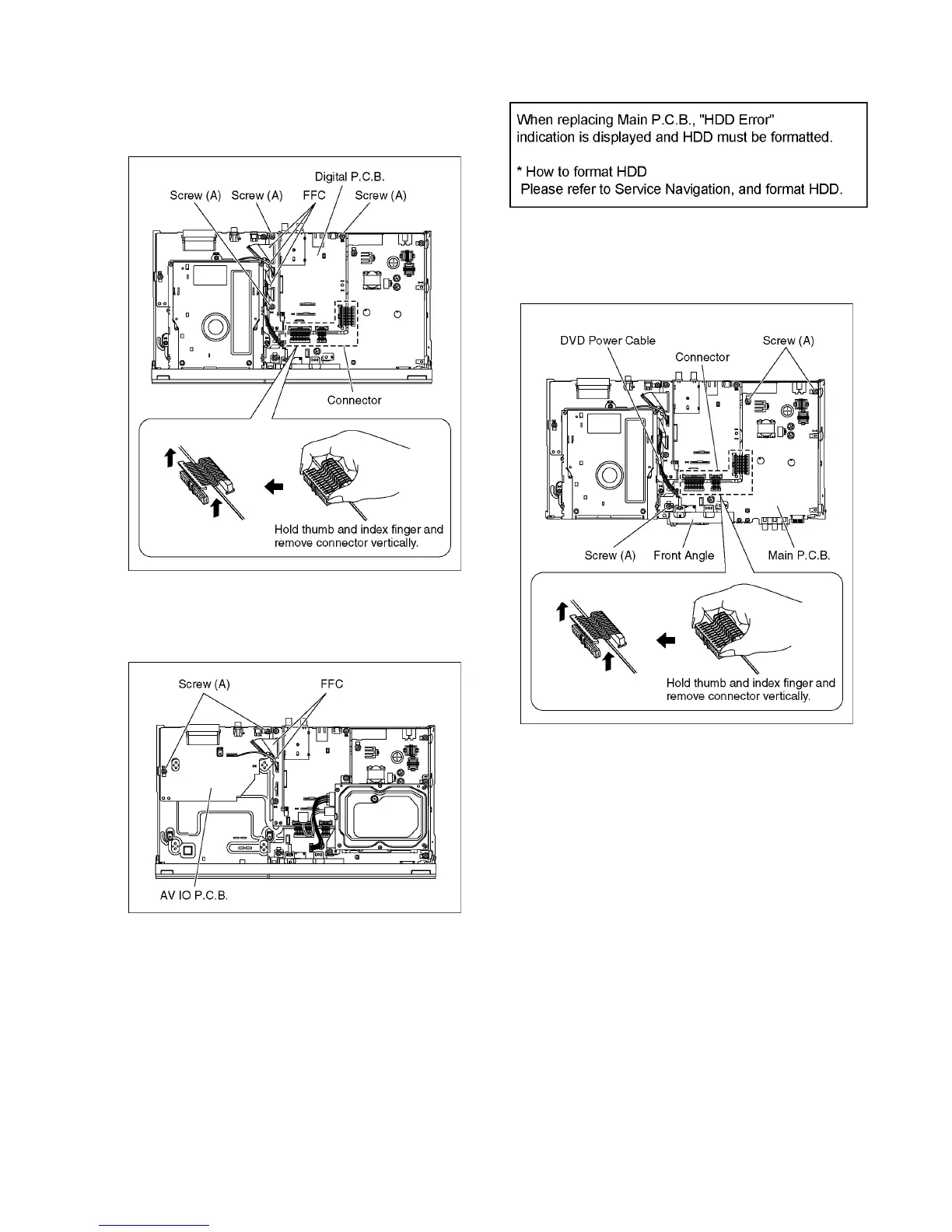

9.1.10. Digital P.C.B.
1. Disconnect 3 FFCs.
2. Disconnect 3 connectors.
3. Remove 3 Screws (A) to remove Digital P.C.B.
9.1.11. AV IO P.C.B.
1. Disconnect 2 FFCs.
2. Remove 2 Screws (A) to remove AV IO P.C.B.
9.1.12. Main P.C.B.
1. Disconnect DVD Power Cable.
2. Disconnect 3 connectors.
3. Remove 3 Screws (A) and Front Angle to remove Main
P. C .B .
