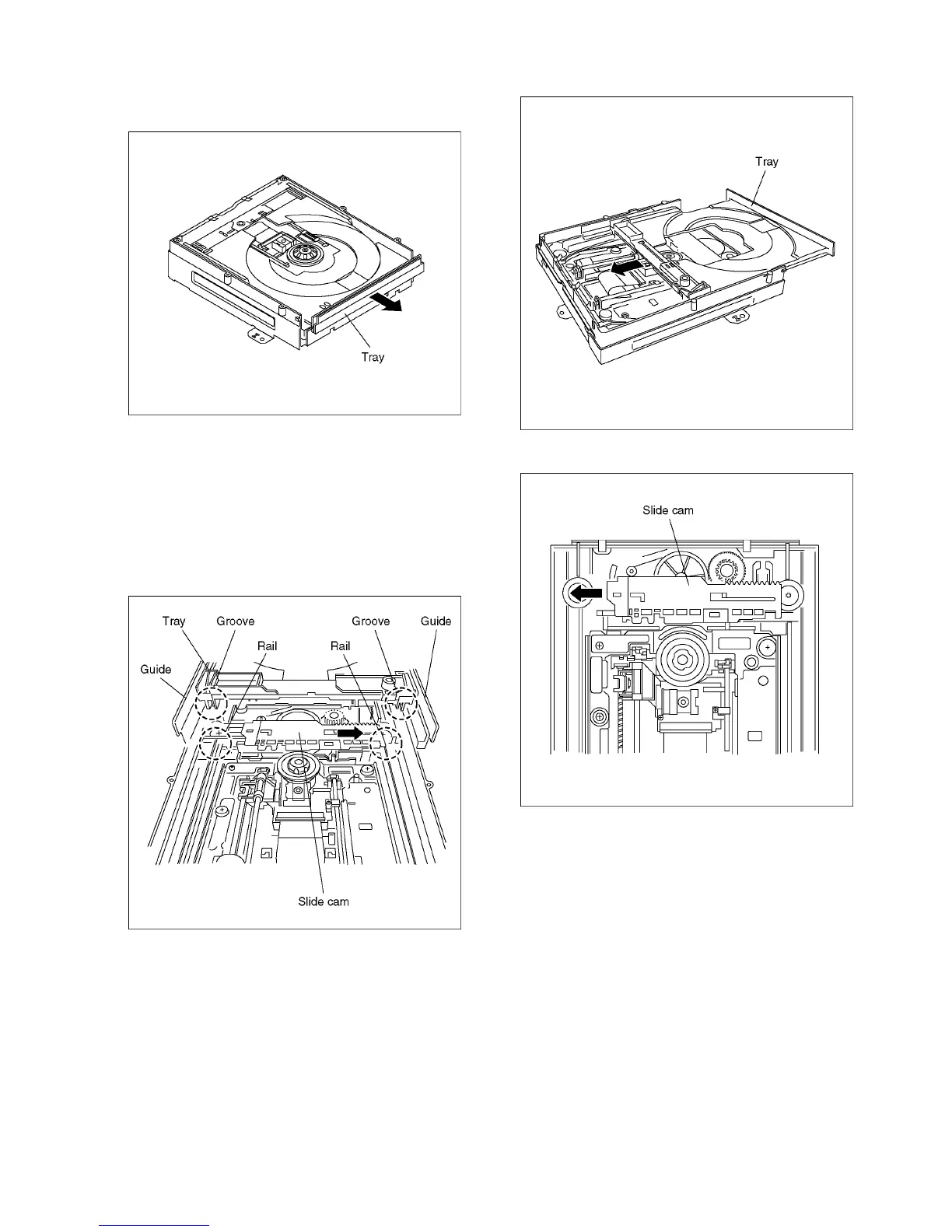

4. The Tray comes out in front of about 1cm.
It is lightly pull in the arrow direction, Tray is removed
while lifting fore of the Drive.
Note:
If fore of the Drive is not lifted, the guide at the both
sides will not be slide to the back and can not remove
the Tray.
• Installation for Tray
a. The Slide cam is slide in the arrow direction fully.
Align groove on the back of the Tray and rail of
mechanism chassis as below.
In advance, guide is made to slide at the back.
b. The Tray is slide to the back forcibly.
5. The Slide cam is slide in the arrow direction fully.
