48

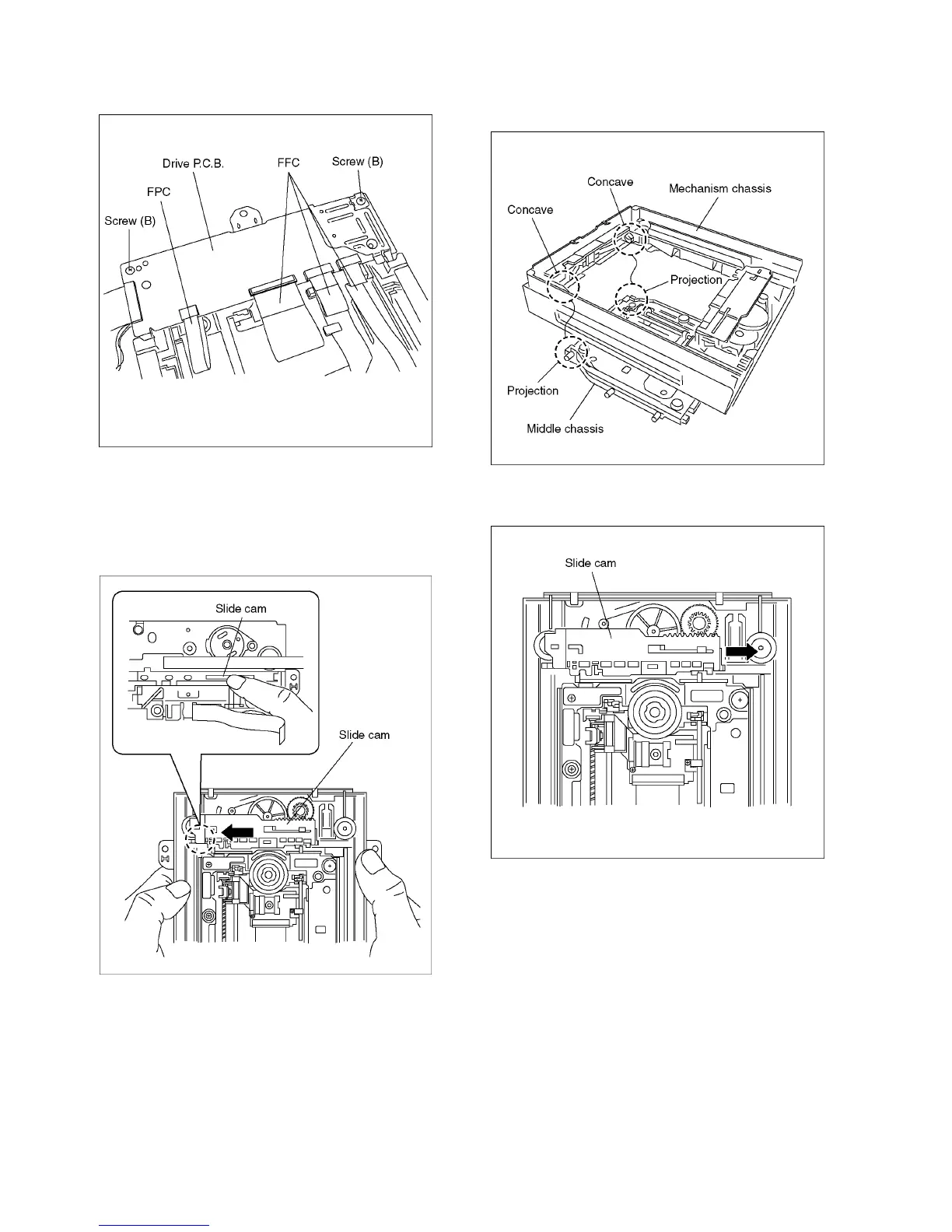

6. Remove 2 Screws (B), 3 FFCs and FPC to remove Drive
P. C. B.
7. The lever is pulled in the arrow direction while pushing
the lever of back of Slide cam with your finger.
Refer to procedure 3 for lever position.
Note:
Hold Traverse unit with your finger from bottom not to
fail it when Slide cam is pulled.
• Installation for Traverse unit
a. The 2 projection parts rearward of Middle chassis
are fitted into the concave of Mechanism chassis.
b. The fore of Traverse unit is set into the Slide cam
and slide in the arrow direction fully.
To Next Page
