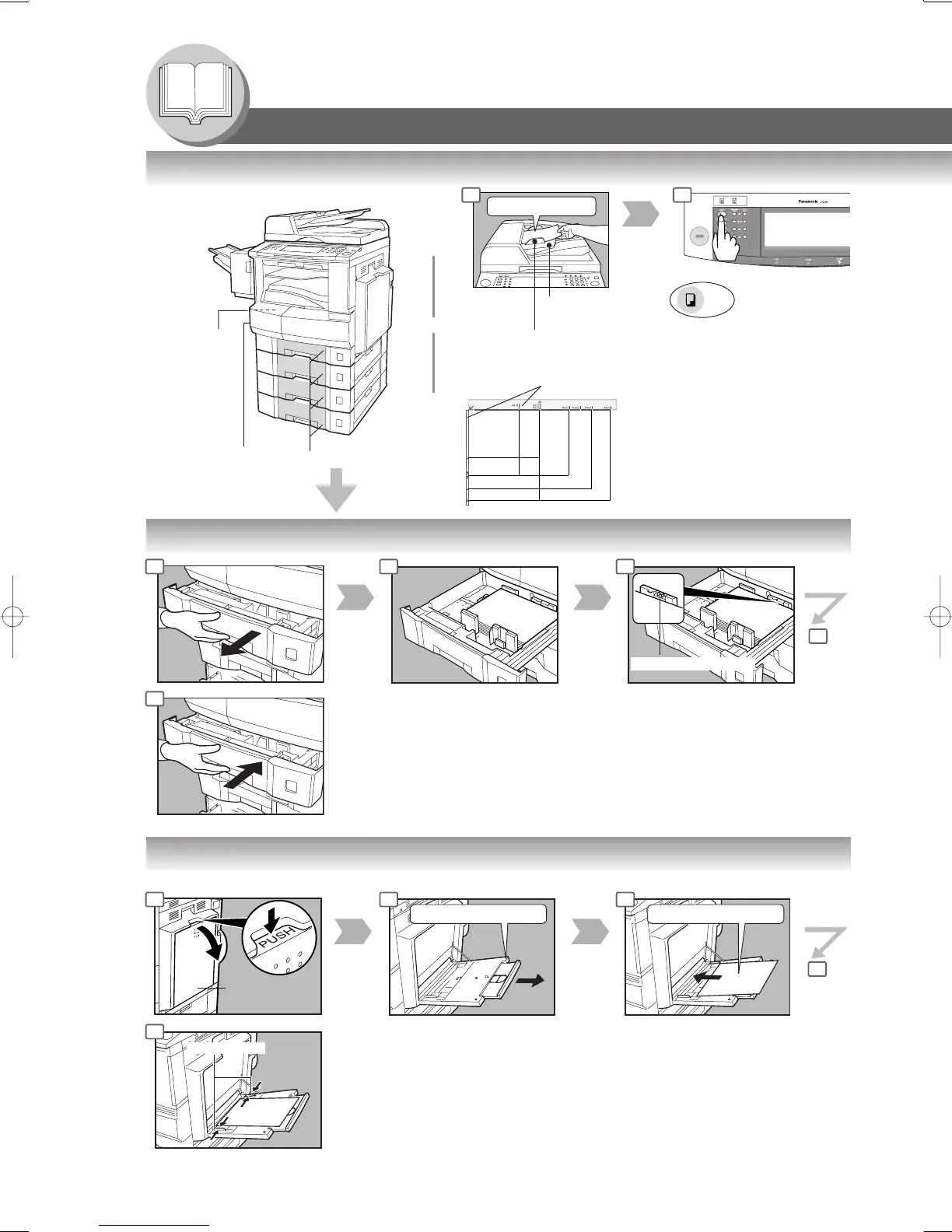

Getting To Know Your Machine
Operation Chart
If other function
is in use
*30 originals (B4/A3)
Face Up
Original Guides
Adjust to the original’s width
From
i-ADF/
ADF
From
Platen
Glass
Load Paper
Turn the Power
Switch On
(Left side of the
copier)
Face down
● If the original is not positioned
properly, a portion of the original
may not be copied.
● For originals smaller than A5
size, position the original within
the A5 area and select A5.
or
Tray
Max. 50 originals*
● Adding Paper (Paper Tray)
● Adding Paper (Sheet Bypass)
Copying on Special Paper, etc.
Paper Weight: 60-90 g/m
2
Paper Capacity: 550 Sheets (75 g/m
2
)
Load paper lower than Side Guides
Approximately up to 50
A4 size sheets / 75 g/m
2
Paper Weight: 55-133 g/m
2
Turn the Main
Power Switch
On
(Located on
the back of the
Copier)
(See page 8)
Original Guides
■ Basic Operation
A5
A5-R
A4-R
A3
B4
A4
COPY
Max Level Indicator
Sheet Bypass
Until it Stops Face Down
Side Guides
Adjust the side guides.
Incorrect adjustment may cause the
paper to wrinkle, misfeed or skew.
NOTE:
When paper size is not detected,
remove paper and press Reset Key.
Then, load paper again.
NOTE:
When changing the paper size, refer to page 60.
