COPY Key
● Press when using the unit as a photocopier.
ENERGY SAVER Key
● Can save power while the copier is not in use.
INTERRUPT Key
● Interrupts other copy or print jobs while making copies.
FUNCTION Key
● Use when changing the paper size, initial values for functions (default values) and key operator settings.
RESET Key
● Resets all features to the initial power-on state.
CLEAR Key
● Clears the copy count in the display.
STOP Key
● Stops the copy run.
ALARM LED (RED)
● Lights when trouble occurs.
∗∗
ACTIVE LED (GREEN)
● Lights when machine is active.
PRINT DATA LED (GREEN)
● Lights when print data receive.

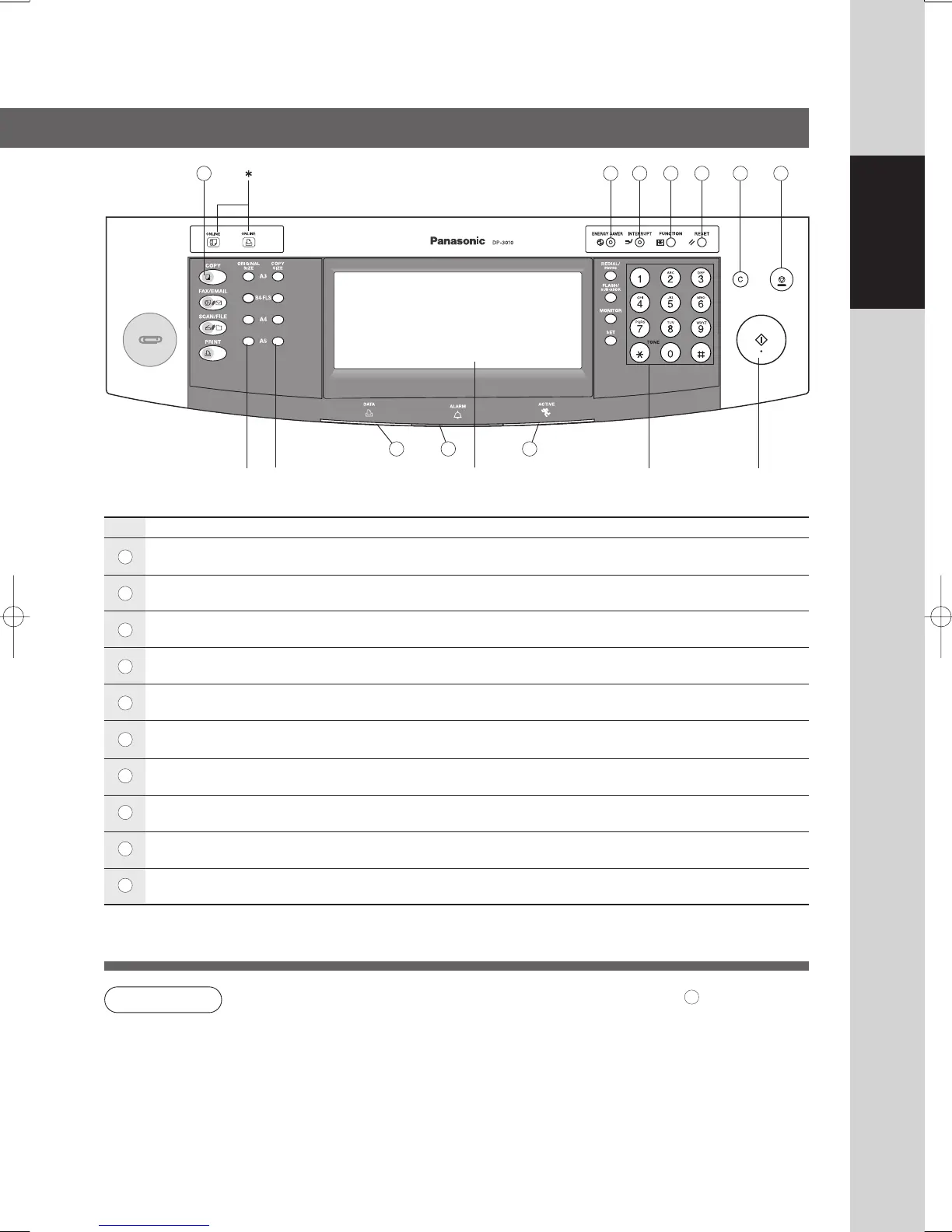

ORIGINAL
SIZE Keys
COPY SIZE
Keys
Touch Panel
Display
Keypad START
Key
∗∗
When the machine detects a problem or an alarm status is activated, the 8 Alarm LED lights
up or begins to flash.
LED Lights: Machine detected a trouble status
• No paper in the selected tray or toner has run out.
• Machine detected trouble, such as paper misfeed or jam.
LED Flashes: Machine detected an alarm status
• No paper in the tray. (tray not selected)
• Running low on toner etc.
● The Control Panel displayed above shows only copier functions. Please refer to the appropri-
ate operating instructions for other control panel functions.
∗
FAX/EMAIL ON LINE LED for optional FAX/Email functions
Print ON LINE LED for Printer function
