Panasonic DVD-RV31

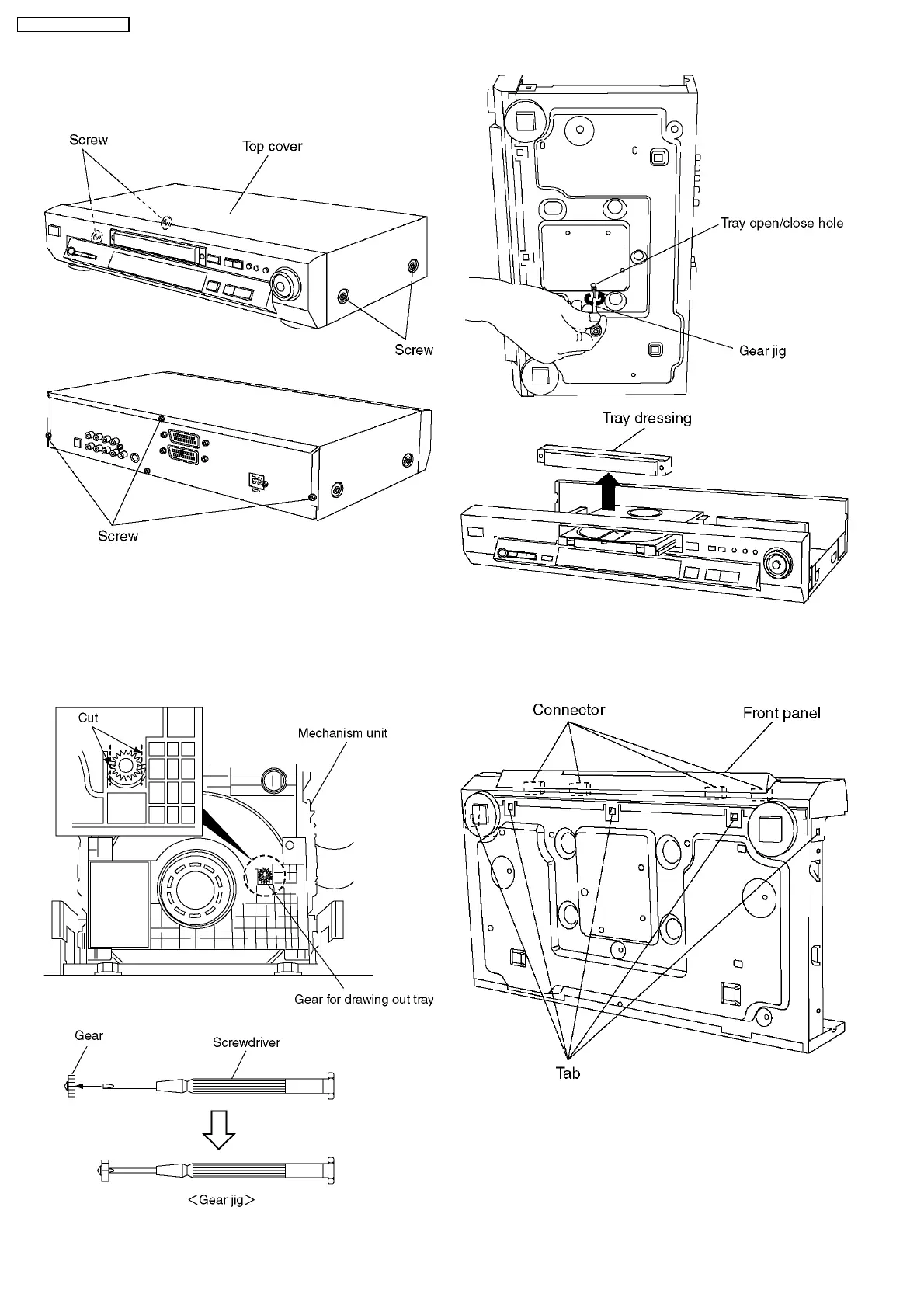

5.3. Top Cover
1. Unscrew the screws.
5.4. Tray
1. Pull the tray out of the mechanism unit. Remove the gear
and install it onto a screwdriver to make a gear jig.
2. Insert the gear jig into the tray open/close hole.
3. Turn the gear jig counterclockwise to open the tray.
4. Remove the tray dressing from the tray section.
5.5. Front Panel
1. Release the tabs.
2. Remove the connectors.
8
DVD-RV31 / DVD-RV41
