9 Disassembly and Assembly Instructions
Caution in Disassembly/Assembly
• Be careful not to cut the cloth, Hoses, or Lead wires when cutting cable ties.
• Bind the cable ties on the white tapes on the Lead wires.

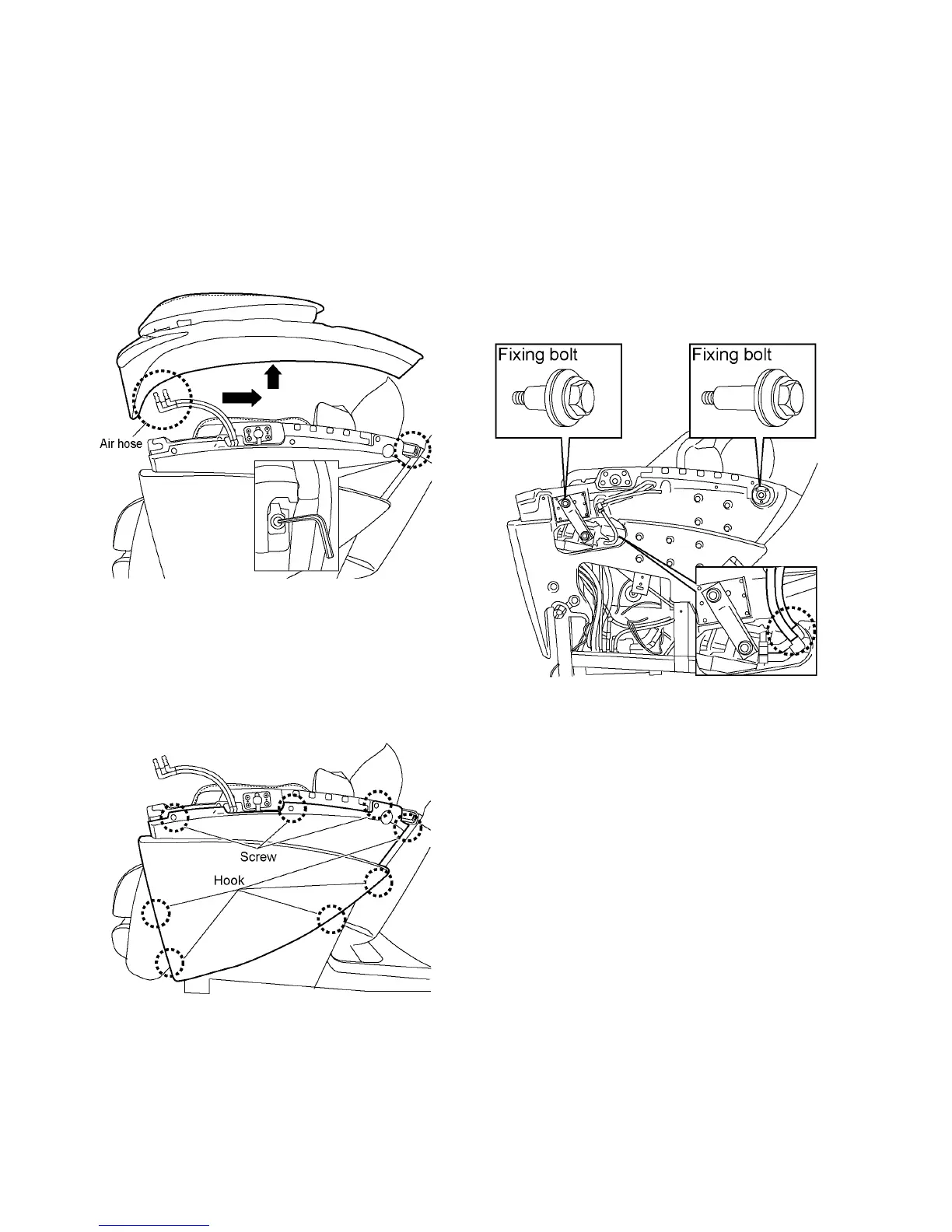

9.1. Removing the Armrests
1. Remove Air hoses (two each on right/left sides).
2. Remove a screw each on right/left sides of the back of the
Armrests.
3. Slide the Armrest backward ( ) and lift it upward ( ) to
remove it.
9.2. Removing the Side covers
1. Remove the Armrests.
2. Remove three screws each on right/left sides and five
hooks each on right/left sides.
Caution
• The work would be easy if you insert the hook in the front of
the Side cover (two each on right/left) first.
9.3. Removing the Elbow bases
1. Remove the Armrest.
2. Remove the Side cover.
3. Remove two bolts each on right/left sides of the Elbow
bases and two Belts on right/left sides, and remove the
Elbow base.
Caution
• When installing the Elbow base, be sure to install the
shorter bolt on the front and the longer bolt on the back.
To Next Page
