9.19. Tips of disassembly and assembly of the Massage mechanism block
9.19.1. Removing the Up/down sensor

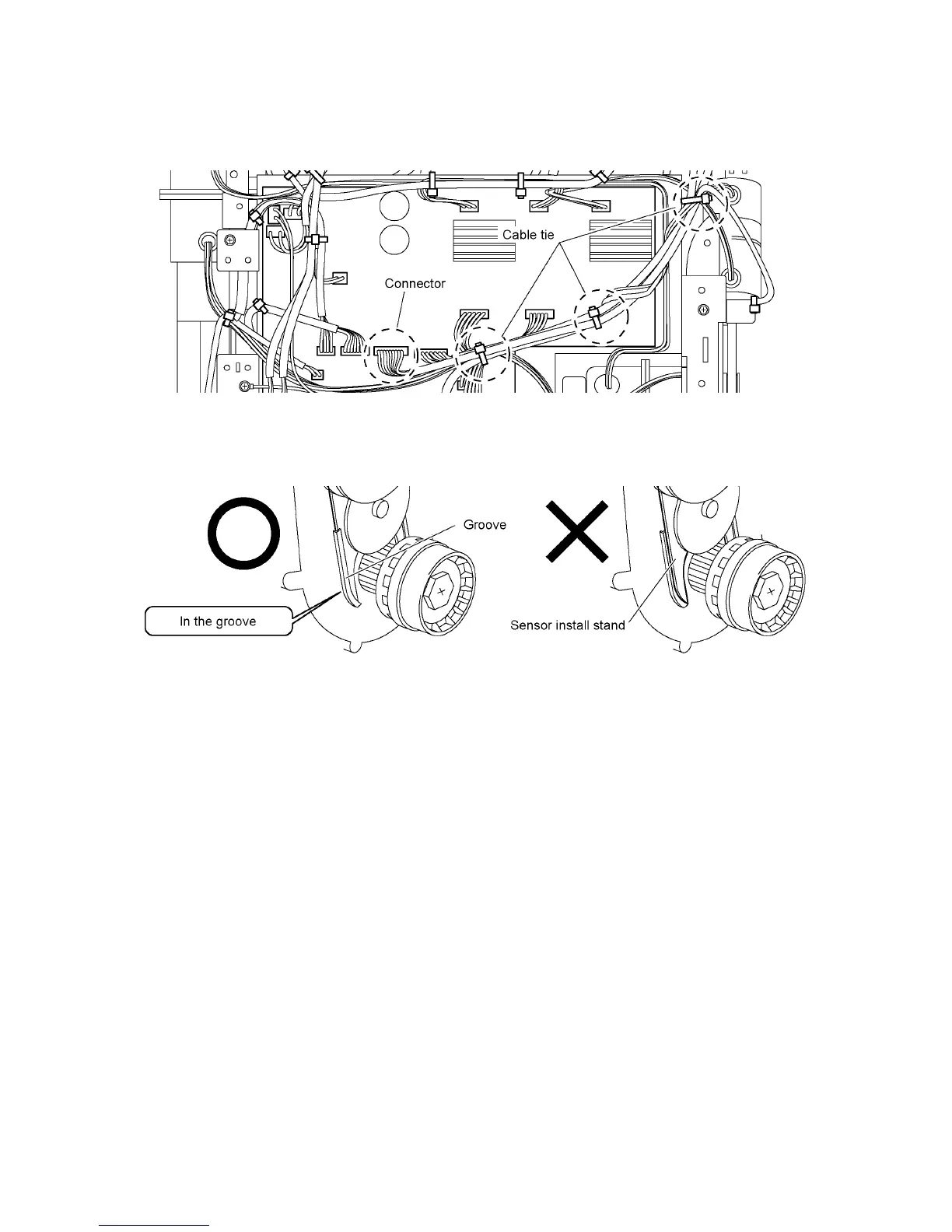

1. Disconnect the connector (CN106) on the Main PCB.
2. Cut the Cable tie T30R x 2, T18S x1, which bind the Lead wires.
3. Remove two screws on the Up/down gear box B and the Up/down sensor install stand, and remove the Up/down sensor.
Caution in installing
When installing the Up/down sensor, make the leg of the sensor install stand fit into the groove of the Up/down gear box B.
