Caution

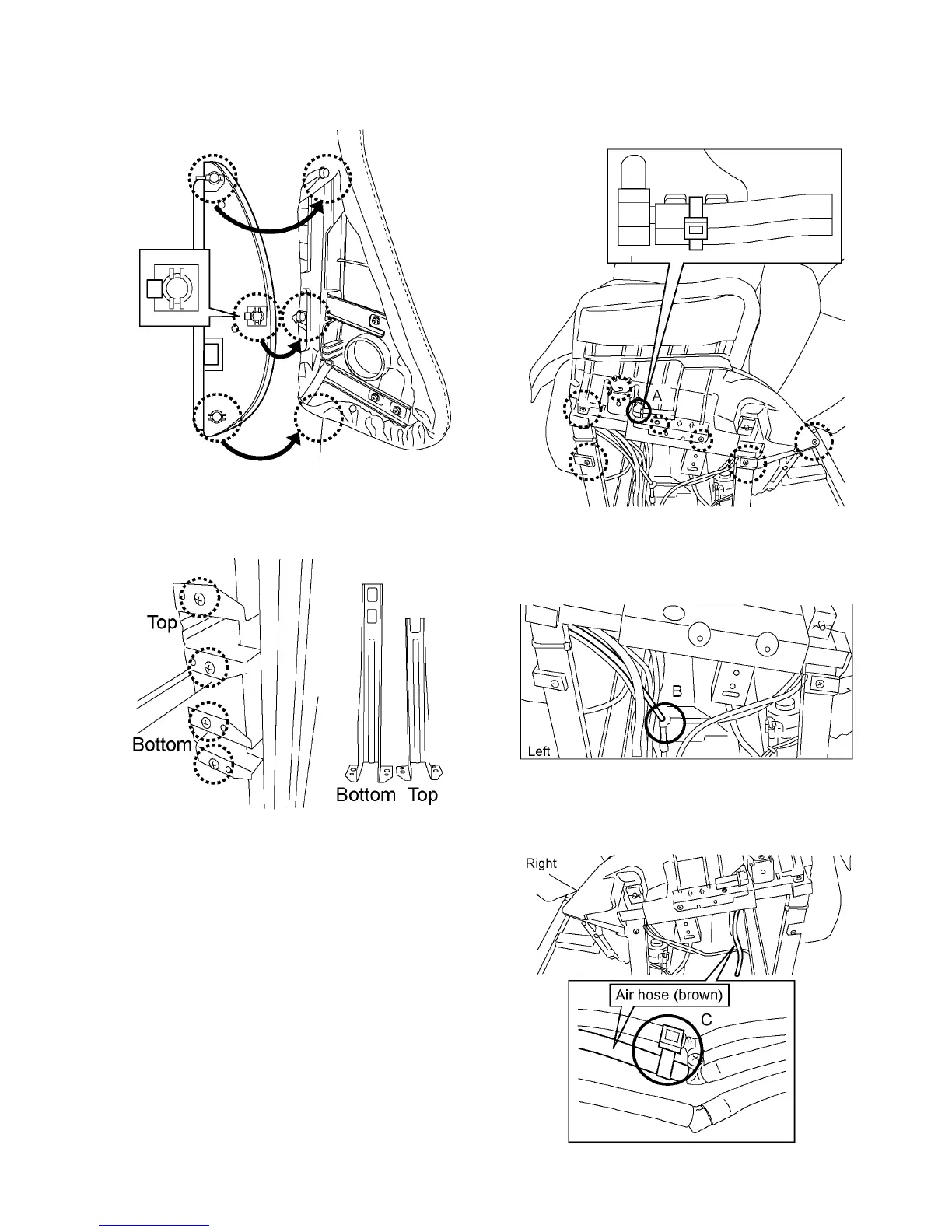

• Be careful of three hooks each on right/left sides of inner
side of the Side cover inside when installing.
• When removing the Shoulder side plate, remove four screws
each on right/left sides on the back side of the Rear frame
and remove the Shoulder side plate.
9.8. Removing the Seat side unit
1. Remove the Armrest.
2. Remove the Side cover.
3. Remove the Elbow base.
4. Remove seven screws fixing the Inside cover and the
Inside cover fitting.
Caution
• When you installing the Seat side unit, the work would be
easier if you tighten seven screws halway first and
tighten them fully.
5. Cut Cable ties and remove two Hoses each of right/left
sides.
Caution
• When assembling, pass the Hose through the hole of A.
9.8.1. Removing the Seat side unit left
1. Proceed the procedures of Removing the Seat side unit.
2. In the position of B, remove the green Hose and remove
the Seat side unit.
9.8.2. Removing the Seat side unit right
1. Proceed the procedures of Removing the Seat side unit.
2. In the position of C, cut the Cable tie and remove the
brown Hose and remove the Seat side unit.
