2.2 TM16 (16-bit Timer)
2-3
2.2 TM16 (16-bit Timer)

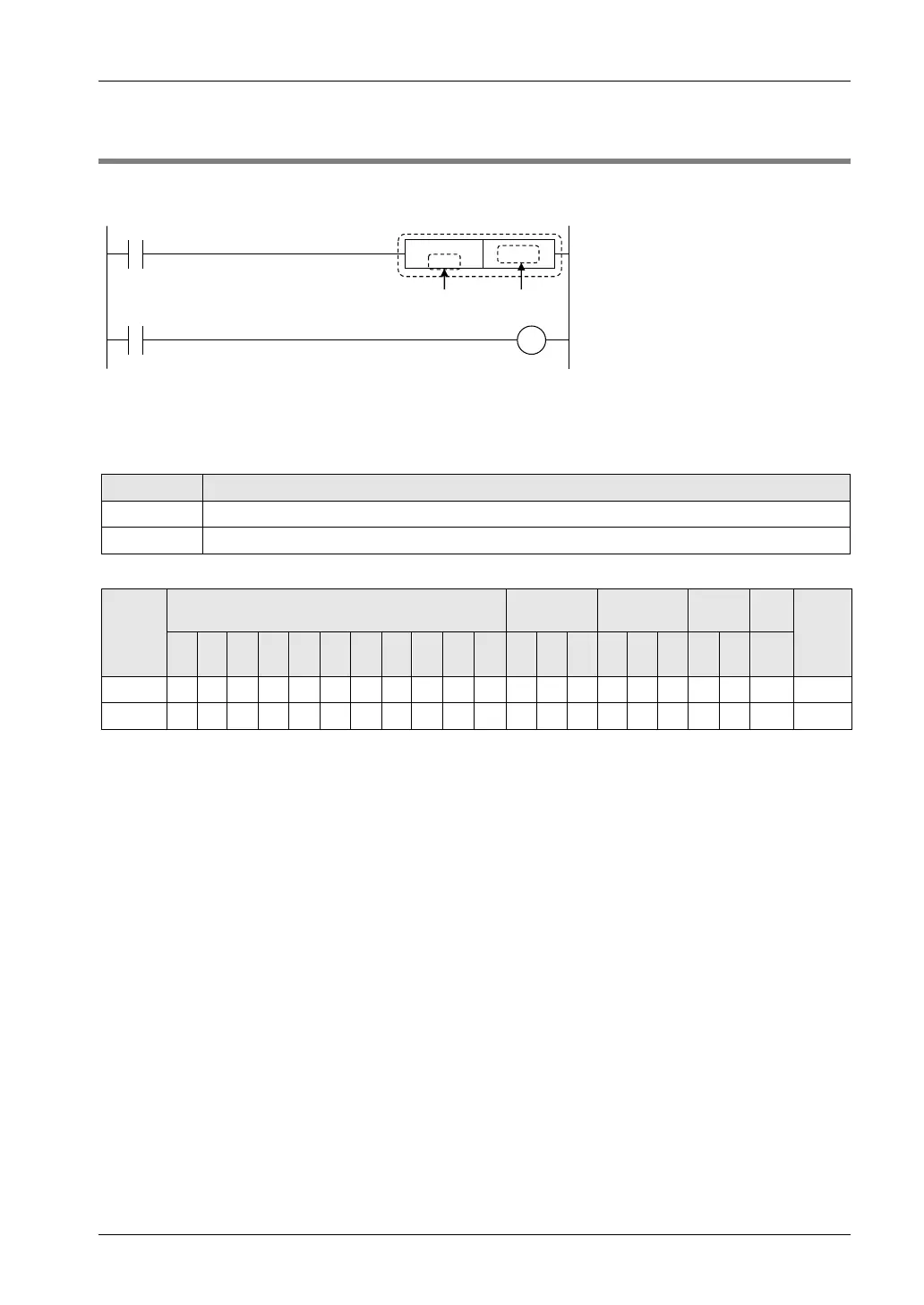

 Instruction format
TM16X
5
U30
n S
R0
T5 Y111
 Operation unit (i)
There is no operation unit.
 List of operands
Operand
Description
n
Timer number (Settalbe range: 0 to 4095 *For the default memory configuration)
S
Timer setting value (Settable range: U0 to U65535)
 Available devices (●: Available)
Operand
16-bit device
32-bit device
Integer
Real
number
String
Index
modifier
*1
WX
WY
WR
WL
WS
SD
DT
LD
UM
WI
WO
TS
CS
TE
CE
IX
K
U
H
SF
DF
" "
n
●
●
S
●
●
●
●
●
●
●
●
*1：Only 16-bit deivces, 32-bit devices, and integer constants can be modified. (Real number constants and character
constants cannot be specified.)
 Outline of operation
 This instruction is different from TIM instruction. The range settable by the setting value [S] is
U0 to U65535.
 The timer is a non-hold type that is reset when the power supply is turned off or the RUN
mode is switched to the PROG. mode.
 When the execution condition is ON, subtraction is carried out for the specified time [S], and
when the elapsed value reaches U0, the timer contact [Tn] (n is a timer contact number)
turns ON.
 When the execution condition turns OFF during the subtraction operation, the elapsed value
is reset (cleared to zero).
 It is also possible to describe OT instruction right after the timer coil.
