Panasonic FP7 Series Additional Functions Manual

3.3 BKMV16 (Block Move (32-bit Data to 16-bit Data))
3-5

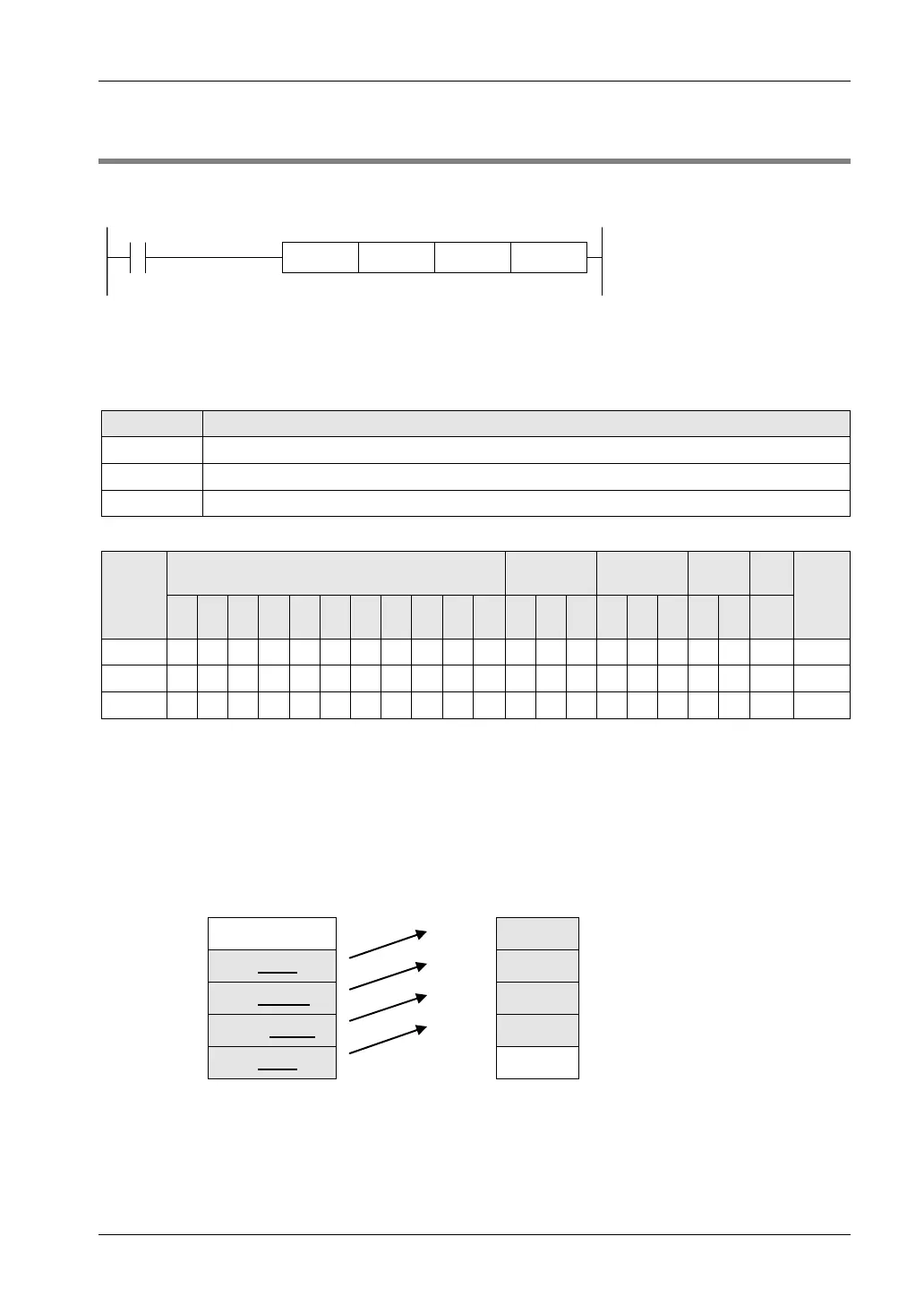

3.3 BKMV16 (Block Move (32-bit Data to 16-bit Data))
 Instruction format
BKMV16 CS3 DT10
S2 D
R0
CS1
S1
 Operation unit (●: Available)
There is no operation unit.
 List of operands
Operand
Description
S1
The starting device address of source data
S2
The ending device address of source data
D
Destination starting device address to transfer data
 Available devices (●: Available)
Operand
16-bit device
32-bit device
Integer
Real
number
String
Index
modifier
WX
WY
WR
WL
WS
SD
DT
LD
UM
WI
WO
TS
CS
TE
CE
IX
K
U
H
SF
DF
" "
S1
●
●
●
●
S2
●
●
●
●
D
●
●
●
●
●
●
●
 Outline of operation
 Transfers only the lower one word of data in the area specified by [S1] - [S2] to an area after
the area specified by [D] all at once.
 Processing
Example 1) When specifying TS for [S1] and [S2], and DT for [D]
(transferring only lower one word)
S1: TS1, S2: TS4, D: DT10
TS0
11223344h
DT10
7788h
TS1
00007788h
DT11
AABBh
TS2
0000AABBh
DT12
EEFFh
TS3
CCDDEEFFh
DT13
5678h
TS4
12345678h
DT14
AAAAh
