Panasonic HC-V10 - Preparation; Names and Functions of Main Parts

10
VQT4C38
1 LCD monitor
≥ It can open up to 90o.
≥ It can rotate up to 180o A towards the lens
or 90o B towards the opposite direction.
2 Intelligent auto/Manual button
[iA/MANUAL] (l 26, 48)
3 Optical image stabilizer button
[ O.I.S.] (l 38)
4 Power button [ ] (l 19)
5 Delete button [ ] (l 57)
6 Audio-video output terminal [A/V]
(l 61, 66)
≥ Use the AV cable (only the supplied
cable).
7 USB terminal [ ] (l 14, 75)
8 Access lamp [ACCESS] (l 18)
9 SD card slot (l 18)
10 SD card cover [SD CARD] (l 18)
Preparation
Names and Functions of Main Parts

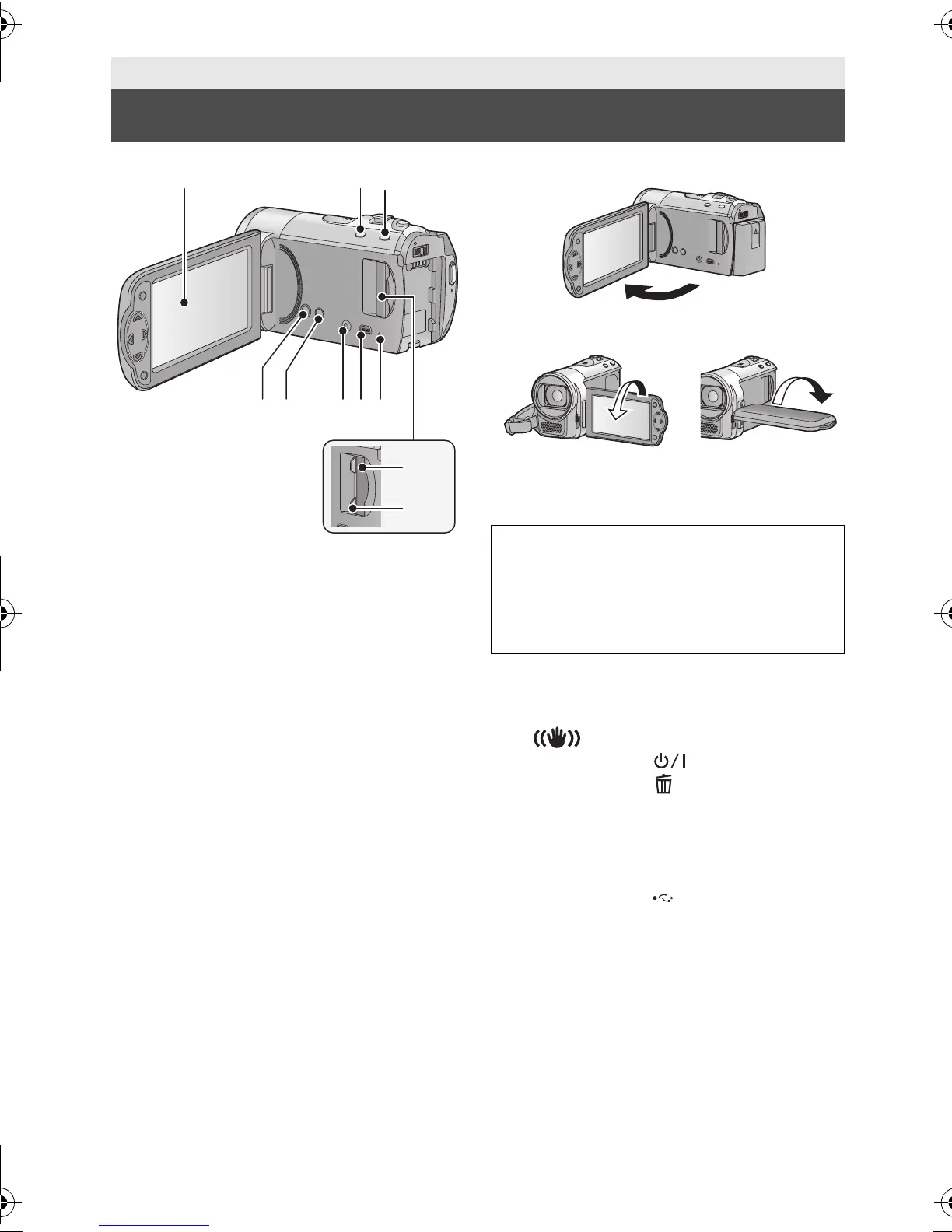

1 23
45 678
10
9
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the LCD monitor screen.
However, this is not a malfunction and
does not affect the recorded picture.

