Panasonic HDC-SD40 - Parts identification and handling

17
VQT3J95

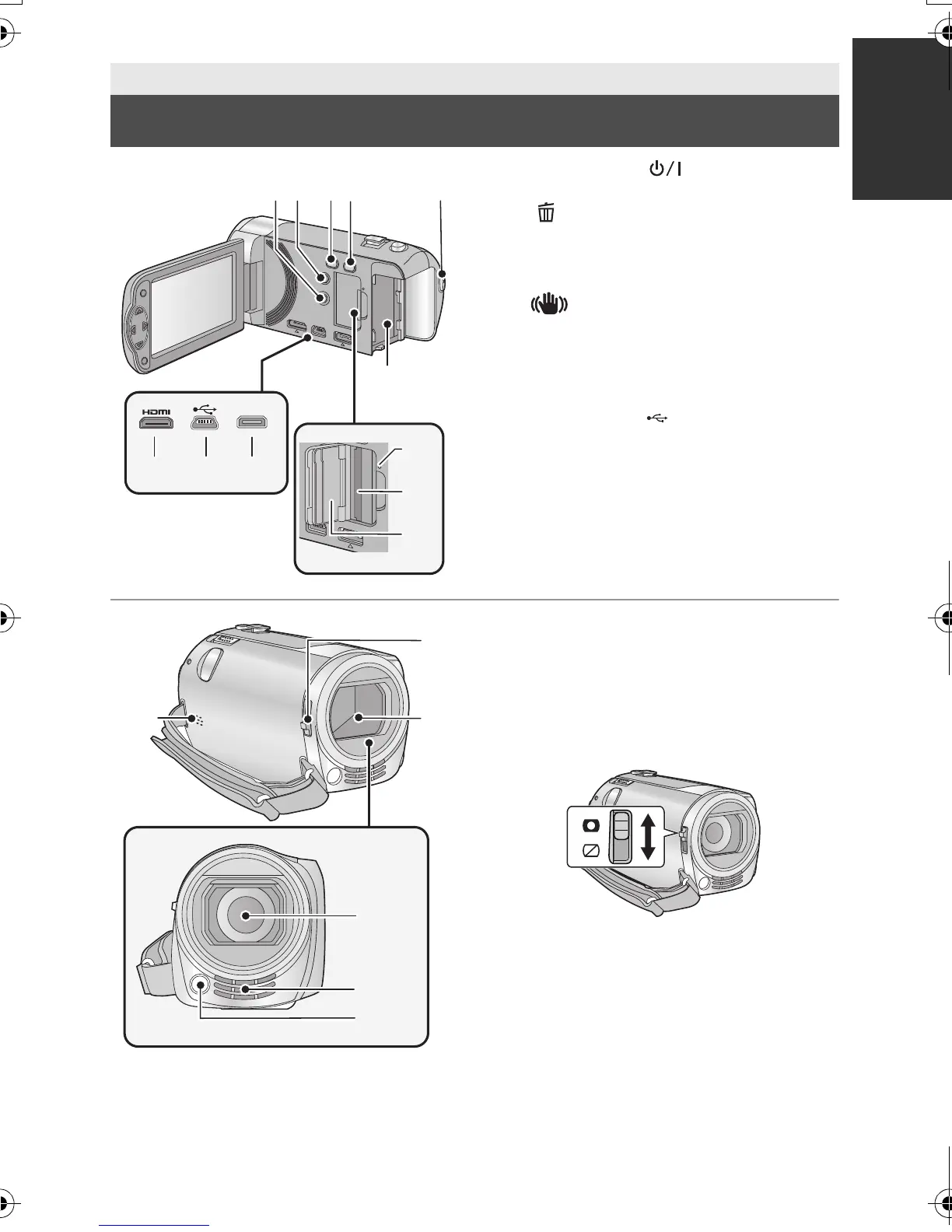

1 Power button [ ] (l 26)
2 Delete/Video light button
[ /LIGHT] (l 48, 69)
3 Intelligent auto/Manual button
[iA/MANUAL] (l 34, 59)
4 Optical image stabilizer button
[ O.I.S.] (l 48)
5 Recording start/stop button (l 31)
6 Battery holder (l 20)
7 HDMI mini connector [HDMI]
(l 74, 78)
8 USB terminal [ ] (l 82, 94)
9 AV multi connector (l 74, 85)
≥ Use the AV multi cable (only the supplied
cable).
10 Access lamp [ACCESS] (l 25)
11 Card slot (l 25)
12 SD card cover (l 25)
13 Speaker
14 Lens cover opening/closing switch
When not using the unit, close the lens
cover to protect the lens.
≥ Slide the opening/closing switch to open/
close the cover.
15 Lens cover
16 Lens
17 Internal stereo microphones
18 Video light (l 48)
Preparation
Parts identification and handling
12 34
6
5
AV MULTI
12
7 8 9
10
11
13
16
18
15
14
17
