2.7 Connection of 2.4 GHz Portable Stations
102 Installation Manual
Connecting the CS

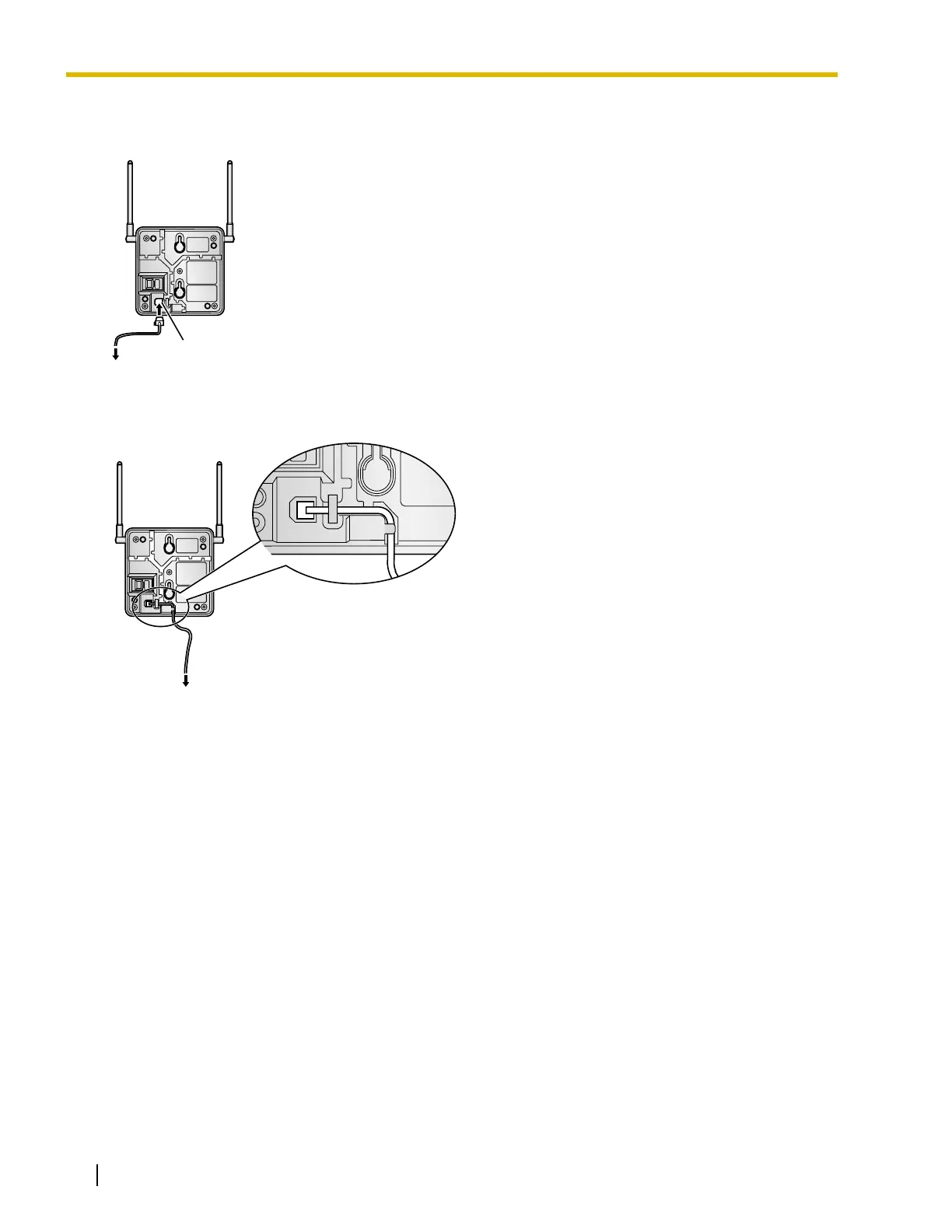

1. Connect the cable from a Super Hybrid Port or the HLC4/DLC4/DLC8 card to the CS.
2. Pass the cable through the groove of the CS (in any direction depending on your preference).
Modular
To a Super Hybrid Port,
or HLC4/DLC4/DLC8 card
To a Super Hybrid Port,
or HLC4/DLC4/DLC8 card
TO MAIN UNIT
/ PABX
