Panasonic KX-TDA50

1.2 Basic System Construction
Installation Manual 19

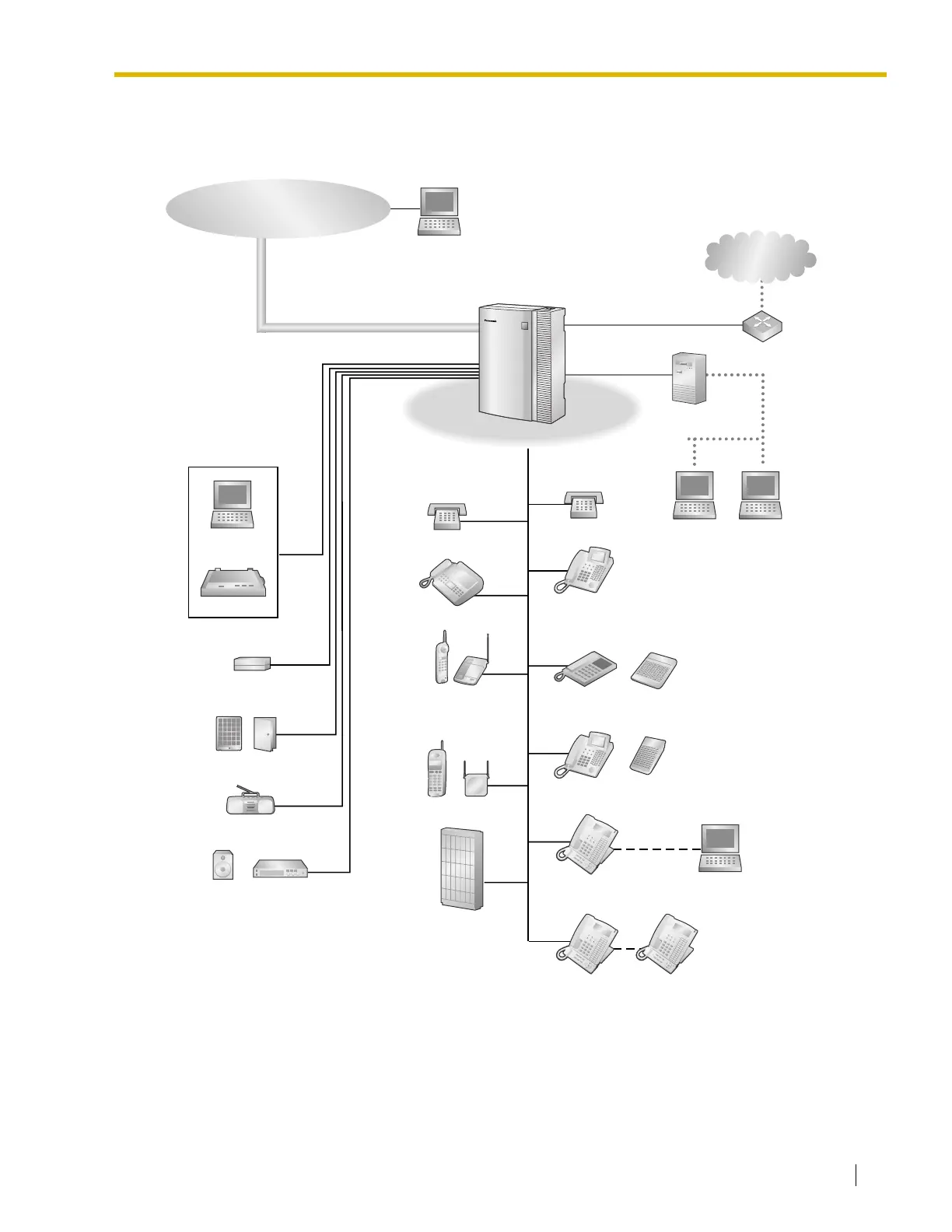

1.2.2 System Connection Diagram
Doorphone & Door Opener
BGM/Music On Hold (MOH)
Pager/
Speaker
Voice Processing
System
KX-T7636/
KX-T7633
Remote PC
PC
Printer
CO (Telephone Company) Lines
Analog
Hybrid IP-PBX
SLT
CSPS
Wireless Phone
Fax Machine
PC
USB
KX-T7600 DPT KX-T7600 DPT
APT DSS Console
DSS Console
DPT
Amplifier
SLT
DPT
Router
Private
IP Network
CTI Server
PC PC
External Sensor/
External Relay Device
