Panasonic KX-TG1233BXT

Items Check
Point
Procedure Check or
Replace Parts
(N)* Timing Confirmation - Follow steps 1 to 6 of (I).
7.Confirm that the Timing accuracy is < ± 2.0ppm.
IC2, IC4, R137,
R125, C153, L8,
L5, L10, L9,
C140, C141,
DA1, C142,
C143, C144, L3,
L4, R118, R119,
L12, C30, IC11,
R10, R11, C28,
C26, C147,
C151, C157,
R123, C158,
R128, R129,
C159, C160,
R131, R130,
C161, C162,
R132, C164,
C136, R134,
R117, R127,
C156, C154,
C155, R135,
R136

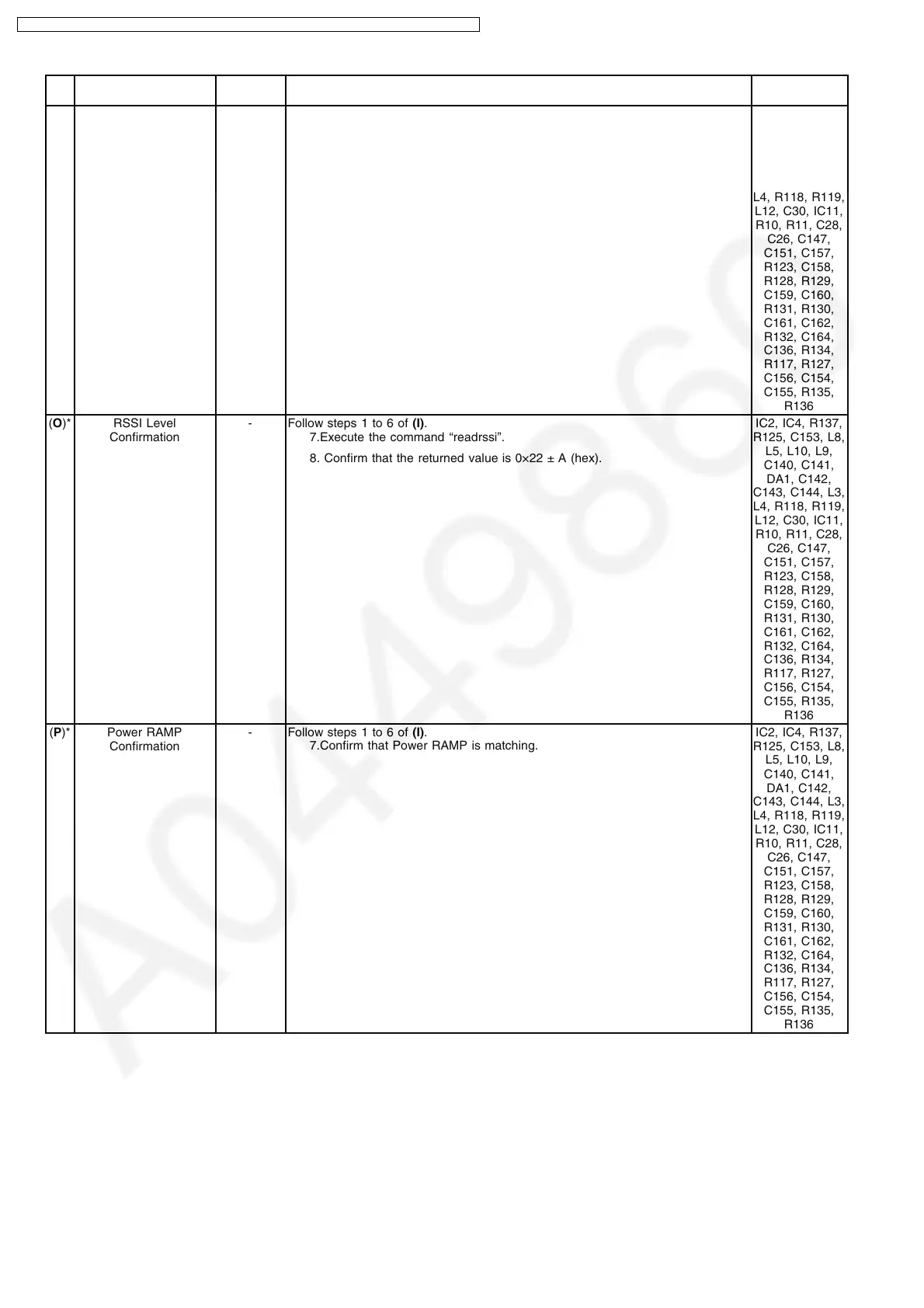

(O)* RSSI Level
Confirmation
- Follow steps 1 to 6 of (I).
7.Execute the command “readrssi”.
8. Confirm that the returned value is 0×22 ± A (hex).
IC2, IC4, R137,
R125, C153, L8,
L5, L10, L9,
C140, C141,
DA1, C142,
C143, C144, L3,
L4, R118, R119,
L12, C30, IC11,
R10, R11, C28,
C26, C147,
C151, C157,
R123, C158,
R128, R129,
C159, C160,
R131, R130,
C161, C162,
R132, C164,
C136, R134,
R117, R127,
C156, C154,
C155, R135,
R136
(P)* Power RAMP
Confirmation
- Follow steps 1 to 6 of (I).
7.Confirm that Power RAMP is matching.
IC2, IC4, R137,
R125, C153, L8,
L5, L10, L9,
C140, C141,
DA1, C142,
C143, C144, L3,
L4, R118, R119,
L12, C30, IC11,
R10, R11, C28,
C26, C147,
C151, C157,
R123, C158,
R128, R129,
C159, C160,
R131, R130,
C161, C162,
R132, C164,
C136, R134,
R117, R127,
C156, C154,
C155, R135,
R136
30
KX-TG1233BXS / KX-TG1233BXT / KX-TCA122CXS / KX-TCA122CXT / KX-TCA121CXS / KX-TCA121CXT
